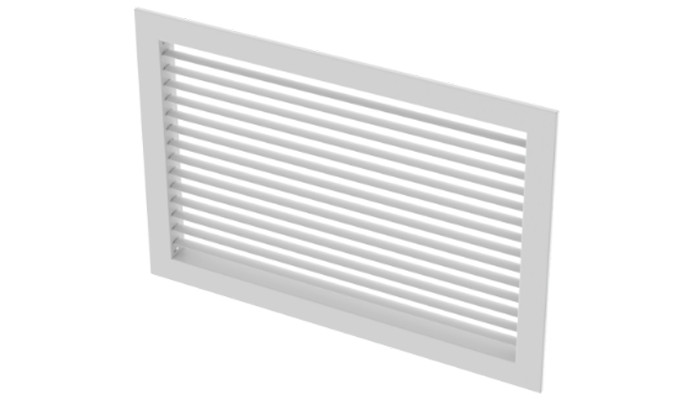

AVS50 Horizontal Face Bars, Steel Margin

Grilles & Registers

The aerodynamically-shaped horizontal blades of AVS50 are made of aluminum and can be adjusted individually according to your necessity. If you are looking for a tool to change air flow direction in one plane, this single deflection grille is the best choice for you.

Comes with countersunk screw holes that lend it a clean appearance
The blades are placed on 3/4" spaced centers
Steel margin of 20-gauge gives it a robust body

AVS50 Horizontal Face Bars, Steel Margin

Product Application

Don’t you hate it when the air distribution systems in your offices emit a monotone of humming? To counter this, we’ve expertly designed the AVS50 grilles to provide fantastic performance. They are equipped with aerofoil blades (not found in other run-of-the mill grilles) which reduce rattling and supply air into an occupied space noiselessly. They can be used in a myriad of building types and commercial applications.

Features

Comes with steel margins with extruded aluminum blades
Adjacent margins are full sized for extra strength
Surface mount (SF) border style
Available finish options include White (WH), Mill (ML), Aluminum Paint (AP), Off-White (OW), Flat Black (FB), and Match Paint (MP)
The grille is tested in accordance with ANSI/ASHRAE Standard 70-2006

They have individually adjustable blades
Product dimensions are factory adjusted to ensure a correct fit
The standard finish is White (WH) electrocoat in an anodic acrylic paint, baked at 315°F for 30 minutes with a pencil hardness of HB to H

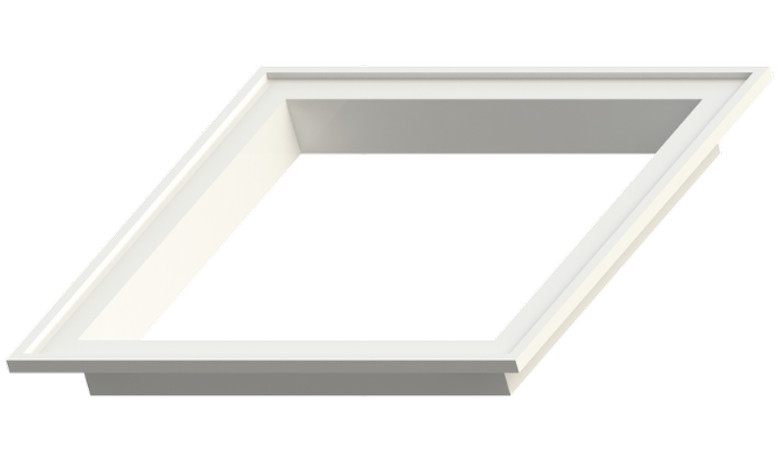

Available accessories include optional aluminum (AOBD) or steel (SOBD) opposed blade damper with screwdriver operator, insect screen of 1/16” mesh (SM), debris screen of 1/4” mesh (LM), earthquake tabs (ST), and aluminum or steel mounting frame (45)
