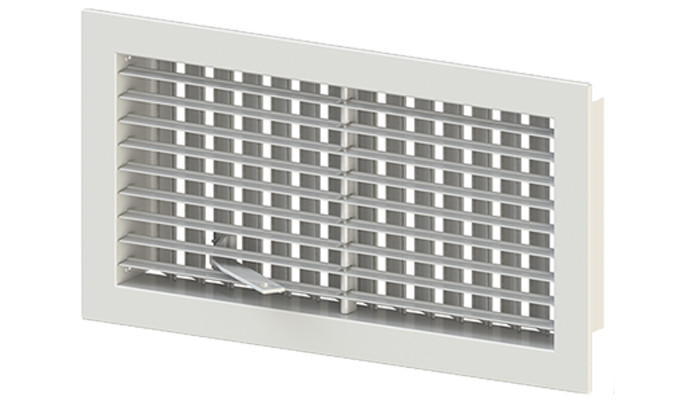

TIG Steel Frame, Aluminum Bars

Specialty Products

With a 20-gauge steel frame and steel rear blades, the TIG grilles have front blades of extruded aluminum construction, making them the best choice for industrial and commercial environments that require frequent changes in airflow pattern.

Offers two sets of air pattern blades that provide double deflection air patterns
Front blades are individually adjustable and spaced on 3/4" centers
Rear blades are gang operated and include an adjustment handle

TIG Steel Frame, Aluminum Bars

Product Application

If you need to accommodate air distribution for large volumes of air in your commercial spaces, then a double-deflection grille is what you need. Our model TIG is a commercial and industrial supply grille constructed with individually adjustable front blades and gang-operated rear blades. It is engineered to offer flexibility for your facility’s changing air pattern requirements. The front blades can be adjusted horizontally or vertically and provide exceptional directional control. It can easily be installed in places such as factories and other large industrial plants for efficient air distribution.

Features

Comes with individually adjustable front blades. Features a steel frame with aluminum front blades
Standard sizes are from 10”x6” to 40”x36” in 2” increments of width and height. Multiple sections furnished for sizes greater than maximum
The standard finish is White (WH)
The unit has a minimum 20-gauge steel border that is 1-1/4” wide and assembled with welds at all four corners

Countersunk screw holes in the frame for a neat appearance
The front blades are fully adjustable and available in either horizontal or vertical orientation
Pole operator handle included for adjusting rear blades
