AV54 Horizontal Face Bars Vertical Rear Bars

Grilles & Registers

The aerodynamically-shaped blades of AV54 are individually adjustable and are positioned on 3/4" spaced centers. It is furnished with extruded aluminum margin on all sides with mitered corners and offer countersunk screw holes for a neat appearance.

Constructed with an extruded aluminum margin
Optional volume adjustment damper can be operated from the face of the grille
White (WH) electrocoat is the standard finish available

AV54 Horizontal Face Bars Vertical Rear Bars

Product Application

Easy to install and easy to use, our AV54 grilles set the bar high in the industry. They sport a sleek design and deliver optimum performance by reducing noise in your supply vents. With aerodynamic horizontal and vertical blades, these grilles offer maximum air pattern flexibility and ensure top-notch comfort for a range of room applications.

Features

The grilles offer single and double deflection with 3/4” blade spacing
Available in sizes ranging from 6"x4" to 48"x48" in 1" increments. Larger sizes will ship in multiple sections with assembly hardware for field assembly
The standard finish is White (WH) electrocoat in an anodic acrylic paint, baked at 315°F for 30 minutes with a pencil hardness of HB to H

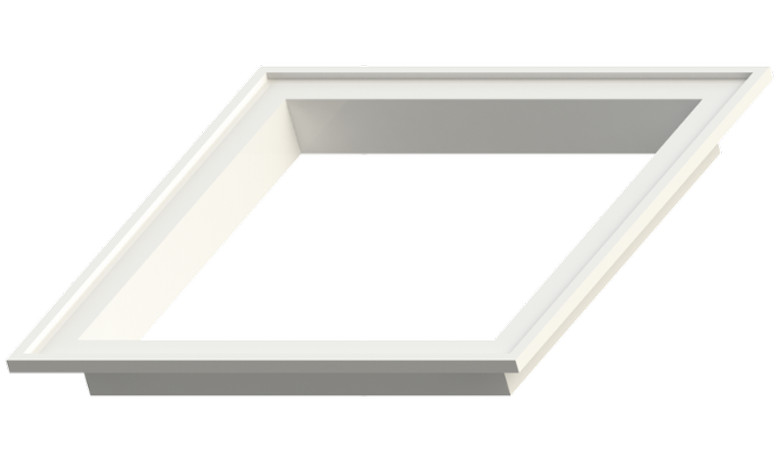

Available accessories include optional aluminum (AOBD) or steel (SOBD) opposed blade damper with screwdriver operator, insect screen of 1/16” mesh (SM), debris screen of 1/4” mesh (LM), earthquake tabs (ST) and aluminum or steel mounting frame (45)

Product dimensions are factory adjusted to ensure a correct fit
Surface mount (SF) border style
Available finish options include White (WH), Mill (ML), Aluminum Paint (AP), Off-White (OW), Flat Black (FB), and Match Paint (MP)
