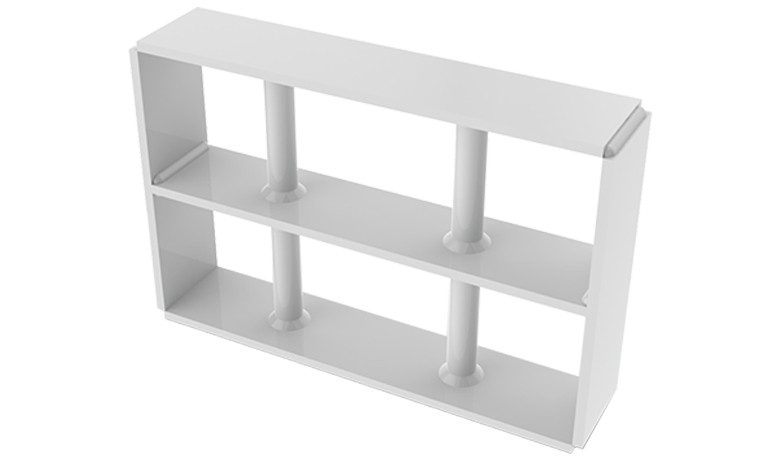

SDBF Duct Bars With Frame

Security Grilles

SDBF Duct Bars are designed with a sturdy frame and are perfect for use in wall openings to separate secure areas from the non-secure areas, and can also be used on roof barriers. These security barriers can also be used to curb unsolicited movement through the duct work.

Constructed with 3/4” diameter round solid steel vertical bars and 2-1/2"x1/4” steel horizontal flat bars with a maximum of 6” centers
All-welded and steel construction ensures the reliability of the product
White (WH) electrocoat finish protects the duct barrier from wear

SDBF Duct Bars With Frame

Product Application

Looking for a solution for wall openings that will help you separate secure areas from non-secure ones? Our SDBF security duct barrier is the right solution for you. In addition to separating secure and non-secure areas, this duct barrier also restricts unwanted passage through the ductworks in your facility. It is reliable and provides maximum protection in facilities like psychiatric hospitals and correctional facilities.

Features

The horizontal bars are flat steel bars, with sizes of 2-1/2”x1/4”, on 6” centers
The bars are welded to a 2-1/2”x1/4” steel frame
Size ranges from 6”x4” to 30”x30”. Product available in 2” increments

The vertical bars are round bars with a diameter of 3/4", on 6” centers
Available finish options include WH - White and ML - Mill
The electrocoat finish is in an anodic acrylic paint, baked at 315°F for 30 minutes
