GJ Jet-Flo® GJ, AGJ High Capacity Diffuser

Specialty Products

Large areas like theaters, factories, and shopping centers require long or short throws. GJ Jet-Flo®, AGJ High Capacity Diffusers work well in these environments with an open design that allows methodical air distribution of 200 to 12,000 CFM at low pressure loss.

Air flow patterns can be fine-tuned in the horizontal and vertical planes for maximum flexibility
Can be placed on ductwork or sidewalls to create horizontal air distribution
To offer an increased throw, the air streams are converged to create a straight pattern, reducing the need for extensive ductwork

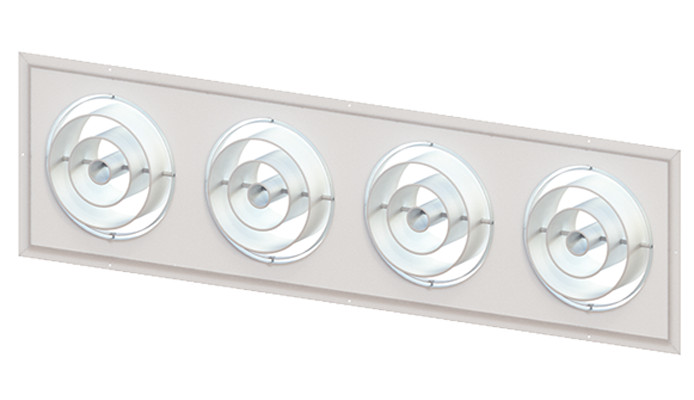

GJ Jet-Flo® GJ, AGJ High Capacity Diffuser

Product Application

If your facility is a large enclosed space, then it would require air to be thrown at longer distances in various directions for the occupants’ comfort. GJ Jet-Flo®, our high-capacity diffuser, is capable of producing flexible air patterns for both horizontal and vertical air distribution. Throw can be increased by converging the air streams into a straight pattern and larger areas can be covered by adjusting the elements up to 30º from any plane perpendicular to the diffuser face into diverging air streams. They are best suited for theatres, supermarkets, and convention halls.

Features

Heavy-duty overlap margin, frame, and plate furnished with countersunk screw holes and mounting screws
Five-inch deep inner deflection rings for positive air deflection control direction 30º from any plane perpendicular to the diffuser face
5 1/4” deep deflection rings for positive air deflection of 30° in any direction

Aluminum construction
The finish is a White (WH) electrocoat. The finish is an anodic acrylic paint, baked at 315ºF for 30 minutes with a pencil hardness of HB to H
