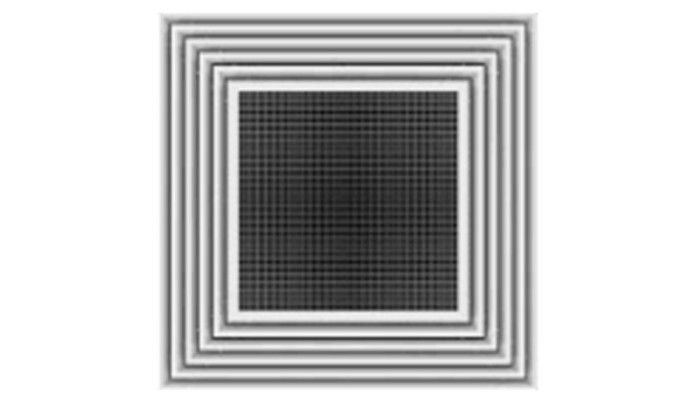

DSR Concentric Diffuser

Square/ Round Diffusers

This diffuser is specially designed to work alongside rooftop units and other unitary air conditioners and features anti-smudge design and built-in hanging support. The core comes with concealed fasteners, making it easily removable and can be installed in T-bar ceilings and exposed ducts.

Return is cubed, eggcrate core (1/2”x1/2”x1/2”) for minimal pressure loss
Performance tested in accordance with the ANSI/ASHRAE Standard 70-2006
Provides four-way horizontal airflow with low noise and low pressure

DSR Concentric Diffuser

Product Application

Eliminate extensive ductwork in your facility with the help of our concentric diffuser designed for supply and return applications. Model DSR is designed to supply conditioned air to an occupied space and return air back through the same diffuser. It is a single point air distribution system that can handle large volumes of air with low pressure and less noise generation. It is well-suited for large spaces like commercial buildings, warehouses, and retail stores.

Features

Designed and built specifically for applications requiring a supply diffuser with integral return or exhaust
Available finish options are Aluminum Paint (AP), Off-White (OW), Flat Black (FB) and Match Paint (MP)
