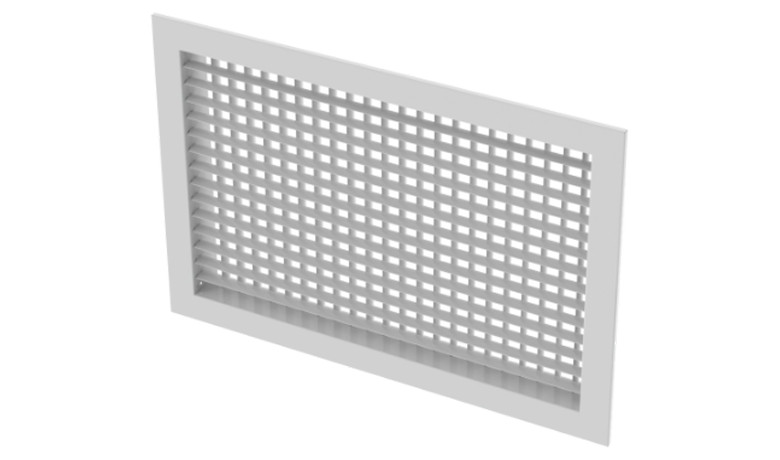

Product Image_AVS60

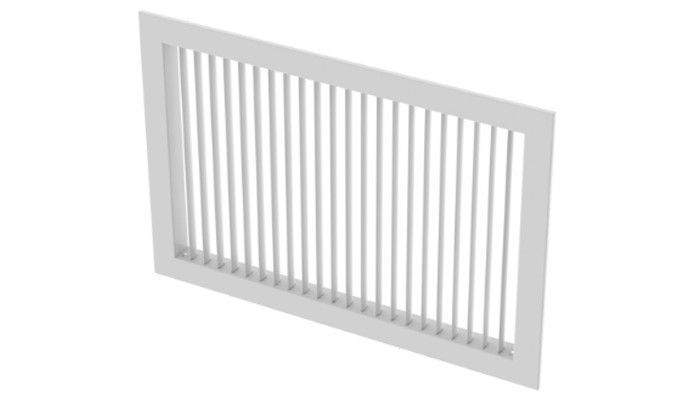

AVS60 Vertical Face Bars, Steel Margin

Grilles & Registers

The blades of the AVS60 are built with heavily extruded aluminum blades and provide single and double deflection with 3/4" blade spacing. It is the best choice for your facility as it is easy to maintain and offers quiet operation.

AVS supply grilles and registers have steel margins with extruded aluminum blades
Available accessories include aluminum or steel mounting frame
Features single deflection vertical blades

AVS60 Vertical Face Bars, Steel Margin

Product Application

Reduce pressure drop and the creation of noisy environment by equipping your facility with our model AVS60 supply grille with vertical face bars. The distinct aerodynamic design of the blade prevents the development of turbulence, increasing the comfort of the occupants. Additionally, the airfoil design provides an aesthetically appealing appearance to this model. It is best suited for spaces that require a quiet environment like offices, classrooms, and libraries.

Product Application

Features

It is available in a surface mount border style
Features individually adjustable, aerodynamically-shaped blades
Furnished with insect screen of 1/16" mesh and debris screen of 1/4" mesh
Product dimensions are factory adjusted to ensure a correct fit
Optional aluminum or steel opposed blade damper comes with screwdriver operator

Aluminum construction
Finish shall be standard White (WH) electrocoat finish
Adjacent margins are full sized for extra strength
Come with earthquake tabs

Benefits

Robust Construction

Robust Construction

The AVS60 is constructed with heavy duty 20-gauge steel margins which ensure high-efficiency and endurance.

Premier Performance

Premier Performance

Tested in accordance with ANSI/ASHRAE Standard 70-2006, the AVS60 guarantees industry leading ventilation.

Greater Flexibility

Greater Flexibility

Choose units from sizes 6”x4” to 48”x48” in 1” increments; we also build larger sizes in multiple sections.

Technical Resources

Document Name

Description

Language

Resource Type

Data Sheet

RG1~AV50AV60_FEA4_09 (English)

Supply Aluminum, Aerovane - Airfoil Supply Grilles, AV/AV - Features

English Data Sheet

Data Sheet

RG1~AV50AV60_DIM4_09 (English)

AVS54, AV50, AV54, AVS50, AV60, AVS64, AVS60, AV64 - Product Dimensions

English Data Sheet

Engineering Guide

RG1~AV50AV60_ENG4_09 (English)

AVS54, AV50, AV54, AVS50, AV60, AVS64, AVS60, AV64 - Engineering Data

English Engineering Guide

Specification Guide

RG1~AV50AV60_SPC4_09 (English)

Supply Aluminum, Aerovane - AV/AVS - Specification

English Specification Guide

Submittal

SD-2280 (English)

Grilles & Registers - AVS50/ASV60 AeroFoil Grille/Register Steel Margin Single Deflection 3/4" Blade Spacing - Submittal

English Submittal

Specification Guide

Aerovane (English)

AVS54, AV50, AV54, AVS50, AV60, AVS64, AVS60, AV64 - Specifications Text File

English Specification Guide
