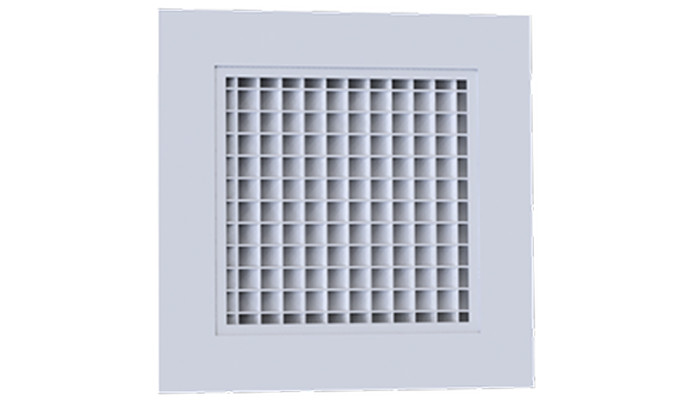

VPER 1/2x1/2x1/2 with 45° Deflection

Grilles & Registers

The all-aluminum constructed VPER ensures that the objects behind the grille are concealed, without the need for an additional light shield. It features a 45-degree deflection eggcrate core that prevents it from being see-through.

Designed for use with standard T-bars
Margin provides a 1-1/4” wide border with mitered corners
Durable aluminum construction and a free area of at least 92%

VPER 1/2x1/2x1/2 with 45° Deflection

Product Application

An eggcrate grille that is placed away from the occupants’ line of sight and conceals the duct work, cables and other objects behind the grille is now available at your fingertips. VPER features an aesthetically pleasing design that eliminates the need for additional light shield for visual privacy. It offers a large free area that results in low pressure drop and reduced sound generation. It is suitable for ceiling applications in MRI rooms.

Features

Available in four sizes only: 10"x10", 10"x22", 22"x22", and 22"x46"
It features an extruded aluminum margin
Suitable for lay-in applications

Construction shall consist of a 45° deflection 1/2”x1/2”x1/2” aluminum core
Finish shall be White (WH), baked at 315°F for 25 minutes
The manufacturer shall provide published performance data tested in accordance with ANSI/ASHRAE 70-2006
