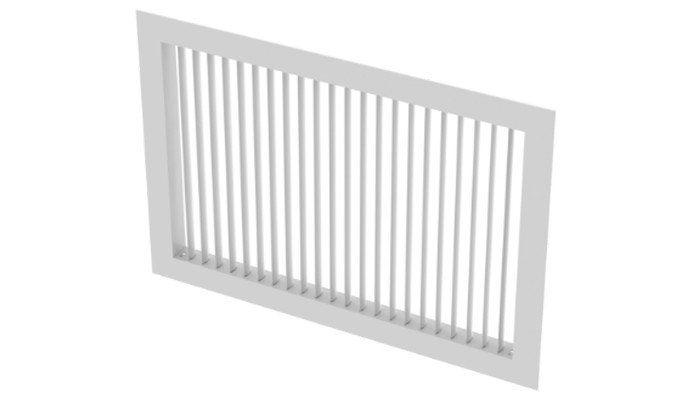

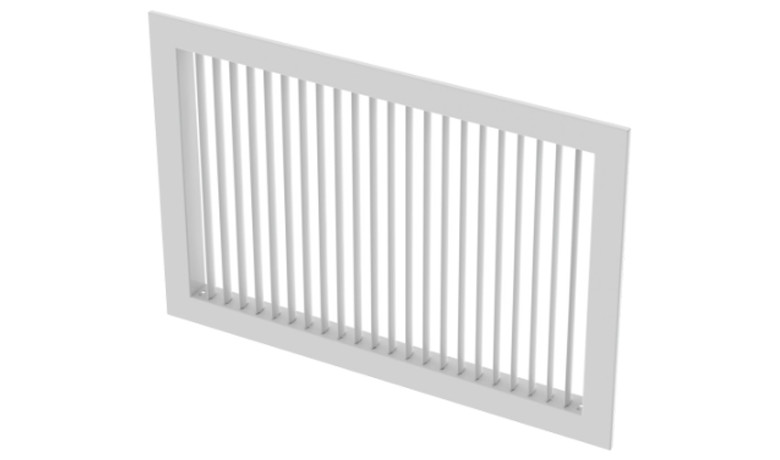

AV60 Vertical Face Bars

Grilles & Registers

The aerodynamically-shaped blades of the model AV60 can be adjusted individually in a single plane. With an all-aluminum construction, this cost-effective solution is a perfect fit for your facility. This model has been tested in accordance with ANSI/ASHRAE Standard 70-2006 to ensure working efficiency.

1/4" debris mesh available as an accessory
Countersunk screw holes provide a clean face
Individually-adjustable blades are placed on 3/4" centers

AV60 Vertical Face Bars

Product Application

Model AV60 is an industry-leading solution that offers optimum performance and quiet operation for your facilities. It is a smart choice for spaces that require quiet environment like offices, classrooms, and libraries. The grille features a sleek design with individually adjustable and aerodynamically-shaped blades. This smart design ensures minimal turbulence, enhancing the comfort levels in the occupied zone.

Features

The grilles offer single deflection with vertical blades
Available in sizes ranging from 6”x4” to 48”x48” in 1” increments; larger sizes will ship in multiple sections with assembly hardware for field assembly
Insect screen of 1/16” mesh available as accessory
Offers optional earthquake tabs
The grille shall be tested in accordance with ANSI/ASHRAE Standard 70-2006
Optional volume adjustment damper shall be operable from the face of the grille and also constructed of heavy gauge extruded aluminum

Adjacent margins are full sized for extra strength
Surface mount border style
Optional debris screen of 1/4” mesh available
The White (WH) electrocoat finish comes in an anodic acrylic paint, baked at 315°F for 30 minutes with a pencil hardness of HB to H
Features optional aluminum or steel opposed blade damper with screwdriver operator
