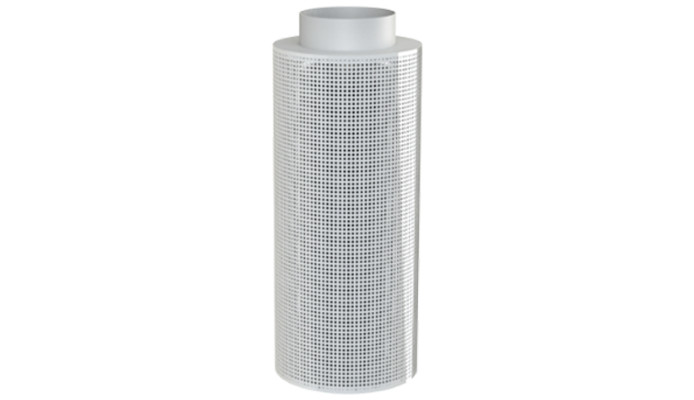

DS360 Circular Displacement Diffuser, 360°

Displacement Diffusers

This is a self-contained circular displacement diffuser that is best suited for areas where large volumes of air should be supplied at a low velocity. DS360 improves the air quality by removing contaminants, which is achieved through minimal mixing of air.

Suitable for maximum ventilation in floor mounted applications
Provides a total 360-degree air distribution discharge pattern
Comes with an air volume measurement outlet to facilitate balancing

DS360 Circular Displacement Diffuser, 360°

Product Application

Displacement diffusers are a great enhancement to your traditional HVAC systems. They supply low velocity air across the floor that naturally push clean air to the breathing area. Consequently, contaminated air and heat are flushed out of (and does not re-enter) the space, into return or exhaust grilles. These diffusers are highly effective and are perfect for high-occupancy areas like lobbies, airports and restaurants.

Features

Constructed of galvanized steel and aluminum
Mounting base (MB) and telescopic duct cover (DC) are available as accessories
Unit sizes are available between 10”x25” and 37”x79”
Standard finish is a powdercoat White (WH). Aluminum Paint (AP) and Off-White (OW) finishes are also available

This model can contribute toward achieving LEED EA Credit 1: Optimize Energy Performance; IEQc2: Increased Ventilation; and IEQc7.1: Thermal Comfort - Design
Optional duct cover is available
The product includes air volume measurement outlet to facilitate balancing. K-factor is marked on outlet
