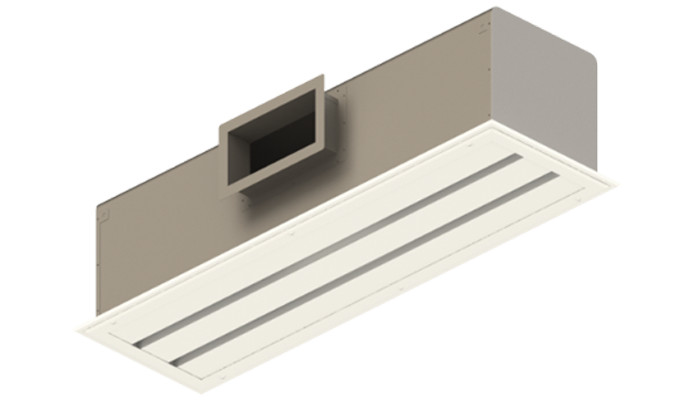

V-Slot Air Curtain Diffuser

Critical Environment

The plenum elbow option allows the V-slot diffusers to be built to suit any critical room requirements. The distinct slot design makes a continuous curtain of air encompassing the operating area and reduces any chance of contaminated air entering the surgical area.

Designed for lay-in T-Bar ceiling systems and surface mount applications to facilitate easy removal and maintenance of units
Inlets are well-equipped with flanges to provide a simple duct connection for the V-slot diffuser to supply a vertical air curtain
Can be purchased in single sections up to 84” or multiple sections for continuous runs and comes with standard earthquake tabs

V-Slot Air Curtain Diffuser

Product Application

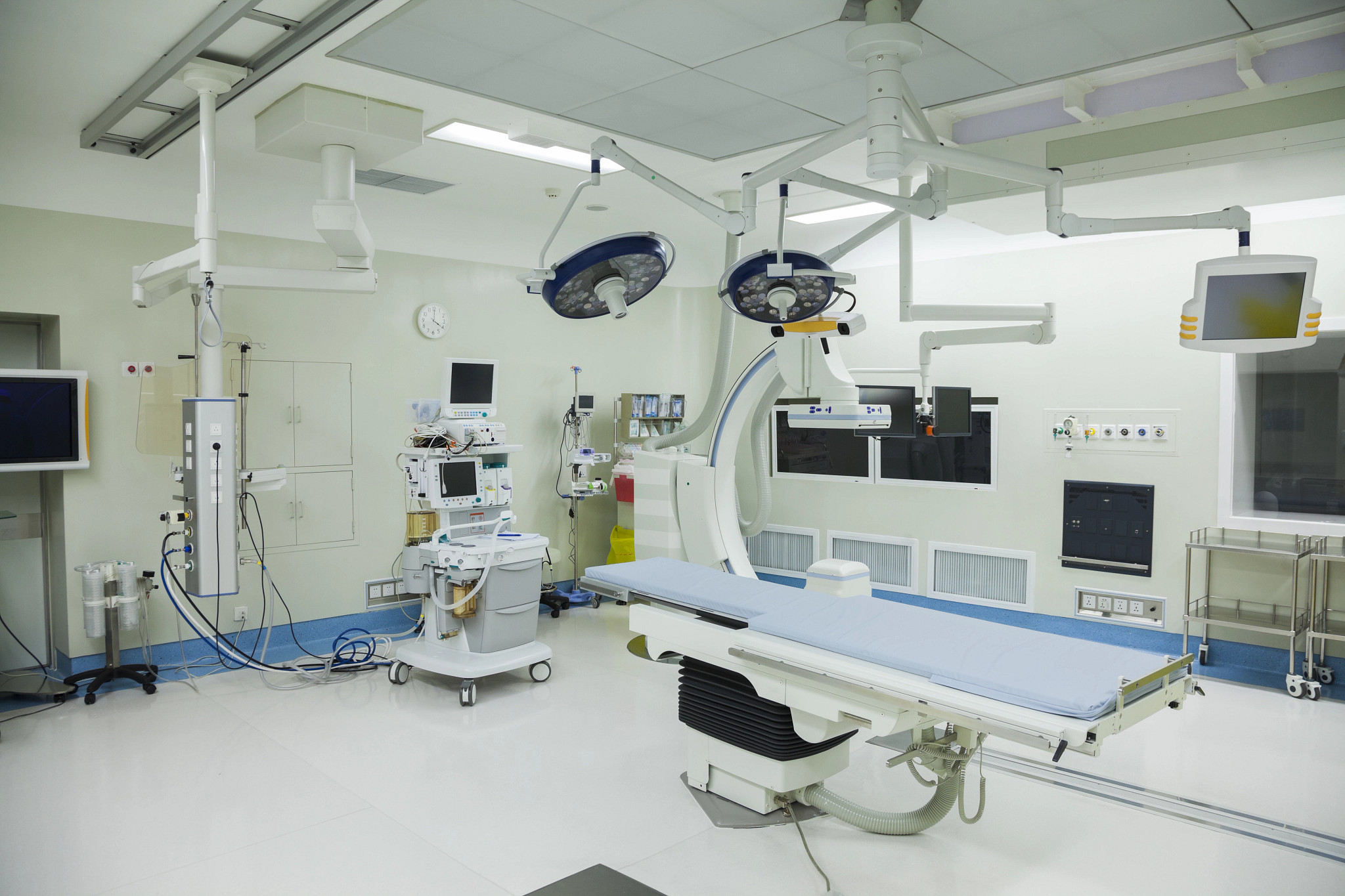

Your operating rooms and surgical zones require a higher degree of air quality compared to other spaces. It is essential to remove impurities from the air in these critical environments to reduce the risk of contamination and infection. Our V-Slot linear diffuser creates a continuous curtain of air helping to isolate clean rooms from other zones. The 304 stainless steel construction provides excellent resistance to corrosion, making it a highly reliable solution for your facilities.

Features

Earthquake tabs come standard
The diffuser is designed for lay-in T-Bar ceiling systems and surface mount applications
Available in single sections up to 84” or multiple sections for continuous runs
Optional plenum elbow accessory allows for continuous plenum designs which reduce the number of inlets required for the perimeter system
The manufacturer shall provide published performance data tested in accordance with ANSI/ASHRAE Standard 70-1991 at isothermal conditions

Face assembly is attached by a quarter-turn stainless steel fastener and secured by safety cables (standard)
Standard construction is 304 stainless steel, 316 stainless steel

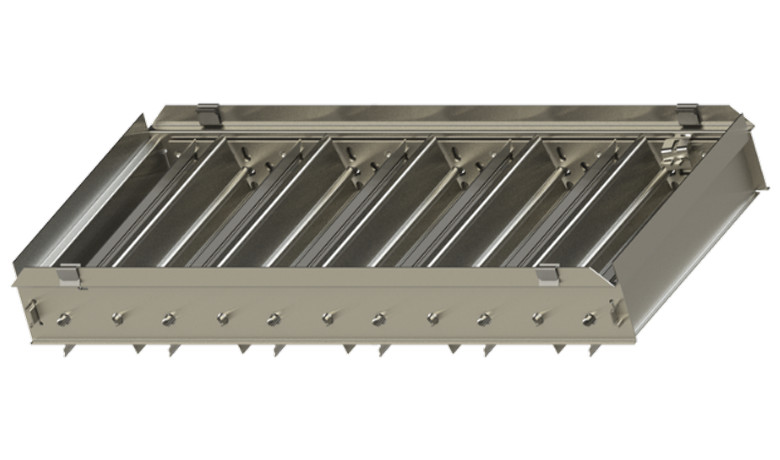

Opposed blade damper available
The standard finish is Satin Polish (SP) for stainless steel models
