LPC Low Profile Fan Powered Constant

Terminal Units

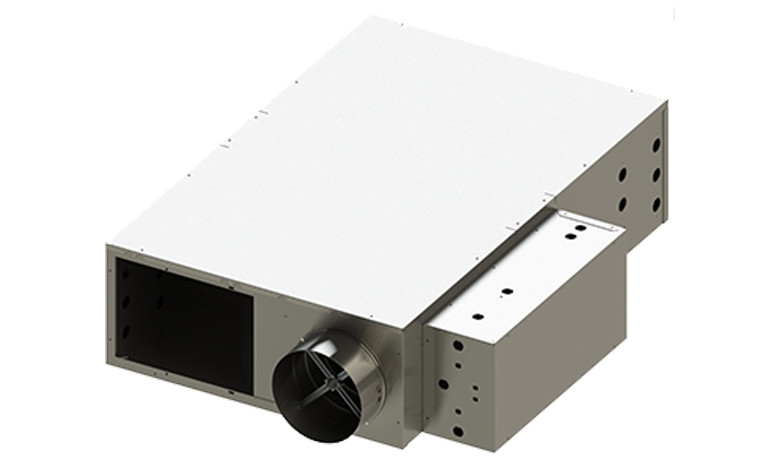

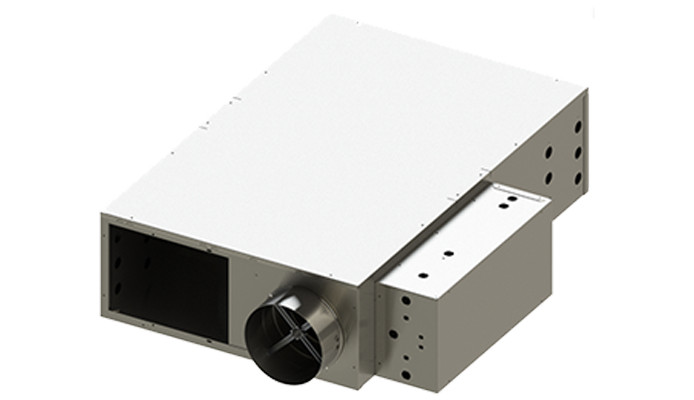

This low-profile terminal unit features a primary inlet and damper assembly, a fan mounted at the discharge of the unit and an induction port in the wall of the casing. The LPC is lined with insulation to provide sound absorption and thermal resistance.

Constant volume fan powered terminal is ideal for reheat applications or where constant air motion is desired
The need for supplemental reheat is reduced or eliminated by pulling warm air from the induction port
The three casing sizes allows a total flow range of 140 to 1600 CFM

LPC Low Profile Fan Powered Constant

Product Application

Don’t you hate it when your VAV systems are needlessly loud? Not to mention, many of them do not maintain a sustained supply of air to the room. LPC are low-profile, fan-powered terminal units that effortlessly deliver a consistent air volume into an occupied space. These units have a sleek but modest build and have an insulated lining that suppresses noise, making them the silent heroes of your ventilation systems. They are perfect for perimeter zone applications like entranceways into buildings, hallways, corridors, and restrooms. LPCs prevent mixing warm air from the ceiling plenum or heated return air with the supply air, which makes them a great addition to cold storage facilities.

Features

ARI-certified performance data
Heavy-duty 20-gauge casing construction
Internally lined casing utilizing 1/2” thick dual-density fiberglass insulation. Insulation meets or exceeds the safety and erosion requirements of standard UL 181 and NFPA 90A
Two-piece damper shaft with Delrin self-lubricating bearings. Shaft features a position indicator for easy identification of damper angle
Optional ECM (Electronically Commutated Motor) is available for casing size 3 and 4

Listed by ETL for safety in accordance with standard UL 1995
Industry-standard round inlet collars sized to accept either flexible or rigid duct
Round damper blade constructed of elastomeric gasket sandwiched between two heavy-gauge galvanized steel plates, resulting in low air leakage
Single-speed, 60 Hz motor (120, 208, 240 and 277 Volt)
