DSQ Rectangular Displacement Diffuser Flush or Wall Mount

Displacement Diffusers

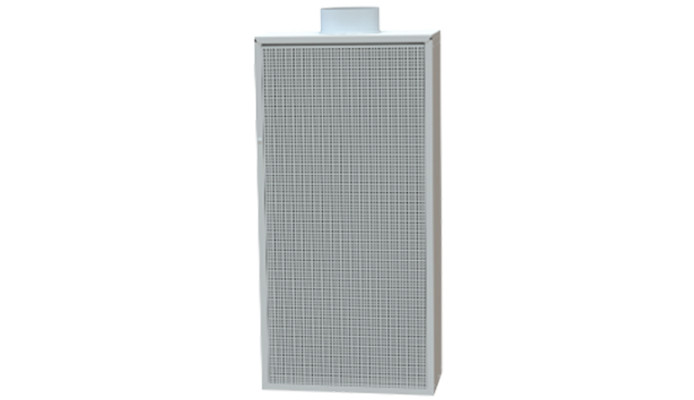

To increase the free area space, model DSQ is designed with a front cover that is entirely perforated. This rectangular displacement diffuser features a curved face that can be positioned against the wall in flush or surface mount orientations.

Constructed with galvanized steel and aluminum to protect from mechanical damages
Can supply large volumes of air even at low velocity
The unit is available in White (default), Off White and Aluminum Paint finishes

DSQ Rectangular Displacement Diffuser Flush or Wall Mount

Product Application

We offer a wide selection of top-quality diffusers, each designed to deliver the best results and long-lasting performance. The DSQ model is no exception. Perfect for room applications that have space constraints, this diffuser can be mounted on walls or pillars and is energy efficient. It provides a steady supply of air at low velocities at one-way patterns. They move large quantities of air which makes them ideal for big enclosed spaces.

Features

Inlets are available between 8”-16” diameters and also in 24”x8” and 32”x10” sizes
It has a one-way air distribution pattern
This diffuser can contribute toward achieving LEED EA Credit 1: Optimize Energy Performance; IEQc2: Increased Ventilation; and IEQc7.1: Thermal Comfort - Design
Tests for sound and pressure are conducted in accordance with ASHRAE 70-2006 at isothermal conditions
Includes air volume measurement outlet to facilitate balancing. K-factor is marked on outlet

Units are available between 24”x24” and 47”x79” sizes
The displacement system promotes air quality by lifting contaminants from the room air to increase indoor quality
Mounting base and telescopic duct cover available as accessories
Tests for AZ are conducted in accordance with Nordtest method of aerodynamic testing and rating of low velocity
