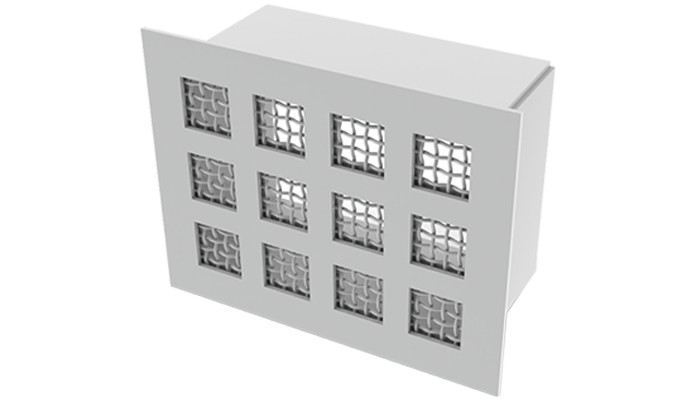

SG100 Grille, Square Perforated Pattern, Mesh Screen
Security Grilles
Designed for maximum-security environments, SG100 grilles are equipped with a wire-mesh screen behind the face plate that ensure no contraband or dangerous items can be hidden. The all-welded construction ensures durability and safety in high-risk environments.
- The face and backer plate are constructed of 3/16” steel with 2”x2” square holes and 1” fret
- Welded between the face and backer plates is a 10-gauge x #2 wire-mesh screen for extra security
- Can be used for either supply or return applications
Product Application
Superior air distribution while providing ultimate security and safety is what model
SG100 offers you. With this security grille you do not have to constantly worry about
the concealment of dangerous objects or unauthorized access to ductwork in your
maximum-security facilities. The face plate, backer plate, mesh screen and sleeve are
constructed with high-quality steel for enhanced strength and performance. It is an

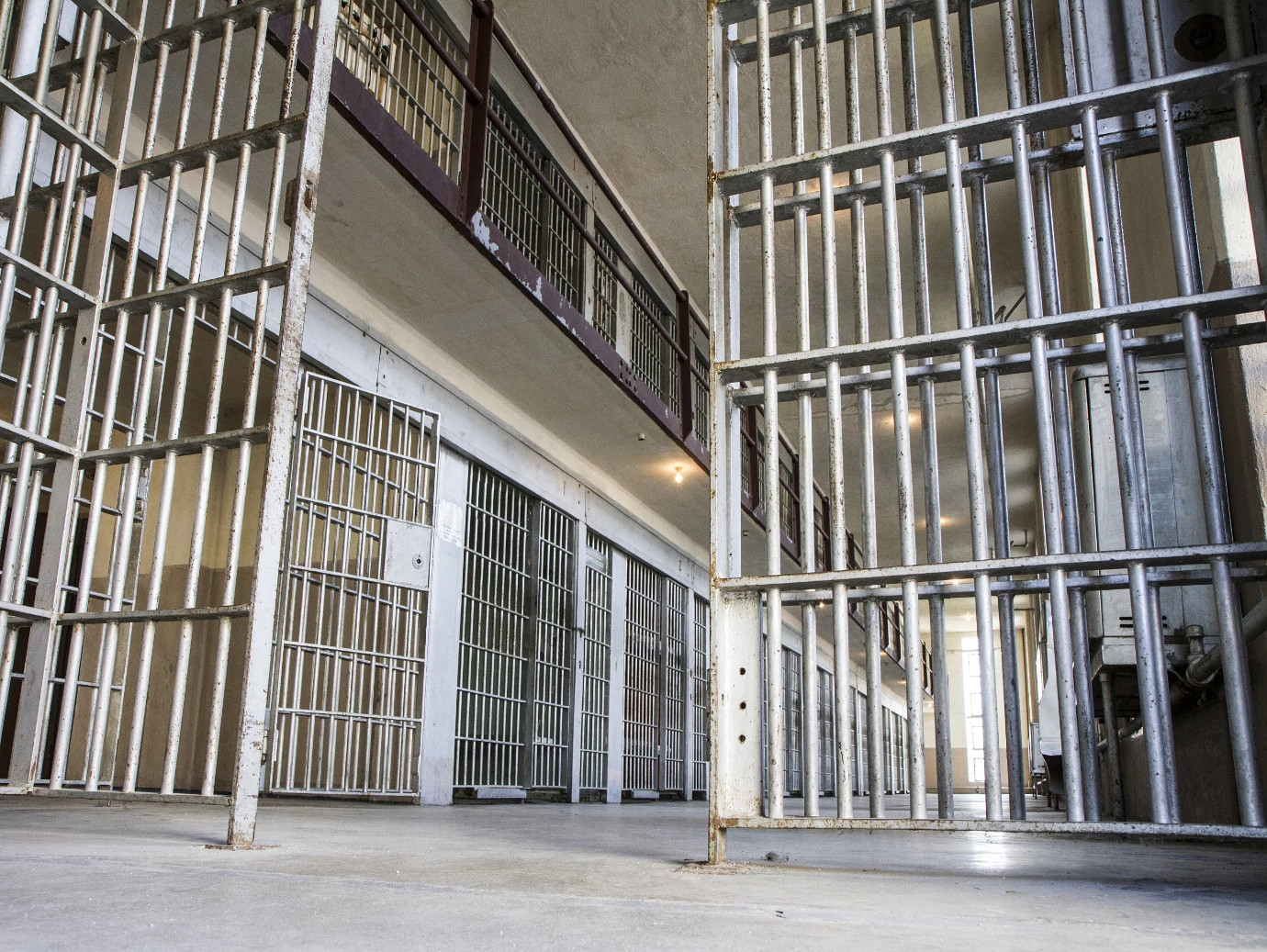

excellent choice for correctional and behavioral-health facilities.
Benefits
Robust Construction
The heavy construction of the SG100 prevents the insertion and concealment of dangerous objects or other contraband.
