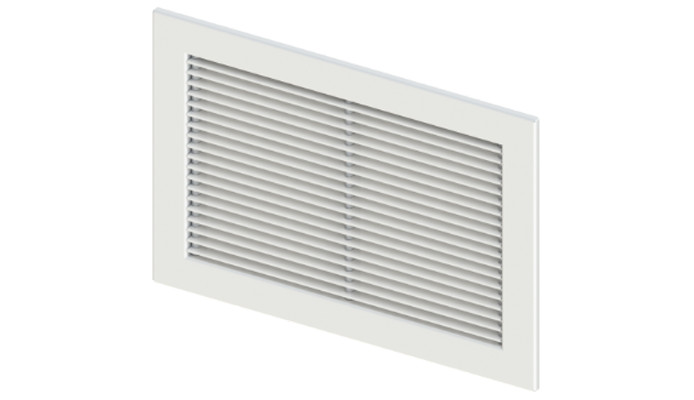

T115 Heavy Duty Return Grille, Steel

Grilles & Registers

Uniquely designed to cater to areas that require heavy-duty applications, the T115 grilles are a cost-effective solution. They come with optional stationary deflection bars spaced on 1/2" centers and factory set at 38-degree, or bars spaced on 3/8" centers and factory set at 0-degree deflection.

Sturdy steel construction consists of a 16-gauge margin with 14-gauge bars
Both options of horizontal face bars (H) or vertical face bars (V) are available for you to choose according to your requirements

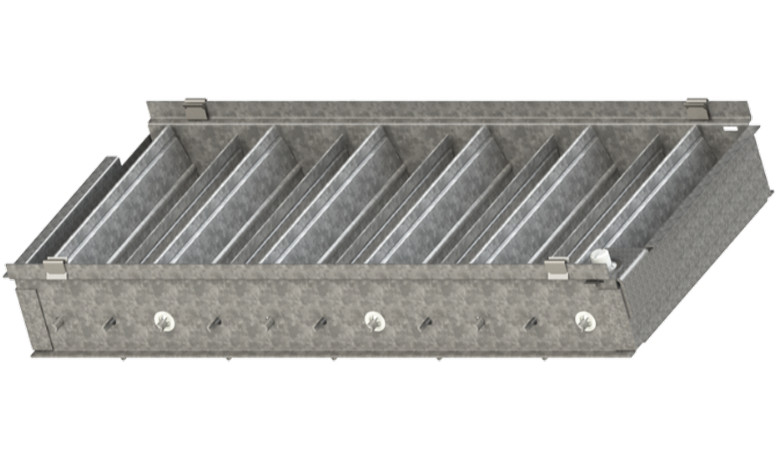

Optional steel opposed blade damper (SOBD) is factory mounted and screwdriver operated from the face of the grille

T115 Heavy Duty Return Grille, Steel

Product Application

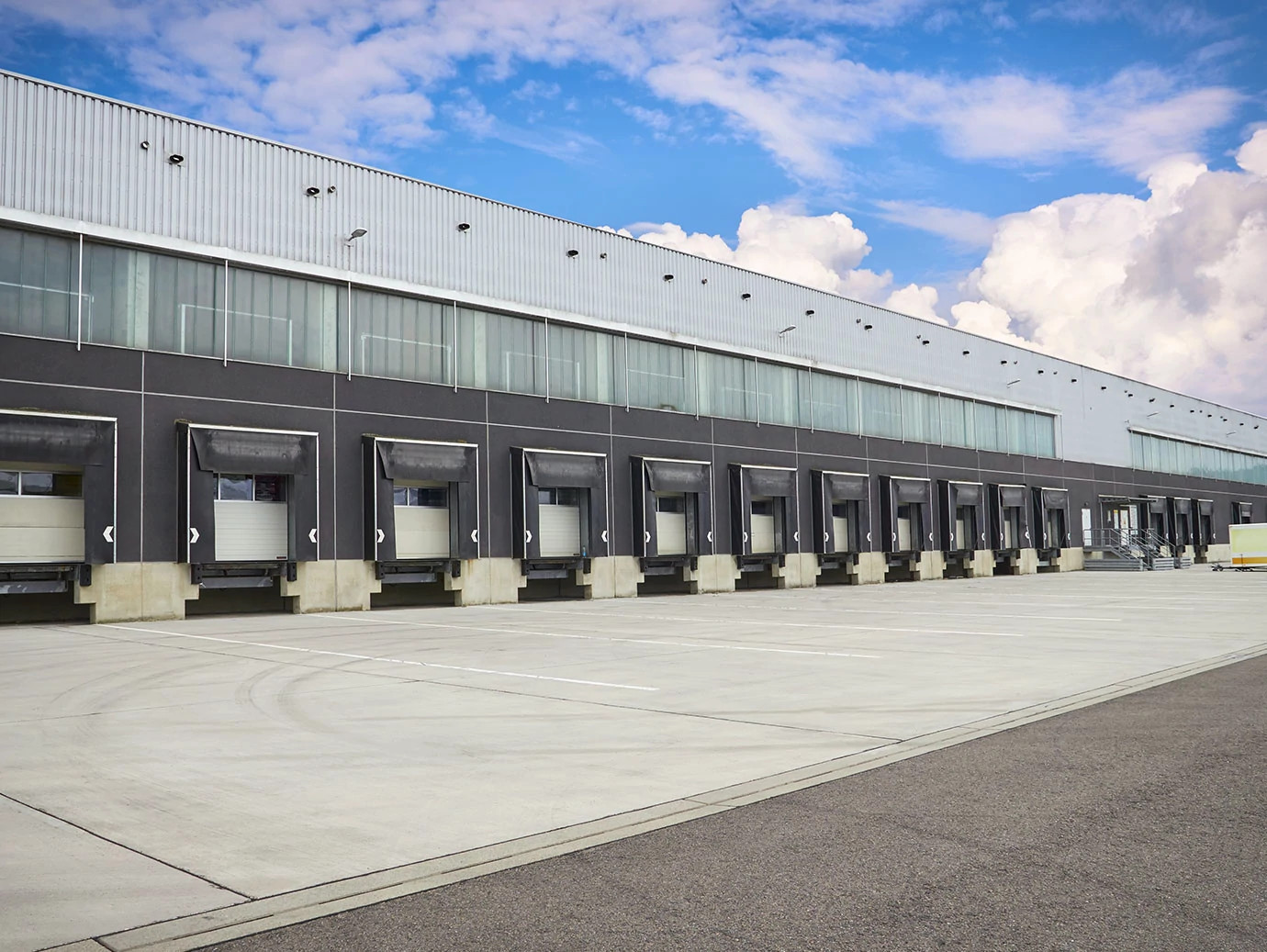

A great air distribution system offers more than efficient performance. Model T115 is one such product that delivers more than what meets the eye. This return grille is designed specifically for heavy-duty applications to resist damages of various degrees. Not only does it work effectively in rigorously used facilities, but it is also resistant to moisture and corrosion, making it a great choice for facilities with humid conditions. You can use them in gymnasiums, warehouses, and other industrial spaces where impact resistance is required.

Features

Offers support mullions on 6” centers
White (WH) electrocoat finish comes in an anodic acrylic paint, baked at 315°F for 30 minutes with a pencil hardness of HB to H

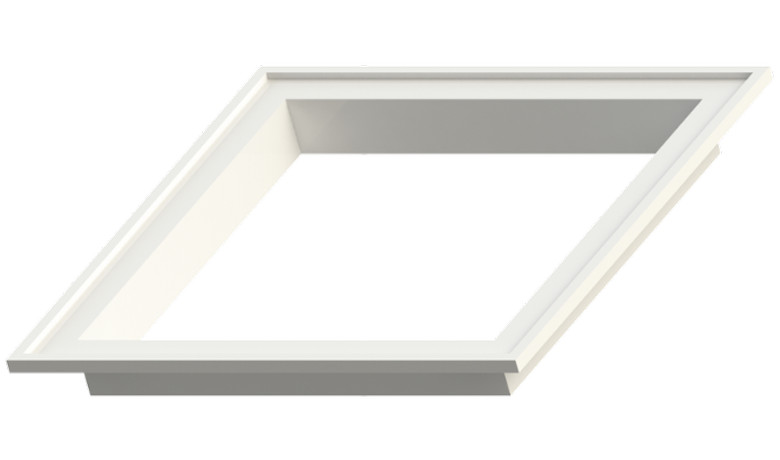

Optional steel mounting frame (45) available for use in plaster applications to facilitate grille removal

Available sizes are 6"x4" to 48"x48" in 1” increments
Published performance data tested in accordance with ANSI/ASHRAE Standard 70-1991 at isothermal conditions is provided
