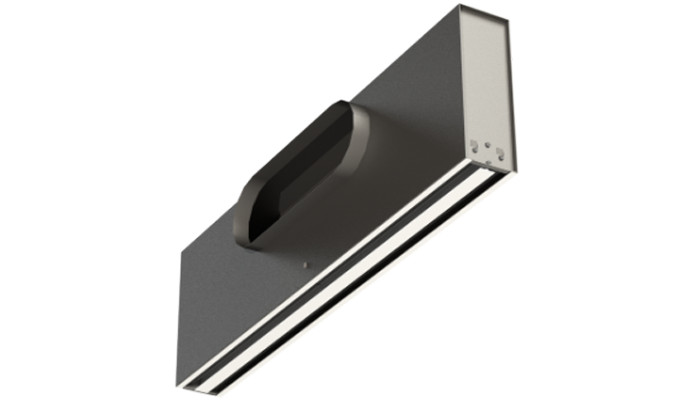

ITPS Modulinear Plenum Slot Diffuser
Plenum Slots
This product features a modulinear (ice tong) pattern controller, which can be adjusted for horizontal or vertical air patterns. Built with high quality steel, the ITPS diffuser offers versatility and quality performance with minimum noise and smudging.
- Two-piece pattern controller that can be operated from the face of the diffuser is available for 180-degree air pattern adjustment and volume control
- Available in 1, 2, 3 or 4 slots, with slot widths of 1" for all and 3/4" for 1 or 2 slots with optional thermal insulation as required
- Designed for standard lay-in T-Bar ceiling systems with optional plaster frame (PF) available for sheetrock and plaster ceiling applications
Product Application
Get full flexibility in air pattern control with our ITPS plenum slot supply diffuser.
It is designed to work efficiently with VAV systems and can be installed in standard
lay-in ceiling. The modulinear pattern controller creates a tight “ceiling hugging”
horizontal pattern that minimizes smudging and noise generation. The blanketing effect
makes the diffuser perform effectively even at low flow rates. The versatility of this
diffuser makes it a good choice for educational institutions, museums, and libraries.
Benefits
Minimum Leakage
The diffuser is equipped with a drawn neck that ensures minimum leakage of air for optimum air circulation.
Effective Ventilation
Boasting a tight ceiling pattern even at low flow rates, it is the ultimate choice for VAV systems.
