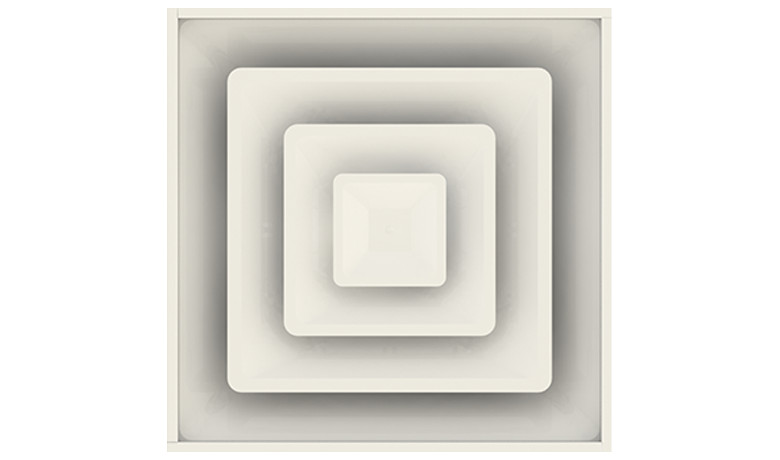

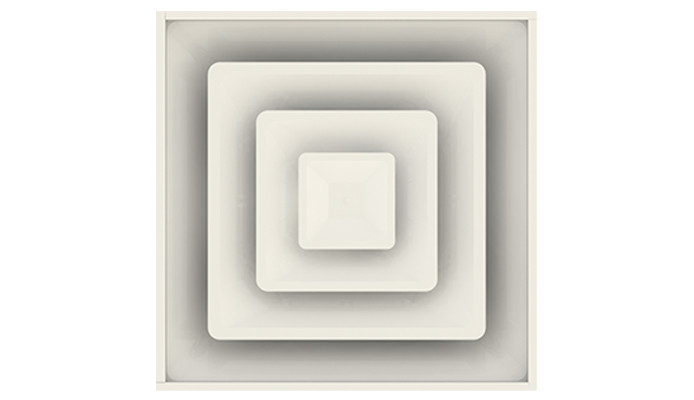

A1300A 3-Cone Diffuser, Adjustable, Aluminum

Square/ Round Diffusers

With a broad range of margin styles, the A1300A ceiling diffuser comes in various designs for the architectural continuity of your facility. It features a horizontal throw setting that suits conventional ceiling pattern cooling and a vertical down-throw setting for heating and spot cooling.

The diffuser has a non-removable core that is welded into place
The product has an optional round damper that is adjustable through a removable plug-in center cone
The product features an anti-smudge design

A1300A 3-Cone Diffuser, Adjustable, Aluminum

Product Application

Combining versatility and ease of use to deliver quality performance, our A1300A 3-cone diffuser is excellent for VAV systems. The diffuser’s anti-smudge design lends a smooth, aesthetic appearance that complements your interior. The product is equipped with earthquake tabs that guarantee safety. From airport terminals to corporate offices, this efficient diffuser can be used in a range of environments.

Features

Features aluminum construction.
Adjustable pattern controllers on the cores
Optional round damper to be ordered separately
Diffuser shall have a stamped backpan with integral round neck. The core assembly shall be permanently mounted, and will provide a 4-way fixed air diffusion pattern

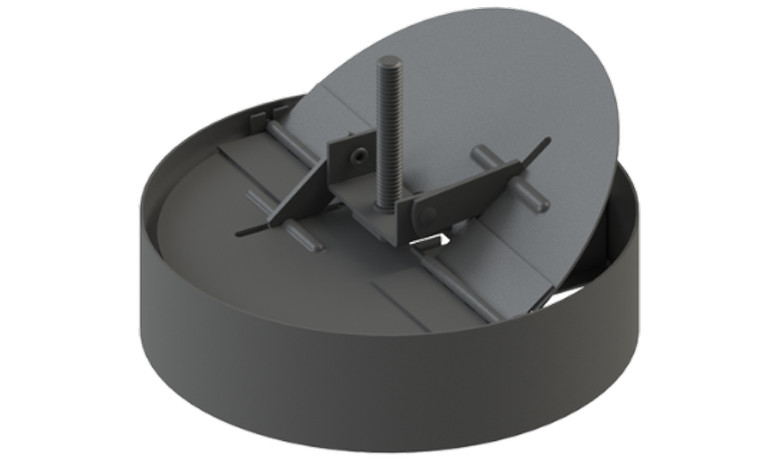

Round butterfly damper (RBN, RBD) available as an accessory

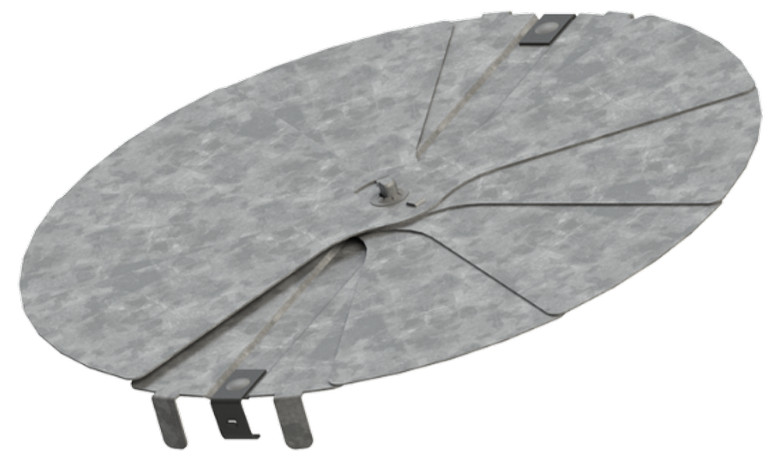

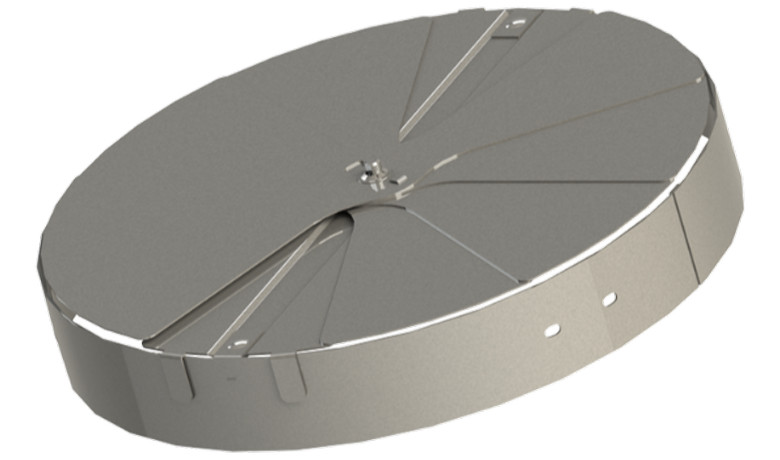

Accessories also include round radial blade damper (RRN, RRD)

Five different margin styles
The manufacturer shall provide published performance data tested in accordance with the ANSI/ASHRAE Standard 70-1991
PD is a pattern deflector (sectorizing baffle), which mounts to inside of diffuser neck and can be used for 1, 2, and 3-way air patterns. Flat Black (FB) finish only
The White (WH) electrocoat finish is in an anodic acrylic paint, baked at 315°F for 30 minutes with a pencil hardness of HB to H

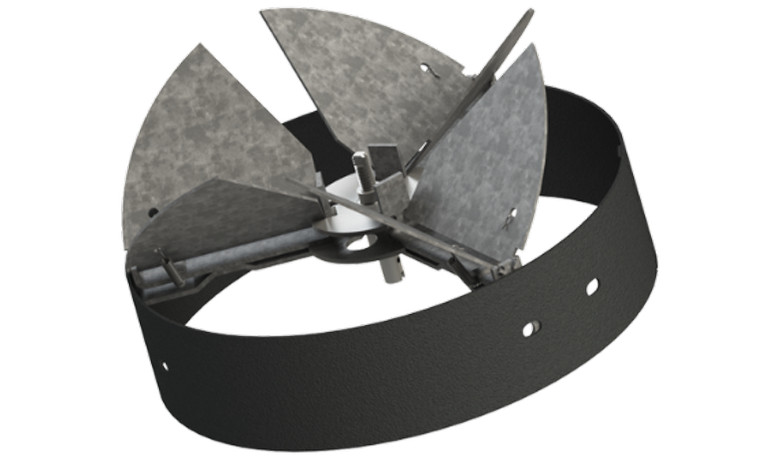

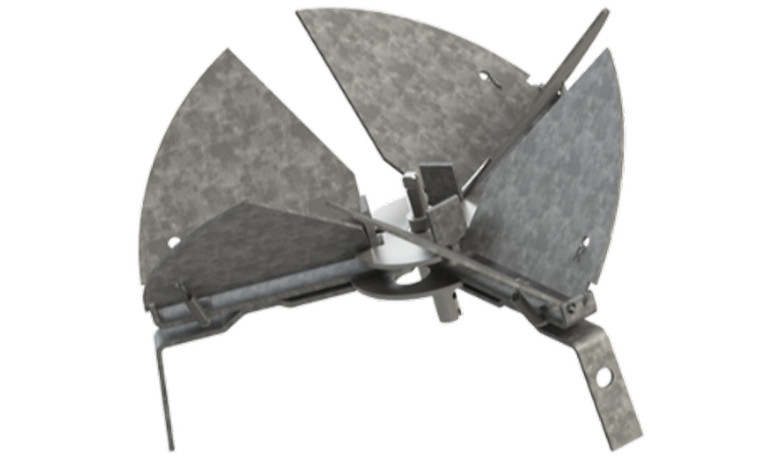

Optional round opposed blade damper (RON, ROD) is also available
