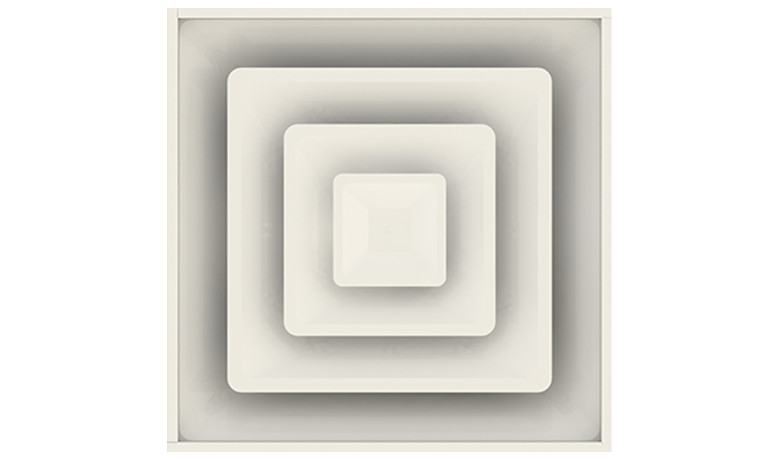

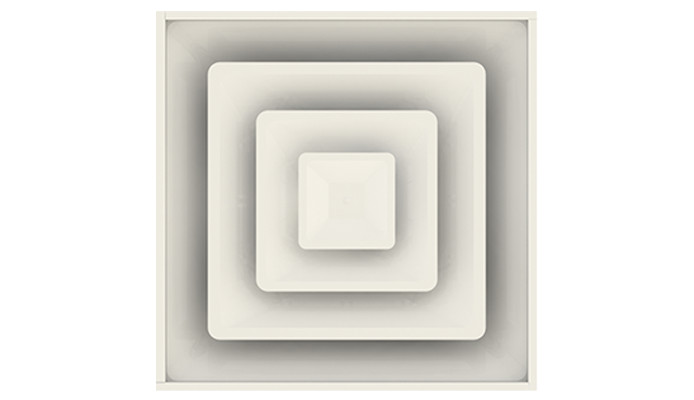

1300A 3-Cone Diffuser, Adjustable, Steel

Square/ Round Diffusers

The 1300A (steel, adjustable) diffuser is a square-faced stepdown ceiling diffuser that offers the best performance for your facility. It offers a horizontal throw setting ideal for conventional ceiling pattern cooling and a vertical down-throw setting ideal for heating and spot cooling.

The product features steel construction
The product has earthquake tabs standard on all backpans
Features an anti-smudge design

1300A 3-Cone Diffuser, Adjustable, Steel

Product Application

Are you looking for a full-face diffuser that offers an improved thermal comfort and draft-free environment? Our model 1300A is an ideal solution that features rapid mixing of air resulting in faster temperature equalization and velocity reduction. The low pressure drop and sound attenuation create a better environment for the occupants. It comes with five different margin styles to suit most ceiling applications.

Features

Frame surface mount (SF) includes an aluminum mounting frame
PD is a pattern deflector (sectorizing baffle), which mounts to inside of diffuser neck and can be used for 1, 2, and 3-way air patterns. Available in Flat Black (FB) finish only
Non-removable core is welded into place
Diffuser shall have a stamped backpan with integral round neck. The core assembly will be permanently mounted (non-removable) with a plug in the center cone, and will provide a 4-way
The manufacturer provides published performance data tested in accordance with the ANSI/ASHRAE Standard 70-1991

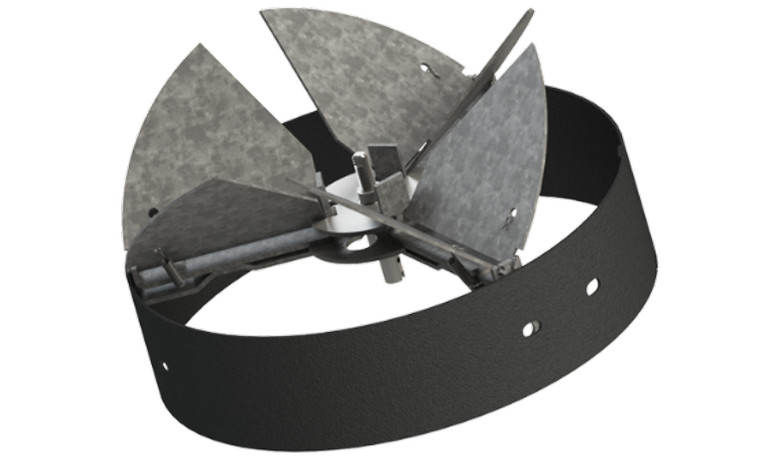

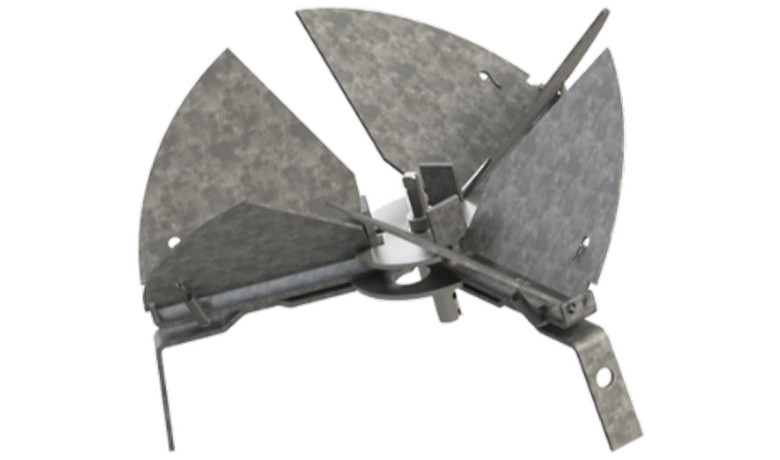

Optional round opposed blade damper (RON, ROD) is also available

Two earthquake tabs are standard on all frame styles
Optional round damper to be ordered separately. It is adjustable through a removable plug-in center cone (screwdriver adjustable)
Full-face diffuser
The White (WH) electrocoat finish is in an anodic acrylic paint, baked at 315°F for 30 minutes with a pencil hardness of HB to H

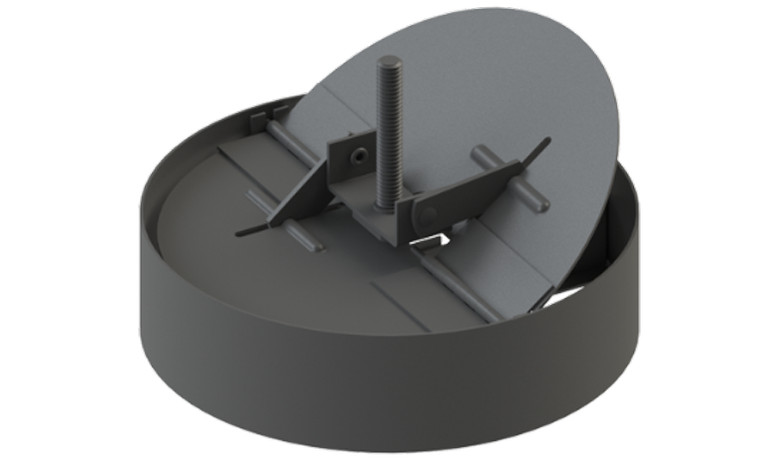

Round butterfly damper (RBN, RBD) available as an accessory

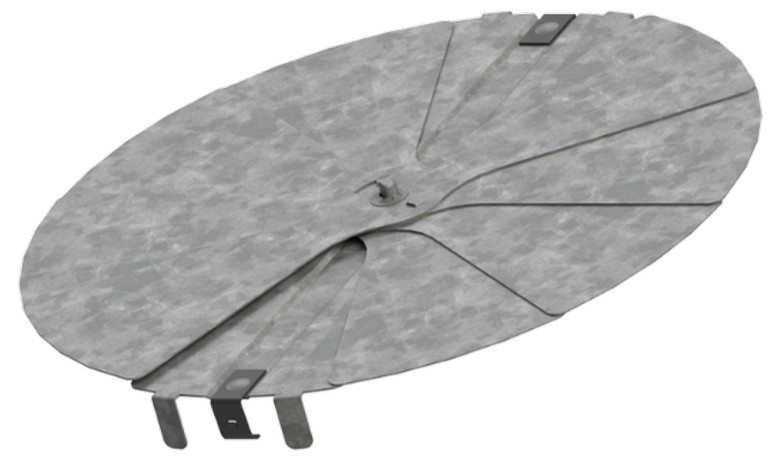

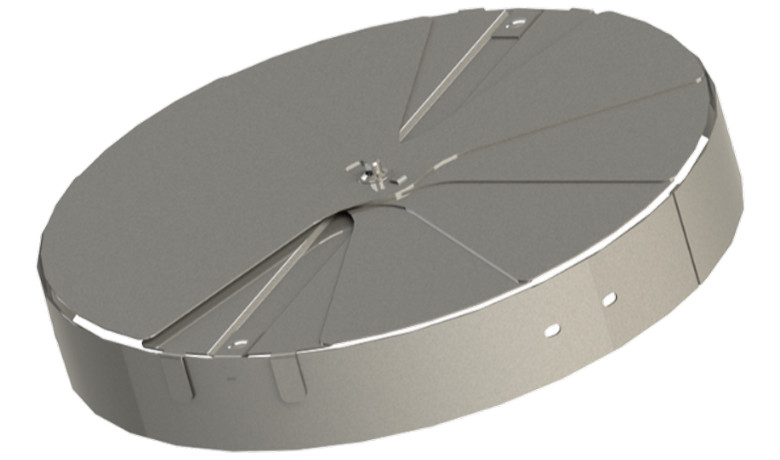

Accessories also include round radial blade damper (RRN, RRD)
