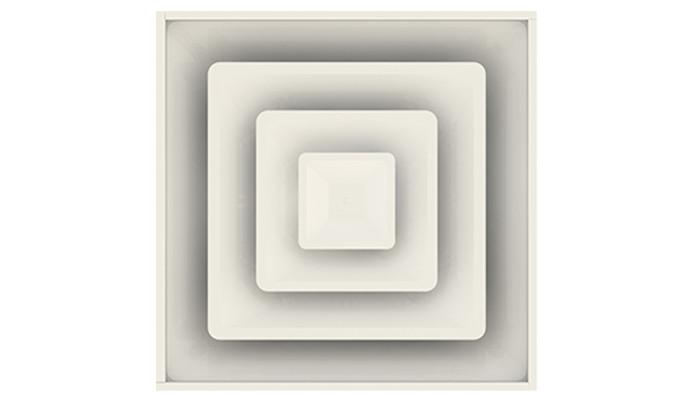

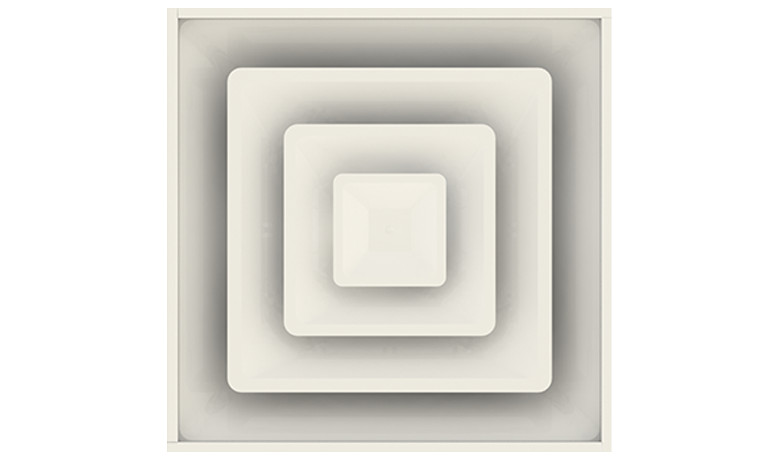

A1300 3-Cone Diffuser, Fixed, Aluminum

Square/ Round Diffusers

With round necks and fixed horizontal four-way air deflection and discharge pattern, the A1300 3-Cone stepdown ceiling diffuser offers flexibility with an aesthetic appearance. It has a one-piece construction of the backpan and cores which provides a smooth look.

Five different margin styles for you to choose from
It has a non-removable core which is welded into place
A1300 diffusers meet MRI application requirements

A1300 3-Cone Diffuser, Fixed, Aluminum

Product Application

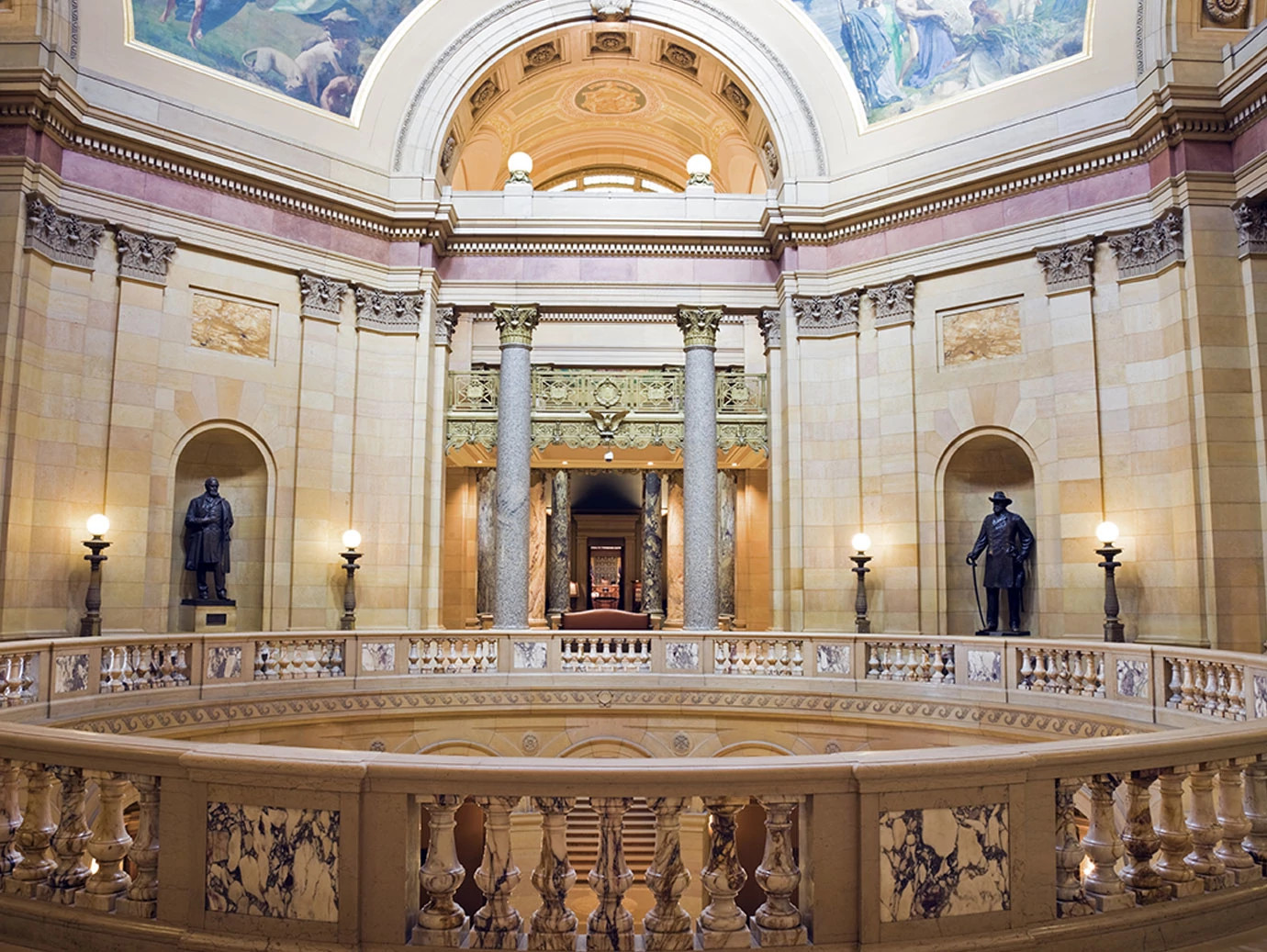

Formal settings like offices and government establishments often have simple yet classy interiors. Unfortunately, most of the diffusers available in the market don’t offer the same kind of aesthetics to match with these designs. Our solution is the A1300 diffusers, which are expertly designed—with the backpan and cores as a single piece—and have a smooth appearance without miter joints.

Features

Aluminum construction with full-face diffuser and non-removable core, which is welded into place
Insulated backpan only available for model A1300, 24x24 module, SF or LT frame
A1300 meets MRI application requirements
Optional round damper is screwdriver adjustable through a removable plug-in center cone
Available finish options include White (WH), Mill (ML), Aluminum Paint (AP), Off-White (OW), Flat Black (FB), and Match Paint (MP)

Five different margin styles
Earthquake tabs standard on all backpans

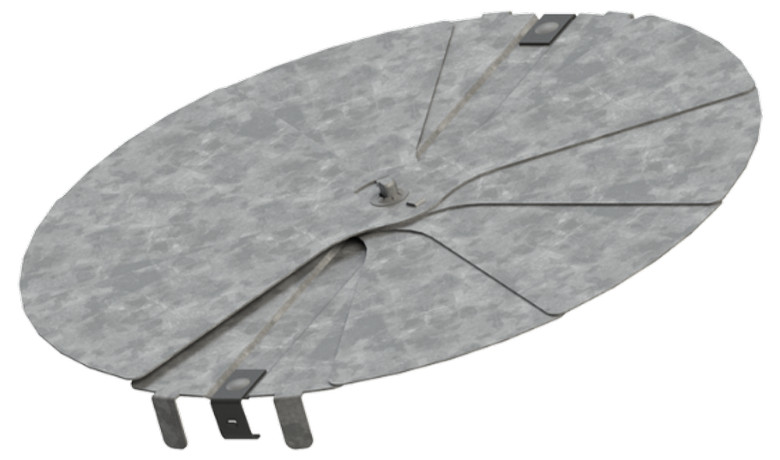

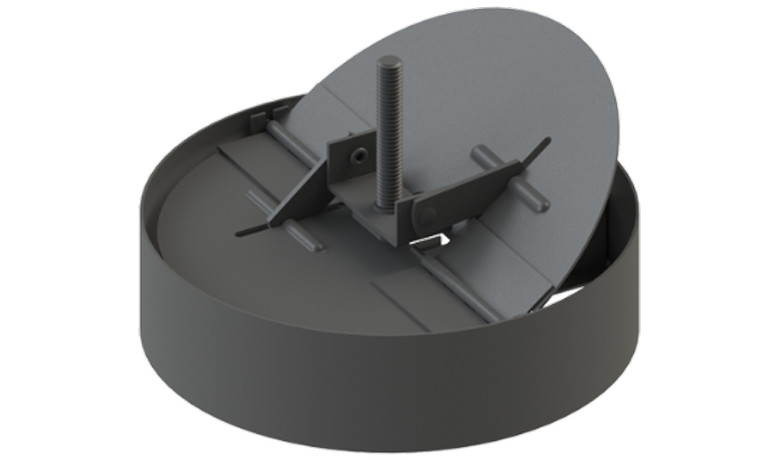

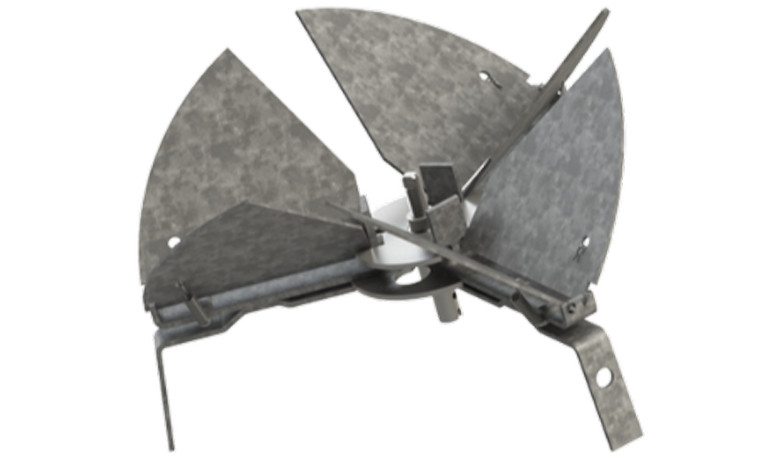

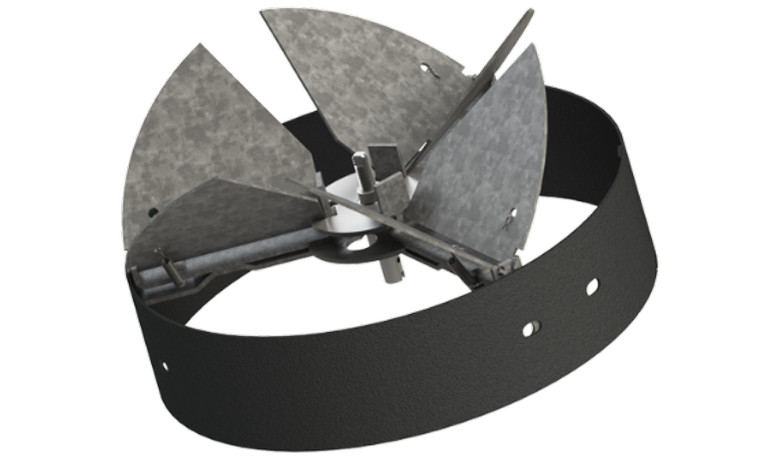

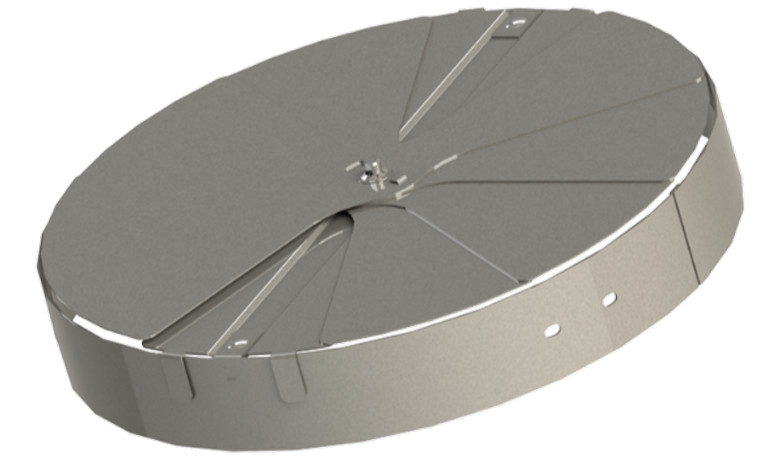

Accessories include round radial blade damper (RRN,RRD), round opposed blade damper (RON,ROD) and round butterfly damper (RBN,RBD)
The optional PD is a pattern deflector (sectorizing baffle) that mounts to the inside of diffuser neck. It can be used for 1, 2, and 3-way air patterns. The product comes with a Flat Back (FB) finish and steel construction
