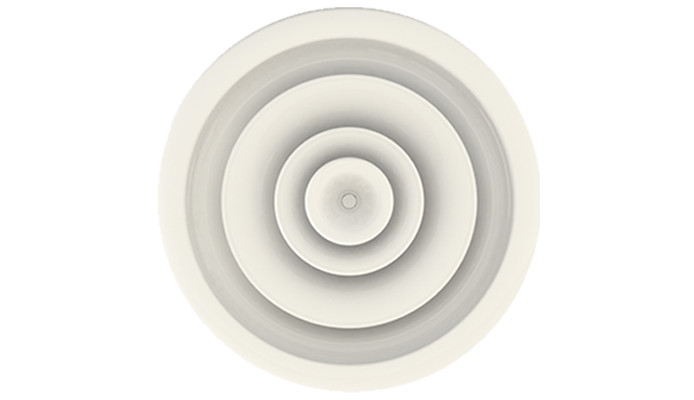

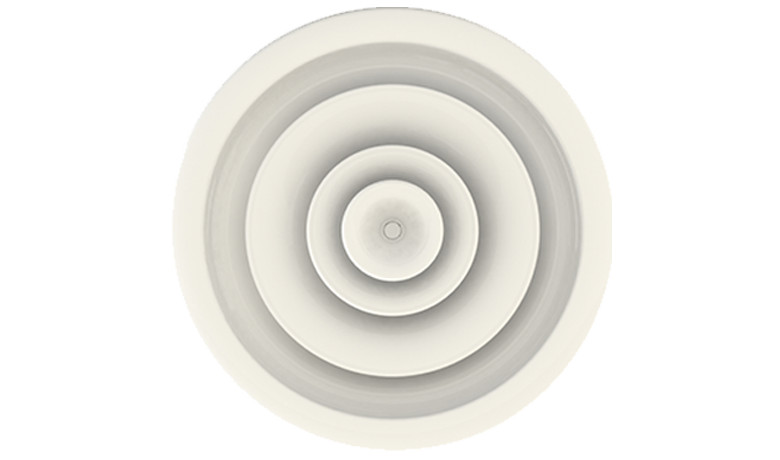

VJR Steel, Flush Mount, 4-Cone

Square/ Round Diffusers

The steel VJR diffuser provides an excellent horizontal ceiling pattern for cooling applications and a vertical down throw pattern for heating and spot cooling, ideal for large open spaces like malls. The inner core assembly is both adjustable and removable for easy access during installation.

Available in steel construction
The center core assembly is adjustable for different air patterns and removable for easy duct access
The spring lock mechanism allows easy removal and replacement of inner core assembly

VJR Steel, Flush Mount, 4-Cone

Product Application

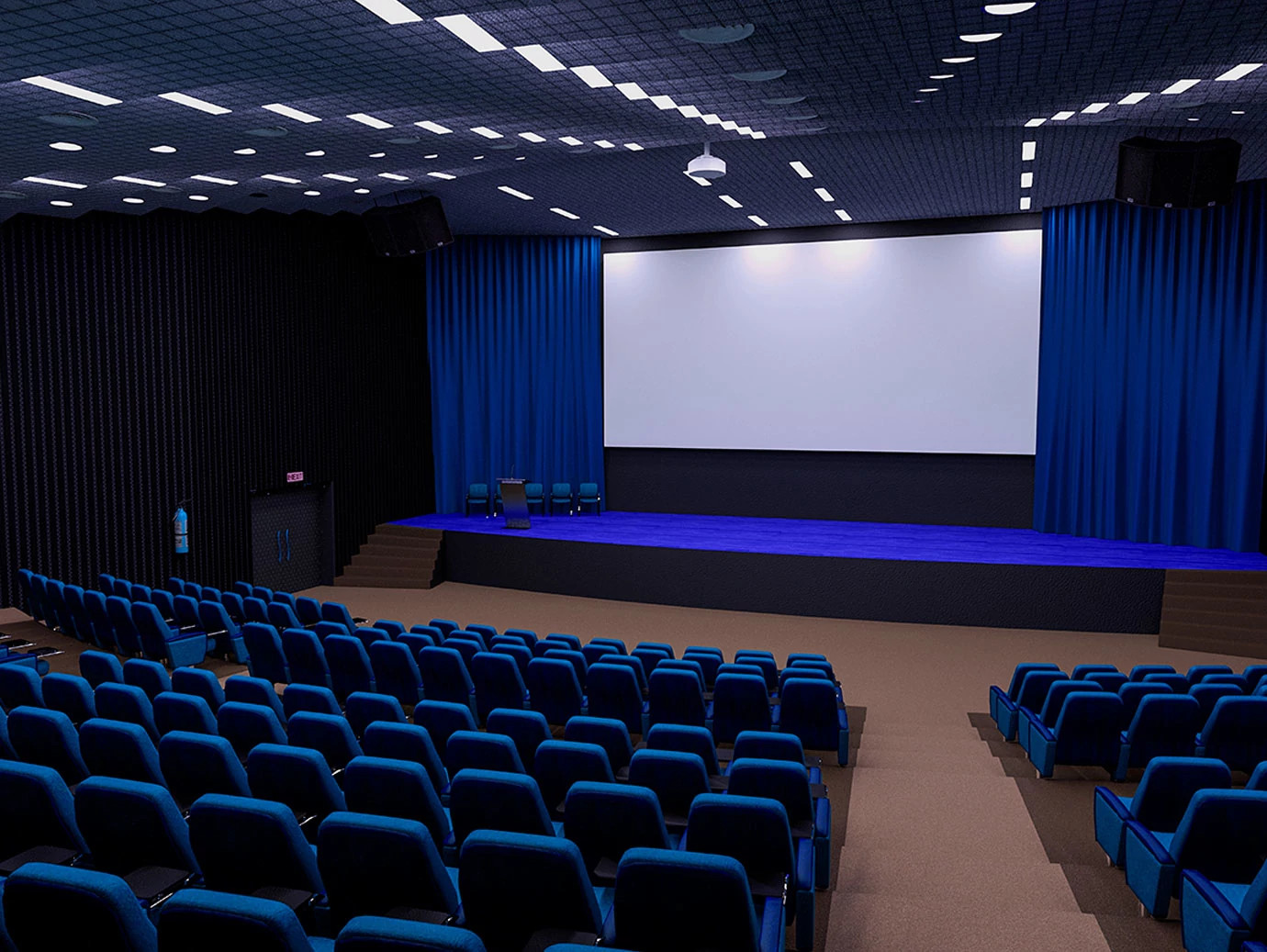

Heavy air distribution requires a device that can handle a wide range of applications while delivering an efficient performance. Our model VJR is an industry-leading round diffuser capable of handling large volumes of air with ease and is the perfect choice for open areas like department stores, malls, and convention halls. It offers three types of core adjustments and three positions—fixed, sliding, and rotating—providing flexibility in application. The shallow profile flange featured on the diffuser gives it flush appearance to blend in with the space.

Features

Features a deep outer cone that ensures minimum ceiling smudging
The manufacturer will provide published performance data tested in accordance with the ANSI/ASHRAE Standard 70-1991
Available finishes also include Mill (ML), Aluminum Paint (AP), Off-White (OW), Flat Black (FB), and Match Paint (MP)

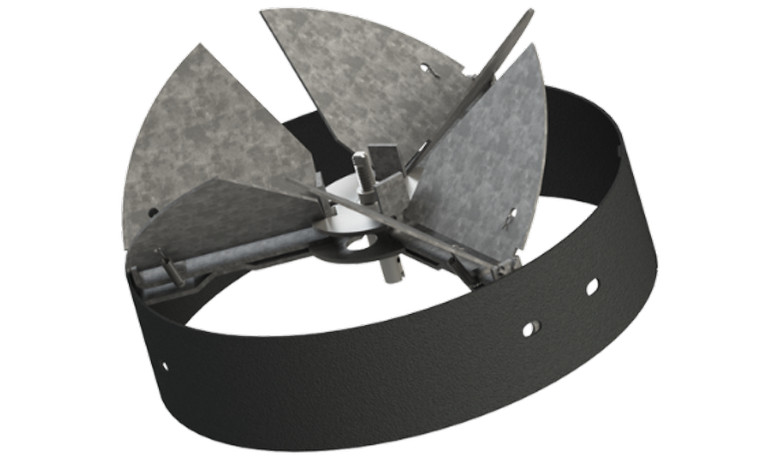

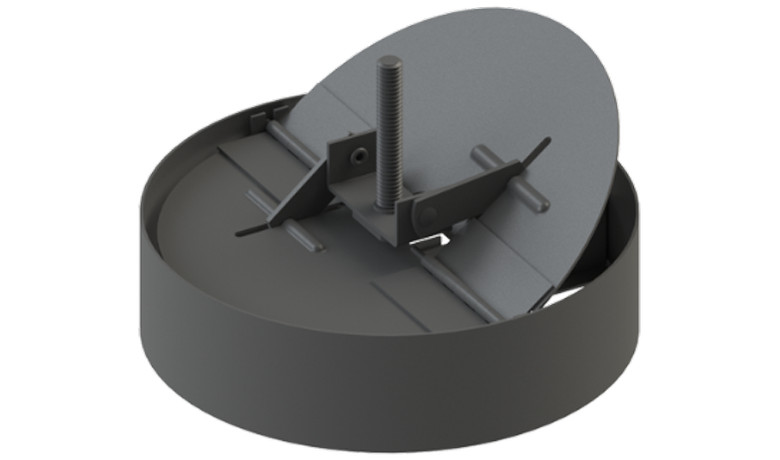

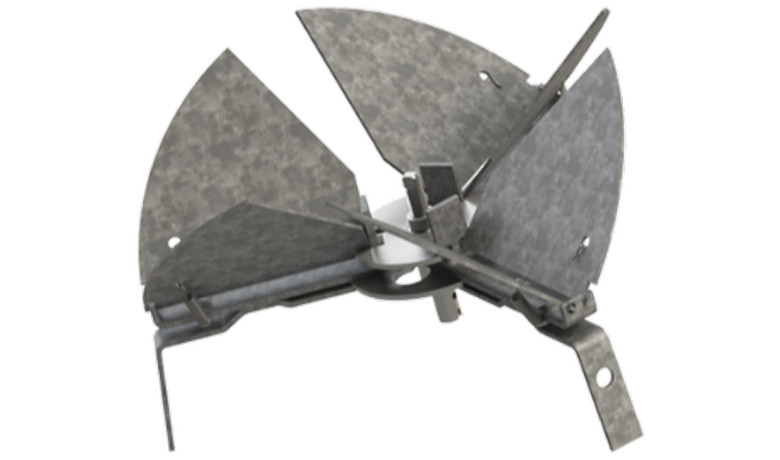

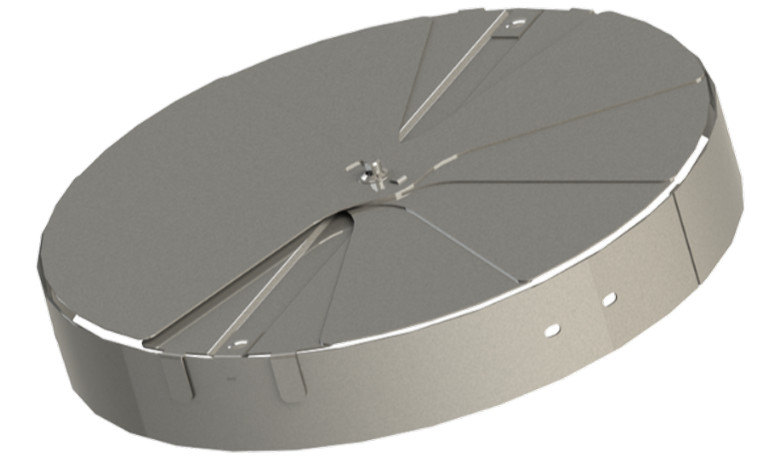

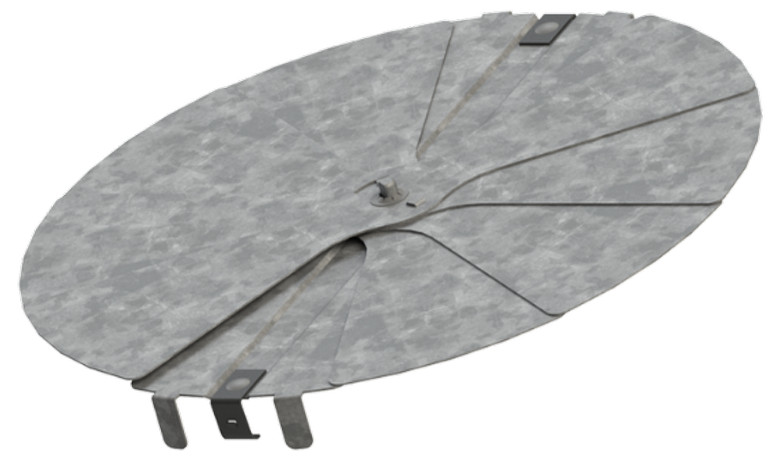

Round butterfly damper (RBN, RBD), Round opposed blade damper (RON, ROD) and Round radial blade damper (RRN, RRD) are available as accessories. Dampers are shipped loose for field installation

Construction design includes a shallow, low-profile flange for a flush appearance
Standard finish is White (WH). The finish is an anodic acrylic paint, baked at 315°F for 30 minutes with a pencil hardness of HB to H
Features a 360-degree discharge pattern
Safety cable is standard on neck sizes 12” to 36”
