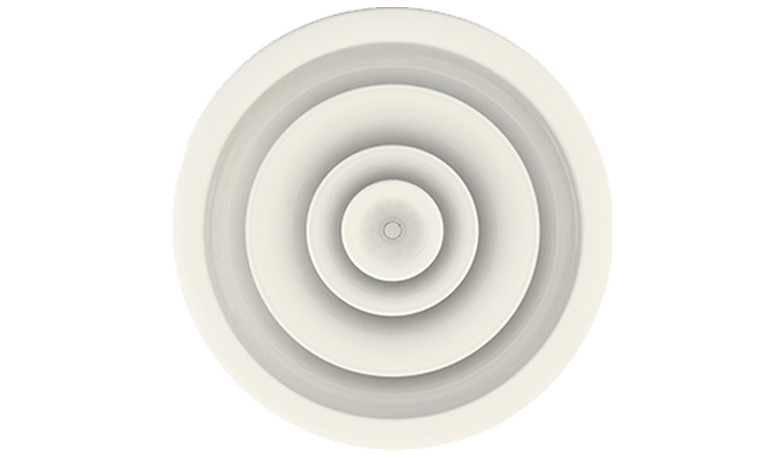

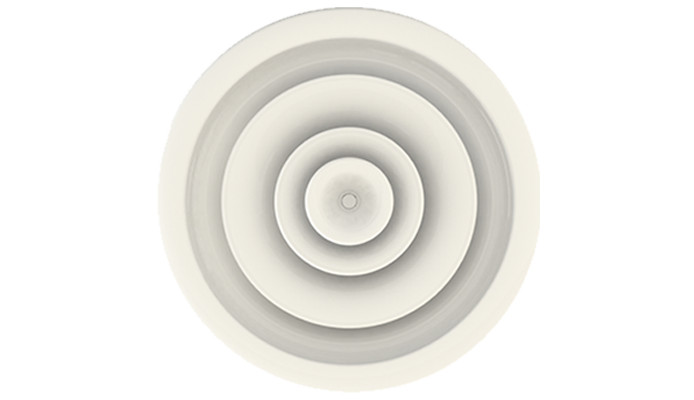

AVJR Aluminum, Flush Mount, 4-Cone

Square/ Round Diffusers

Constructed with a shallow profile flange for flush appearance, the AVJR diffuser provides a horizontal ceiling pattern, as well as a vertical down throw pattern. The spring lock mechanism allows easy removal and replacement of the inner core assembly.

Accessories include round butterfly damper, round opposed blade damper, and round radial blade damper
The model is only available with the 3-position fixed adjustment type
The standard finish is White (WH)

AVJR Aluminum, Flush Mount, 4-Cone

Product Application

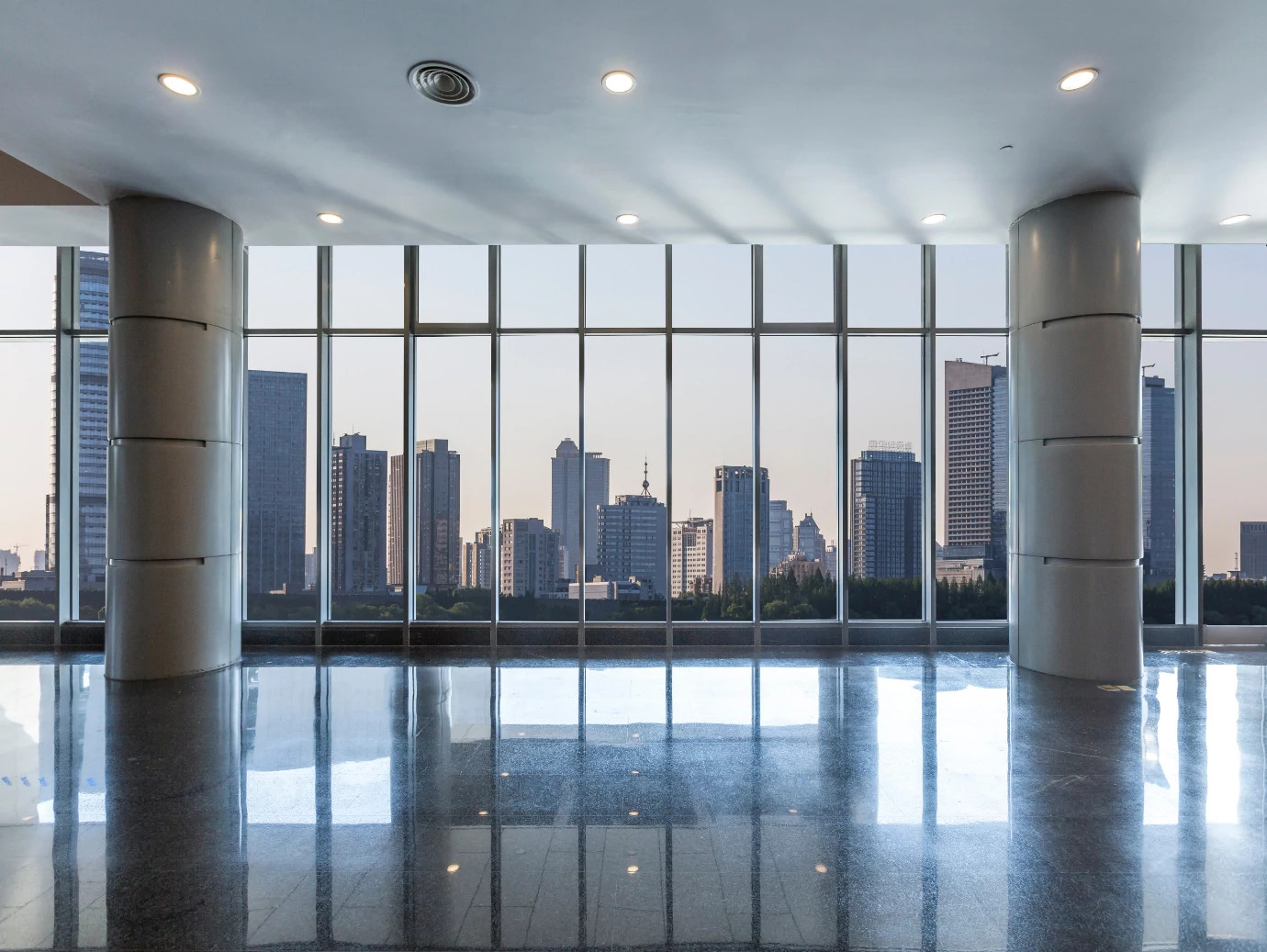

Commercial spaces like malls and auditoriums require a large volume of air circulation. Tuttle and Bailey’s Aluminum Flush Mount 4-Cone Diffuser is the perfect fit for such a requirement. With a horizontal ceiling pattern for excellent cooling, the vertical airflow is adjustable to provide for spot cooling and heating. What’s more, the product has three different airflow adjustment settings, thus providing you with maximum versatility and the most efficient ventilation.

Features

Available in aluminum construction
Retainer (safety) cables are standard on neck sizes 12” and greater

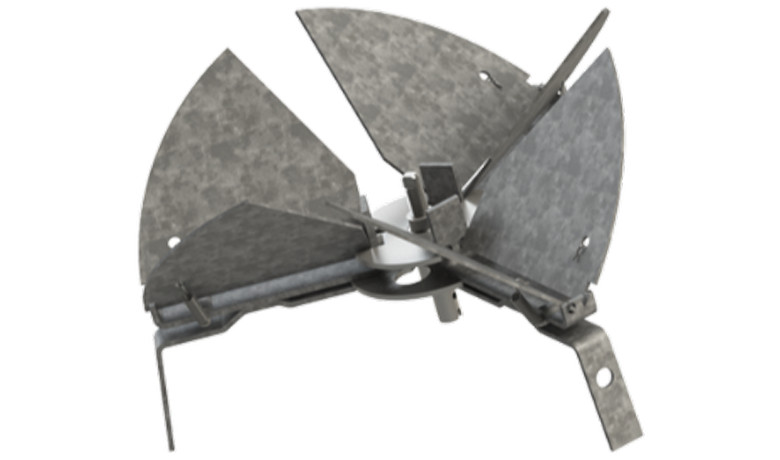

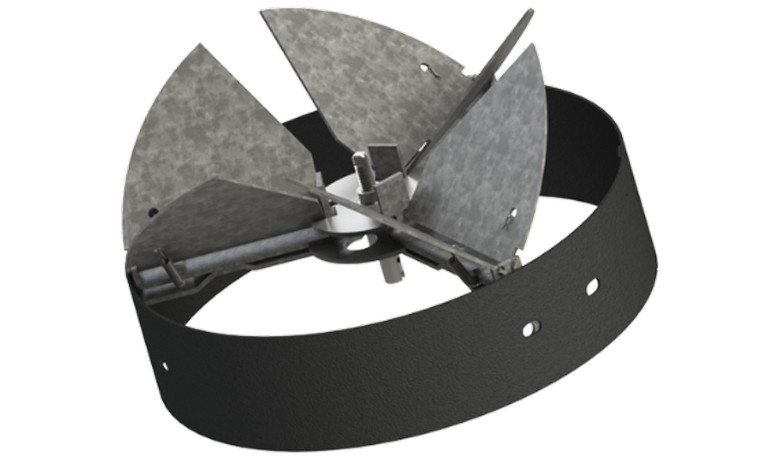

Round opposed blade damper (RON, ROD) available as accessory
Nominal duct sizes are 02", 04", 06", 08", 10", 12", 14", 16", and 18"
The manufacturer will provide published performance data tested in accordance with the ANSI/ASHRAE Standard 70-1991

Models AVJR is only available with the 3-position fixed adjustment type

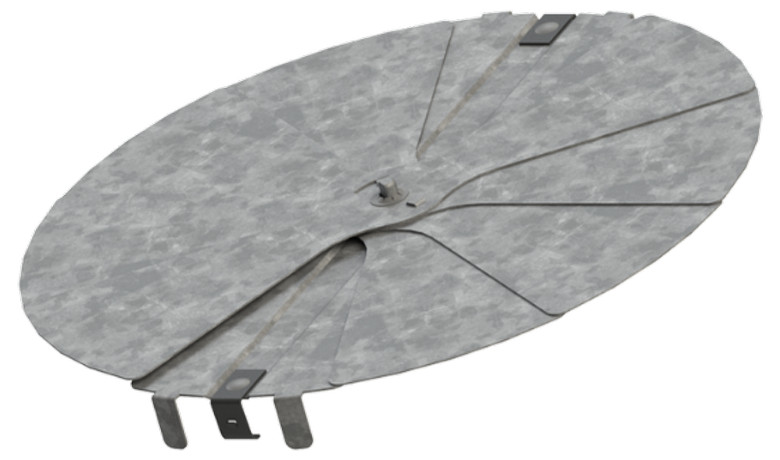

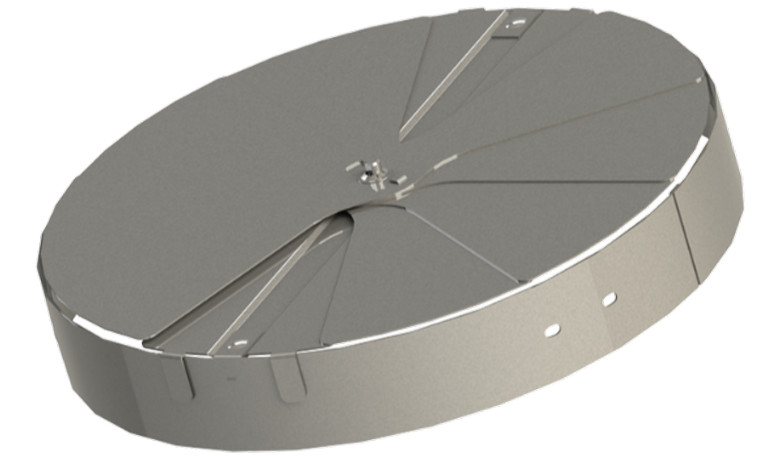

Round radial blade damper (RRN, RRD) available as accessory

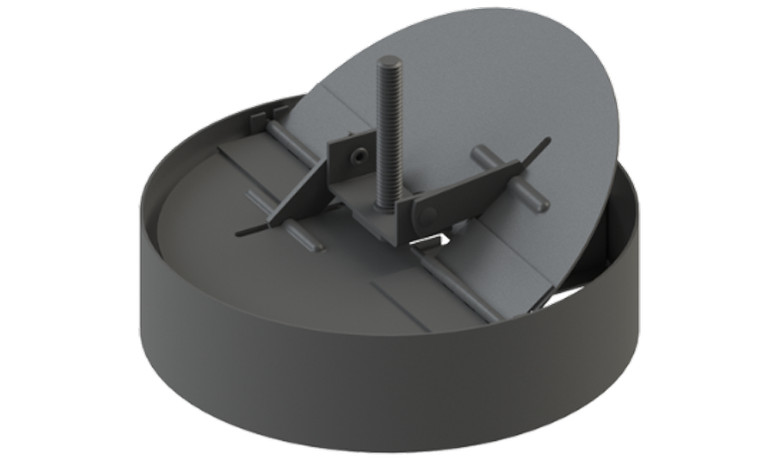

Round butterfly damper (RBN, RBD) available as accessory
The finish is a White (WH) electrocoat finish. The finish shall be an anodic acrylic paint, baked at 315ºF for 30 minutes with a pencil hardness of HB to H
