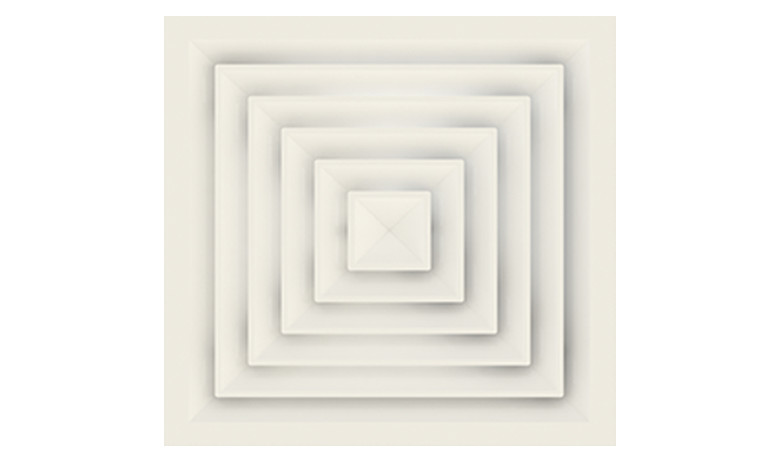

AMSR Aluminum, Fixed Pattern, Round Neck

Square/ Round Diffusers

The core louvers of the AMSR model are equipped with 1/4" horizontal lip on all sides, resulting in a horizontal air pattern which is tight to the ceiling. Its one-piece center core features multiple deflecting louvers. The diffuser is fastened to the connecting duct with screws for a tight fit.

Features a removable core which simplifies the installation process
Available deflection patterns include 1, 2, 3, or 4-way, which can be specified while ordering
Center core can be installed without the use of tools

AMSR Aluminum, Fixed Pattern, Round Neck

Product Application

AMSR ceiling diffusers are the best of the best in the market. With a rugged construction and a streamlined flush-face appearance, these diffusers are equipped for heavy-duty applications including large offices, atriums, and mezzanines. AMSR models are designed not only to ensure a tight ceiling pattern but also to make installation easy. Additionally, we use high-quality aluminum in their construction to guarantee a long-lasting operation.

Features

Removable snap-in center cores provide easy access to the mounting margin
Standard diffusers are fastened to the connecting duct with screws, resulting in a tight fit to the ceiling

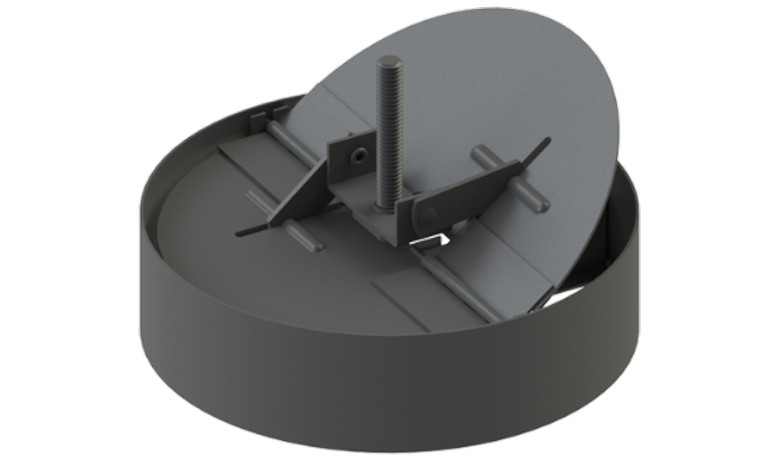

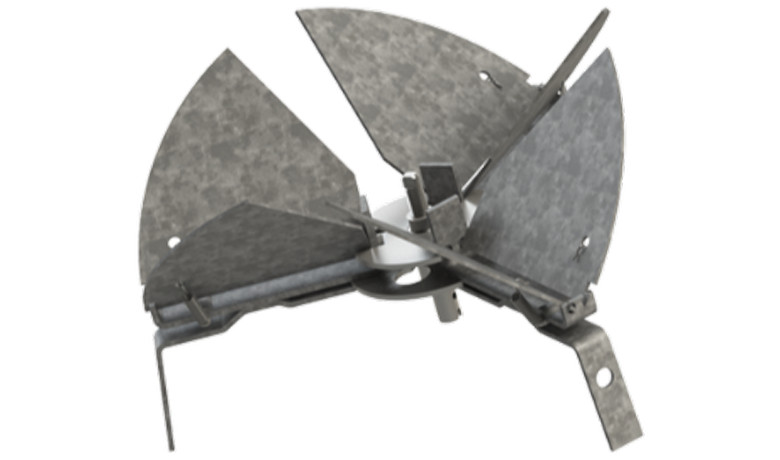

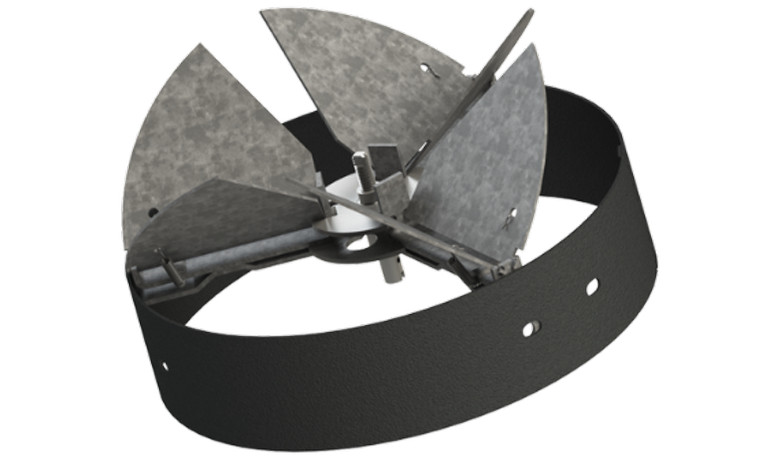

Optional round opposed blade damper (RON, ROD) available

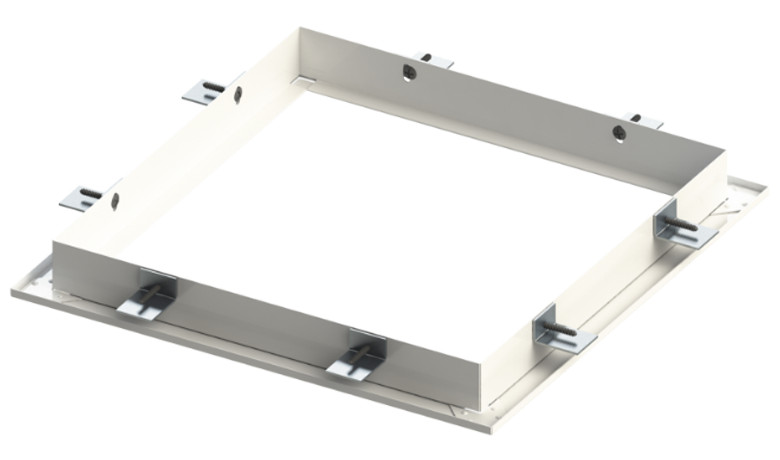

Steel plaster frame (SMF) and aluminum plaster frame (ASMF) available

Removable snap-in center cores are interchangeable between same size margins
Finish shall be a White (WH) electrocoat finish. The finish shall be an anodic acrylic paint, baked at 315°F for 30 minutes with a pencil hardness of HB to H

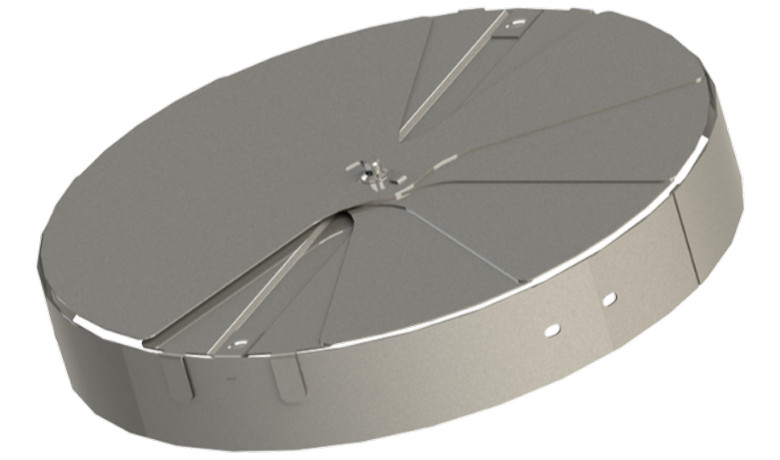

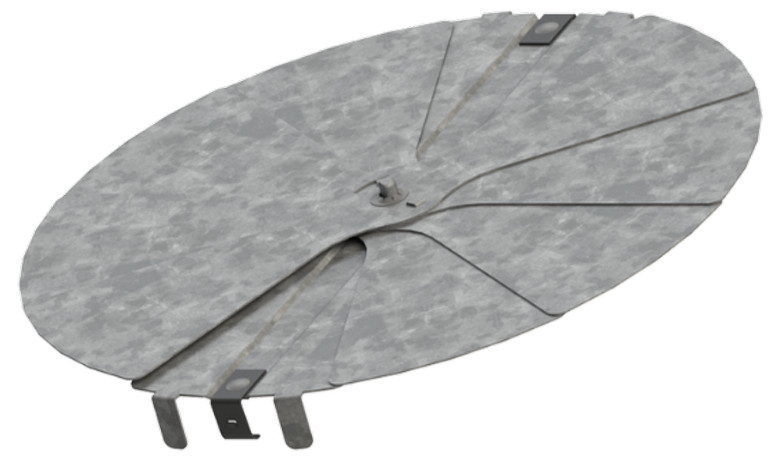

Accessories include round radial blade damper (RRN, RRD)
Trim frames and dampers are ordered separately and shipped loose for field installation
