MASR Steel, Adjustable Pattern, Round Neck

Square/ Round Diffusers

This round neck diffuser’s removable core makes installation and maintenance easier and has no visible mounting screws since it uses a snap-in mechanism. It ensures a tight ceiling pattern with a horizontal lip on the louvers which allows excellent mixing.

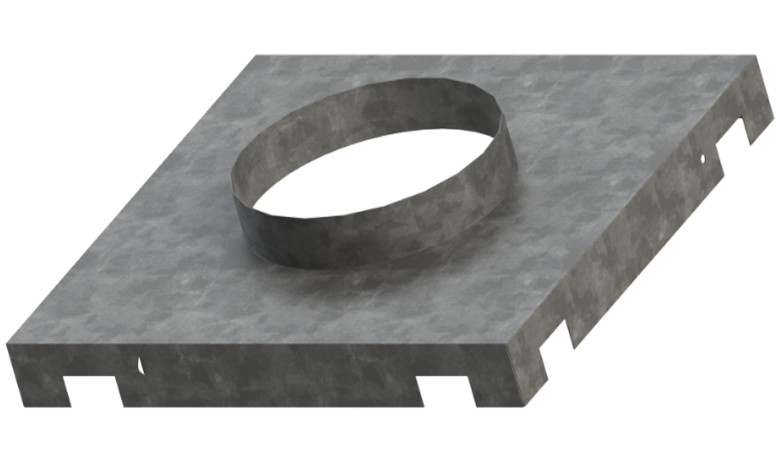

Round inlet provided as a steel, factory-mounted square to round transition (SRM)
Snap-in center cores can be detached and interchanged between the same size margins
Available in standard White (WH) electrocoat finish that protects the diffuser from rust and other chemical reactions

MASR Steel, Adjustable Pattern, Round Neck

Product Application

Model MASR offers maximum diffusion with minimum disturbance. It is designed to handle exceptionally large air volumes with minimal pressure drop and noise generation. The superior design of this model gives it a streamlined flush appearance that blends harmoniously with modular ceiling systems. The round neck featured on this diffuser also makes flex duct connections easy. It is a convenient solution for spaces like libraries and educational institutions.

Features

Model MASR is a steel construction with adjustable pattern and round neck
Comes with a horizontal or vertical adjustable air pattern. 1, 2, 3, or 4-way deflection patterns are available

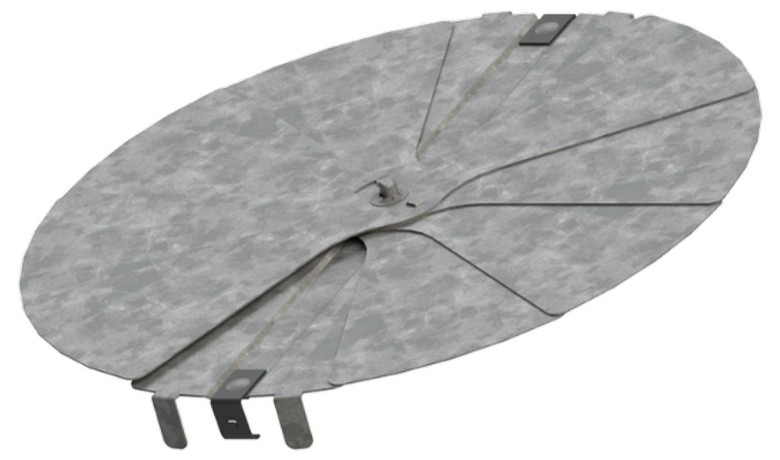

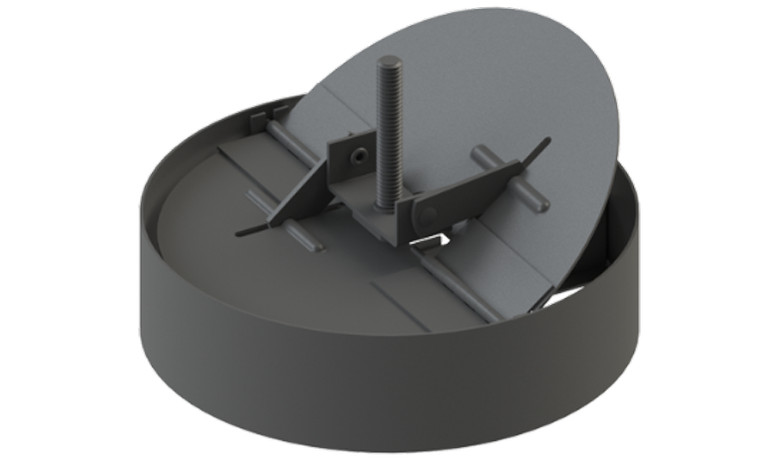

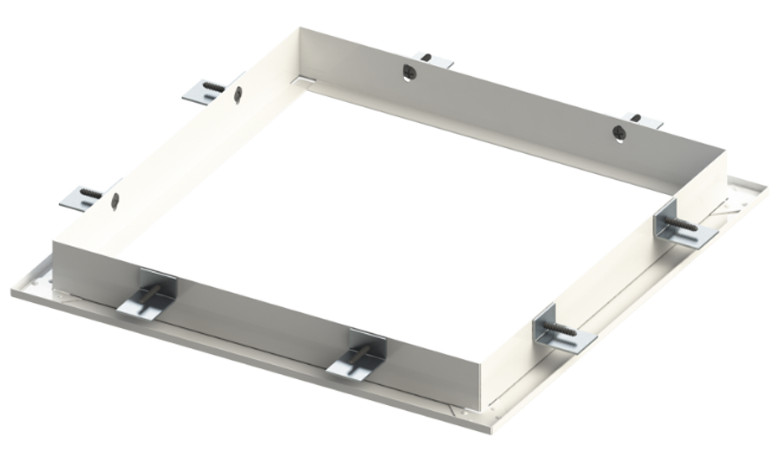

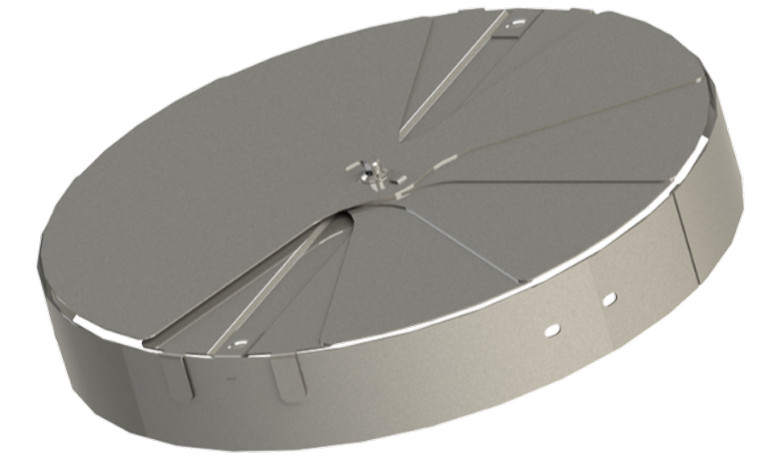

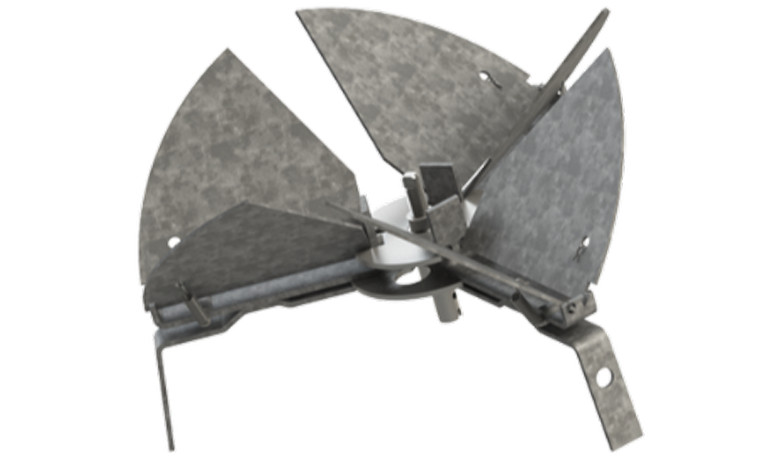

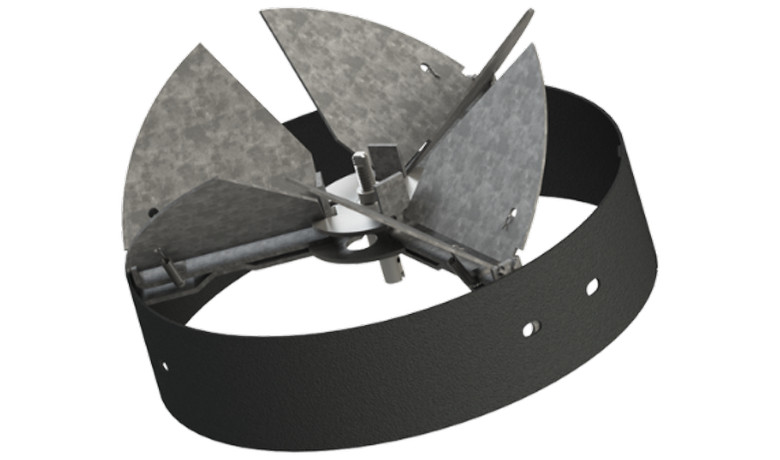

Accessories include round butterfly damper (RBN,RBD), round opposed blade damper (RON,ROD), round radial blade damper (RRN,RRD), steel plaster frame (SMF) and aluminum plaster frame (ASMF)
Optional damper must be operable from the diffuser face by removing the spring-loaded inner core assembly
The manufacturer provides published performance data tested in accordance with ANSI/ASHRAE Standard 70-1991

Comes with a removable core
Standard diffusers are fastened to the connecting duct with screws, resulting in a tight fit to the ceiling
The frames and dampers are ordered separately and shipped loose for field installation
The White (WH) electrocoat finish is in an anodic acrylic paint, baked at 315°F for 30 minutes with a pencil hardness of HB to H
