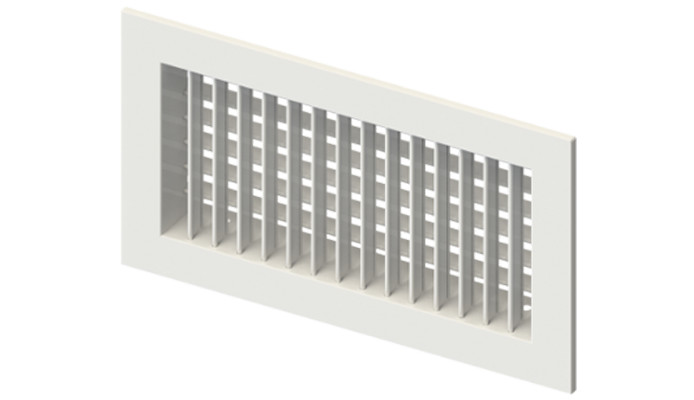

T64 Vertical Face Bars, Horizontal Rear Bars
Grilles & Registers
The two sets of deflection blades in the T64 Vertical Face Bars, Horizontal Rear Bars allow air spread to be set left or right and up or down. These streamlined blades, with 3/4” blade spacing, maintain an area capacity that reduces outlet velocity and pressure drop, ensuring a quiet operation.
- Roll-formed blades on 3/4” centers hold the deflection setting under the typical conditions of pressure and velocity
- Fitted with countersunk screw holes and mounting screws
- It can be mounted in a panel for a standard T-bar ceiling
Product Application
Benefits
The grille blades pivot with ease and allow maximum pattern deflection for your comfort.
The T64 model comes with individually adjustable blades on 3/4” centers for versatility.
Durable heavy-gauge steel construction with welded margins and reinforced mitered corners.
