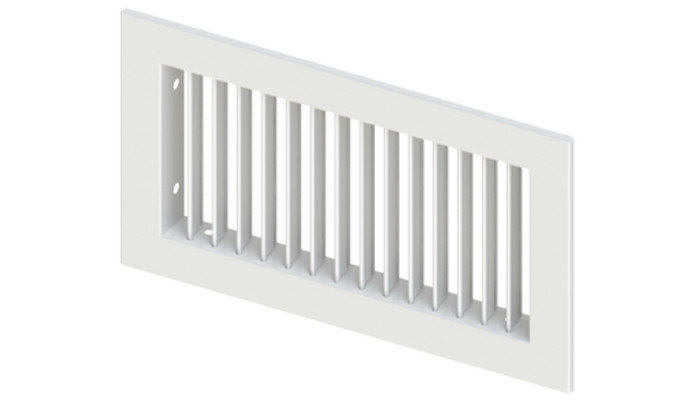

T60 Vertical Face Bars

Grilles & Registers

These face bars are available in a sturdy, 22-gauge steel construction and a White (WH) electrocoat finish on the grilles. Furthermore, the addition of countersunk screw holes ensures that the T60 Vertical Face Bars are not only robust but also have an unobtrusive appearance.

Features 1-1/4” nominal overlap margin
Roll-formed blades on 3/4” centers hold deflection setting under typical conditions of pressure and velocity
Available in an anodic acrylic paint finish that is baked at 315°F for 30 minutes with a pencil hardness of HB to H

T60 Vertical Face Bars

Product Application

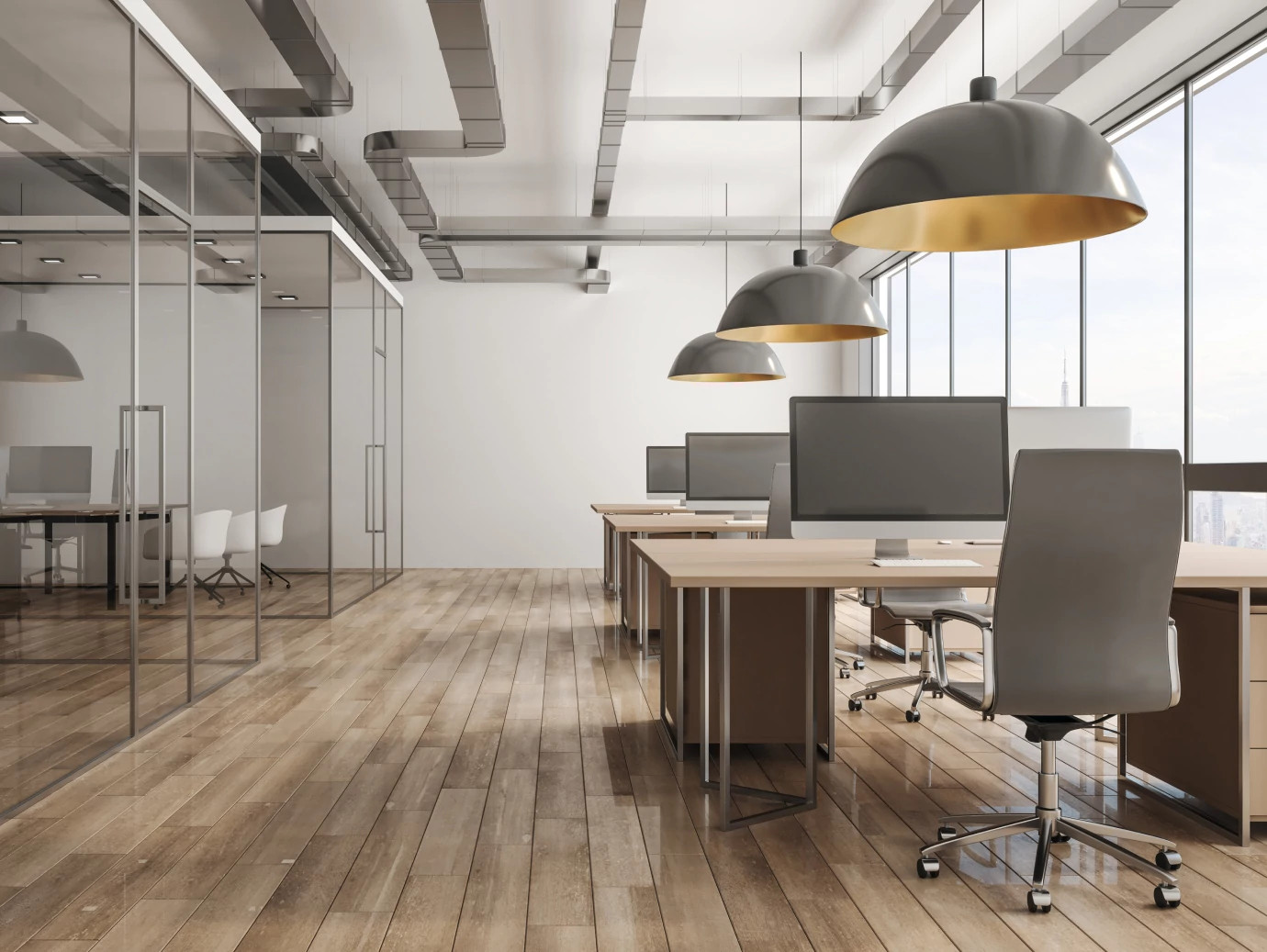

Why are supply grilles integral to the HVAC systems? And why are they so popular? Firstly, the main function of supply grilles is to cover vents and regulate the airflow into your space—this includes the ability to direct air supply to areas of your choice. With single deflection blades placed vertically, they are a no-fuss solution for rooms which require adjustability of air pattern. Another reason as to why they are so popular is because they serve a wide range of applications from office cubicles and cafés to large commercial spaces.

Features

Single deflection with individually adjustable blades on 3/4” centers

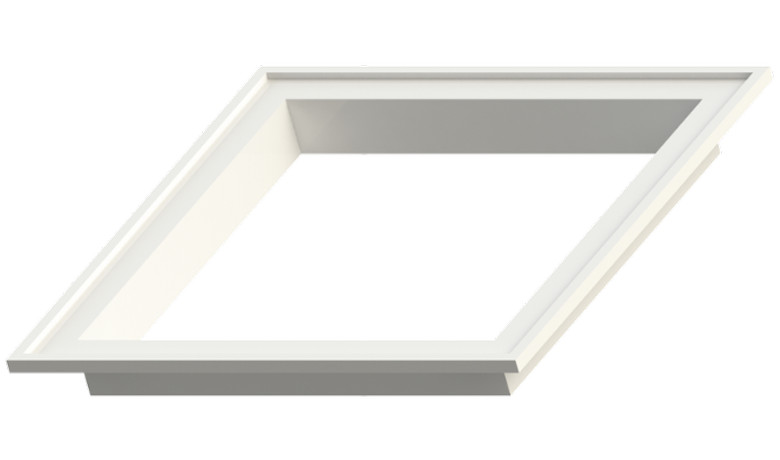

Optional steel mounting frame (45) available for use in plaster applications to facilitate grille removal

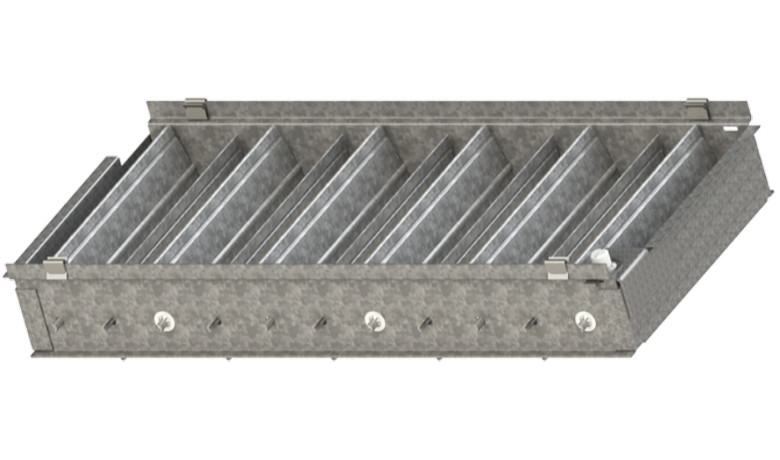

Optional steel opposed blade damper (SOBD) is factory mounted and screw driver operated from face of grille

Available sizes are 6"x4" to 48"x48" in 1” increments (larger sizes are supplied in multiple sections)
Grille blades easily pivot for maximum pattern deflection
