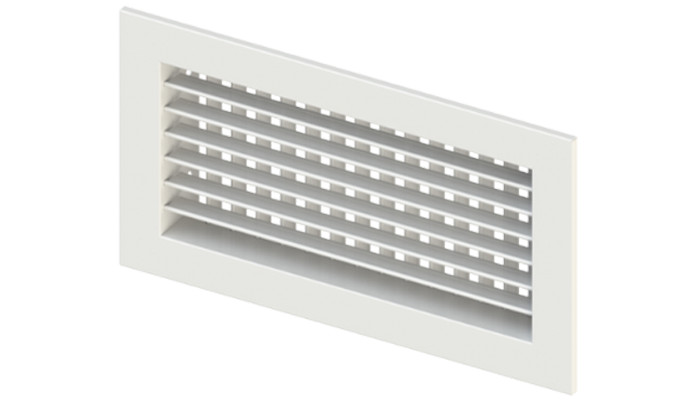

T54 Horizontal Face Bars, Vertical Rear Bars

Grilles & Registers

The two sets of deflection blades in the T54 Horizontal Face Bars, Vertical Rear Bars allow air spread to be set to left or right and up or down, for maximum versatility. These streamlined blades, with 3/4” blade spacing, maintain an area capacity that reduces outlet velocity and pressure drop, ensuring a quiet operation.

Grilles and registers can be mounted in a panel for a standard T-bar ceiling
Fitted with countersunk screw holes and mounting screws

T54 Horizontal Face Bars, Vertical Rear Bars

Product Application

While selecting a grille, you usually end up choosing functionality over aesthetics. With T54 models, you can have the best of both worlds. The double deflection blades give you more flexibility to control air flow, and the horizontal blades on the face prioritize the regulation of rise and drop of air pattern. Did we mention that the understated design goes well with any room interior? Moreover, their noiseless operation makes them perfect for auditoriums, waiting rooms, and more.

Features

Available sizes range from 6"x4" to 48"x48" in 1” increments (larger sizes are supplied in multiple sections)

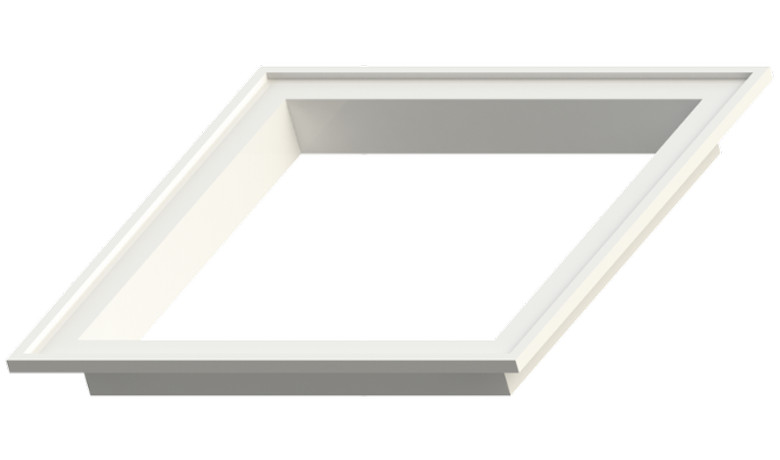

Optional steel mounting frame (45) available for use in plaster applications to facilitate grille removal

Published performance data tested in accordance with ANSI/ASHRAE Standard 70-1991 at isothermal conditions is provided

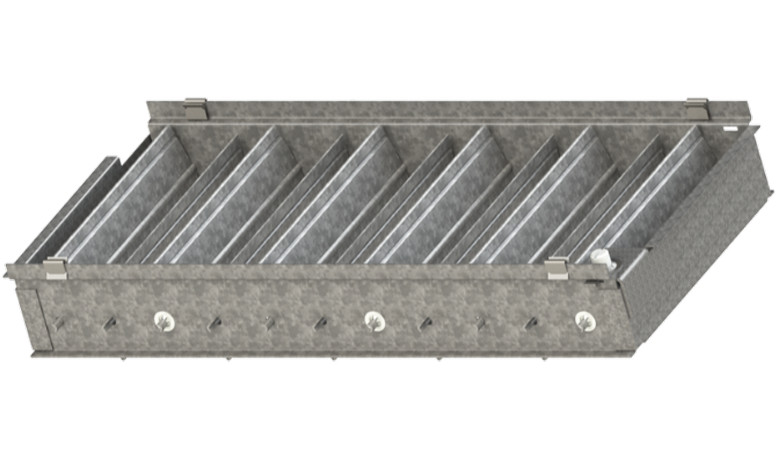

Optional steel opposed blade damper (SOBD) is factory mounted and screwdriver operated from face of grille
