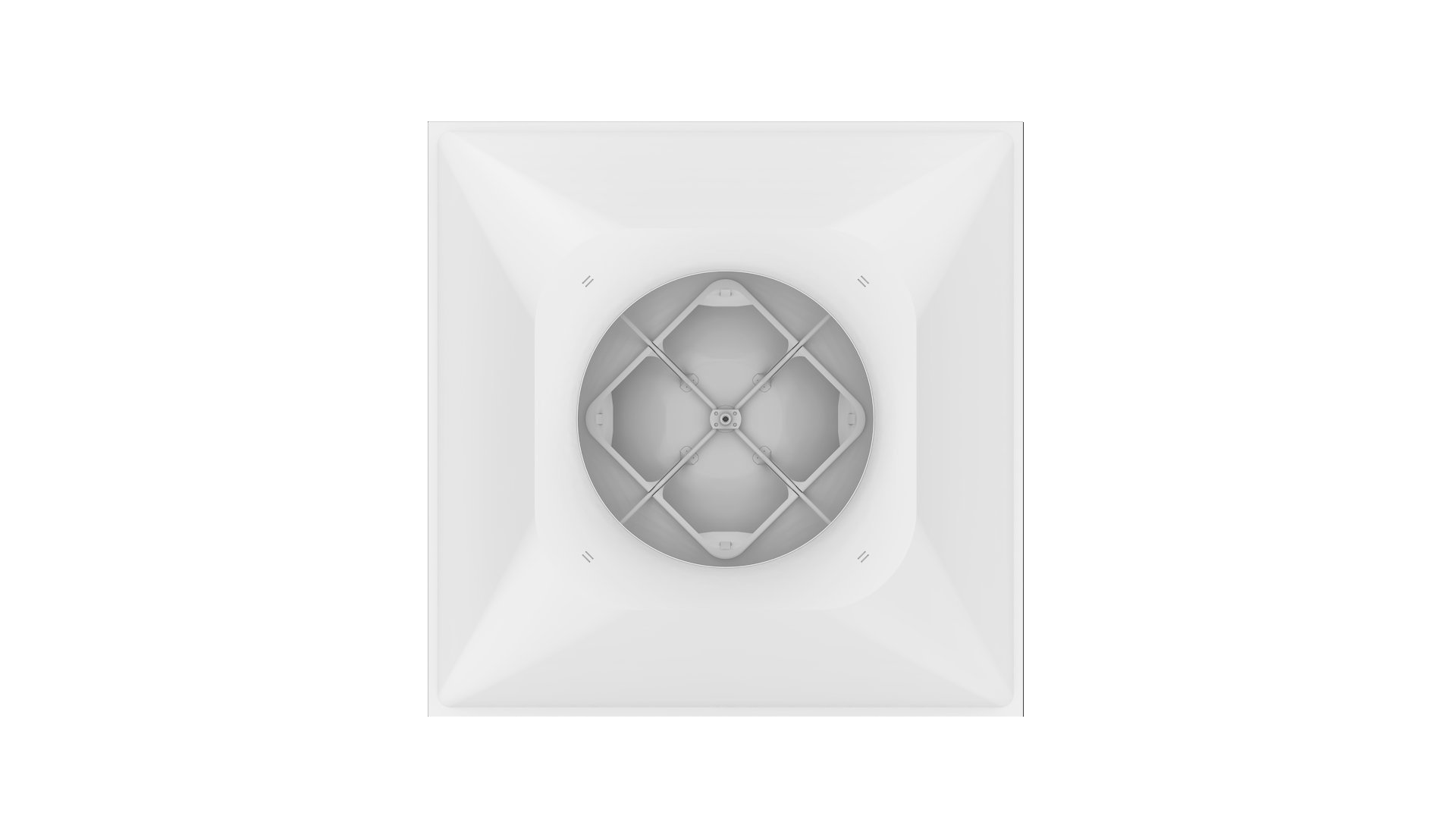

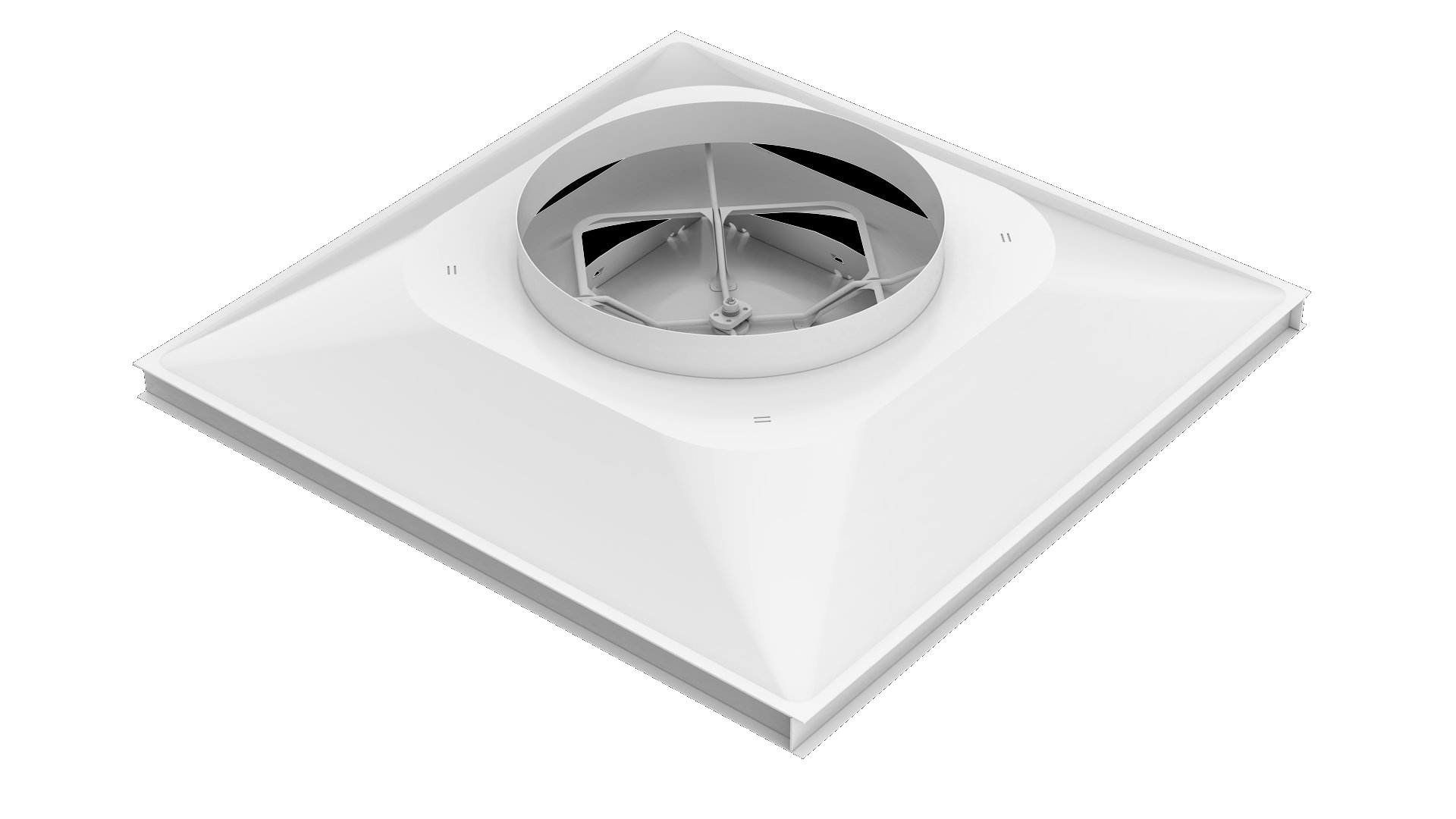

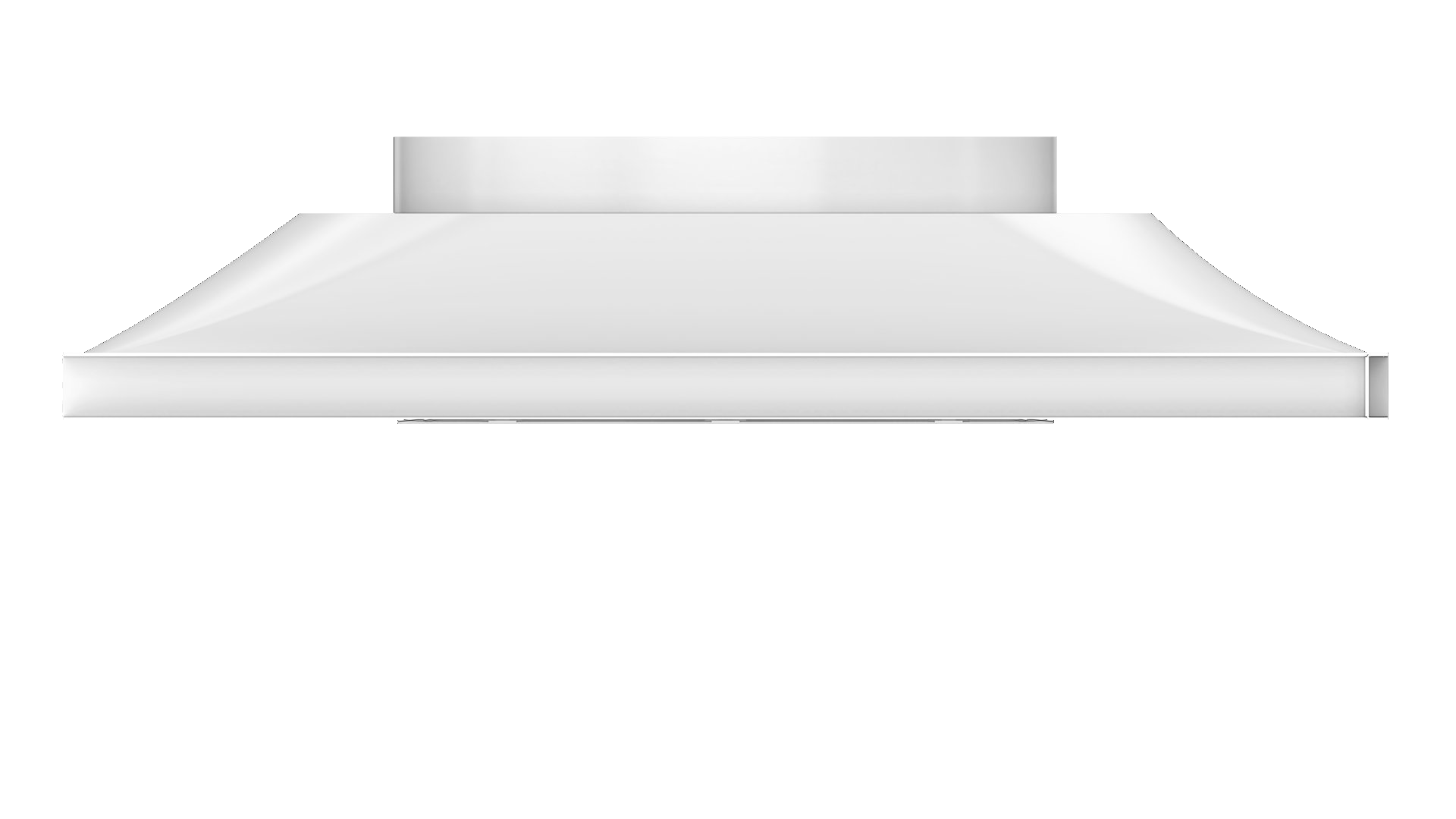

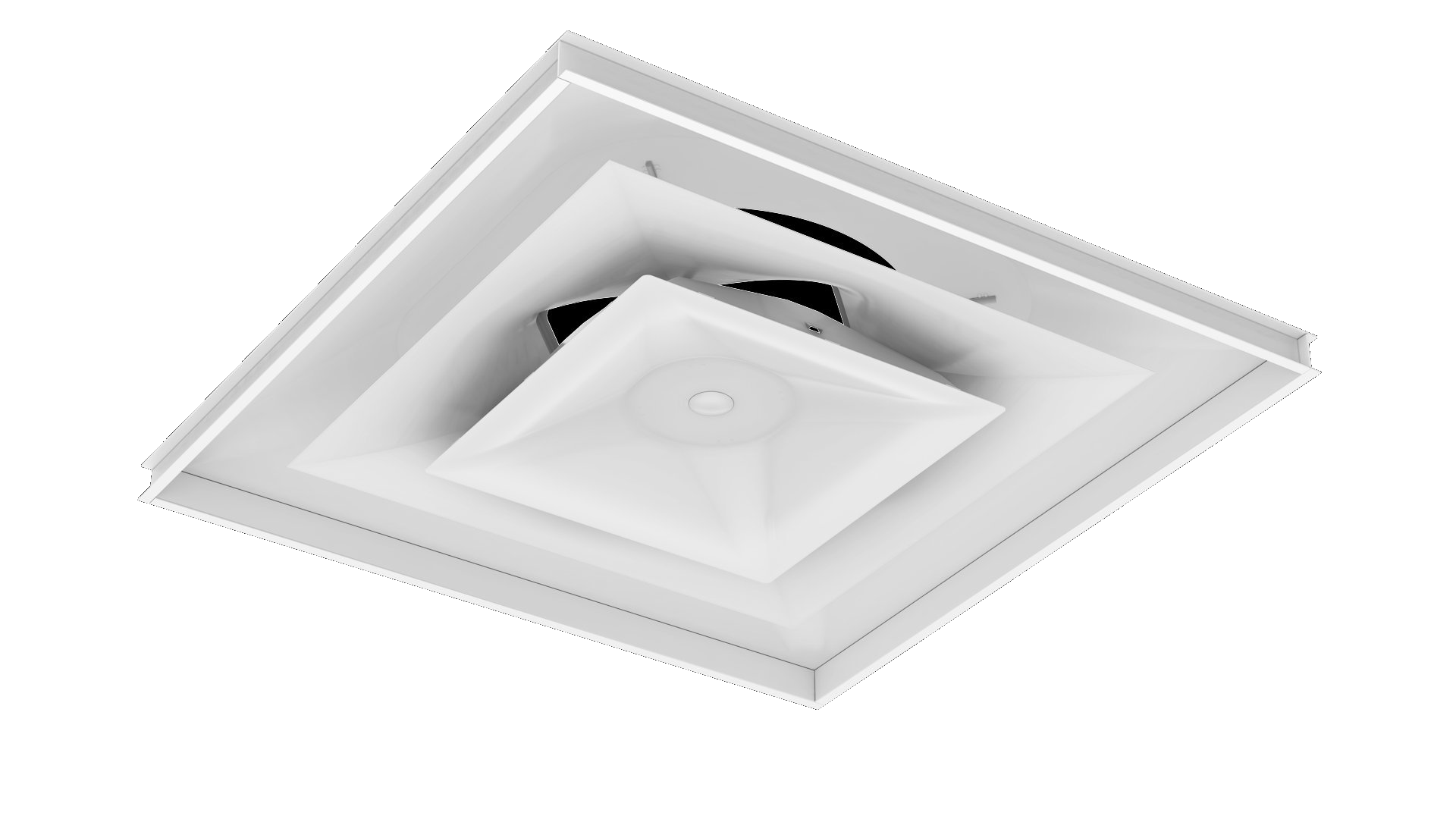

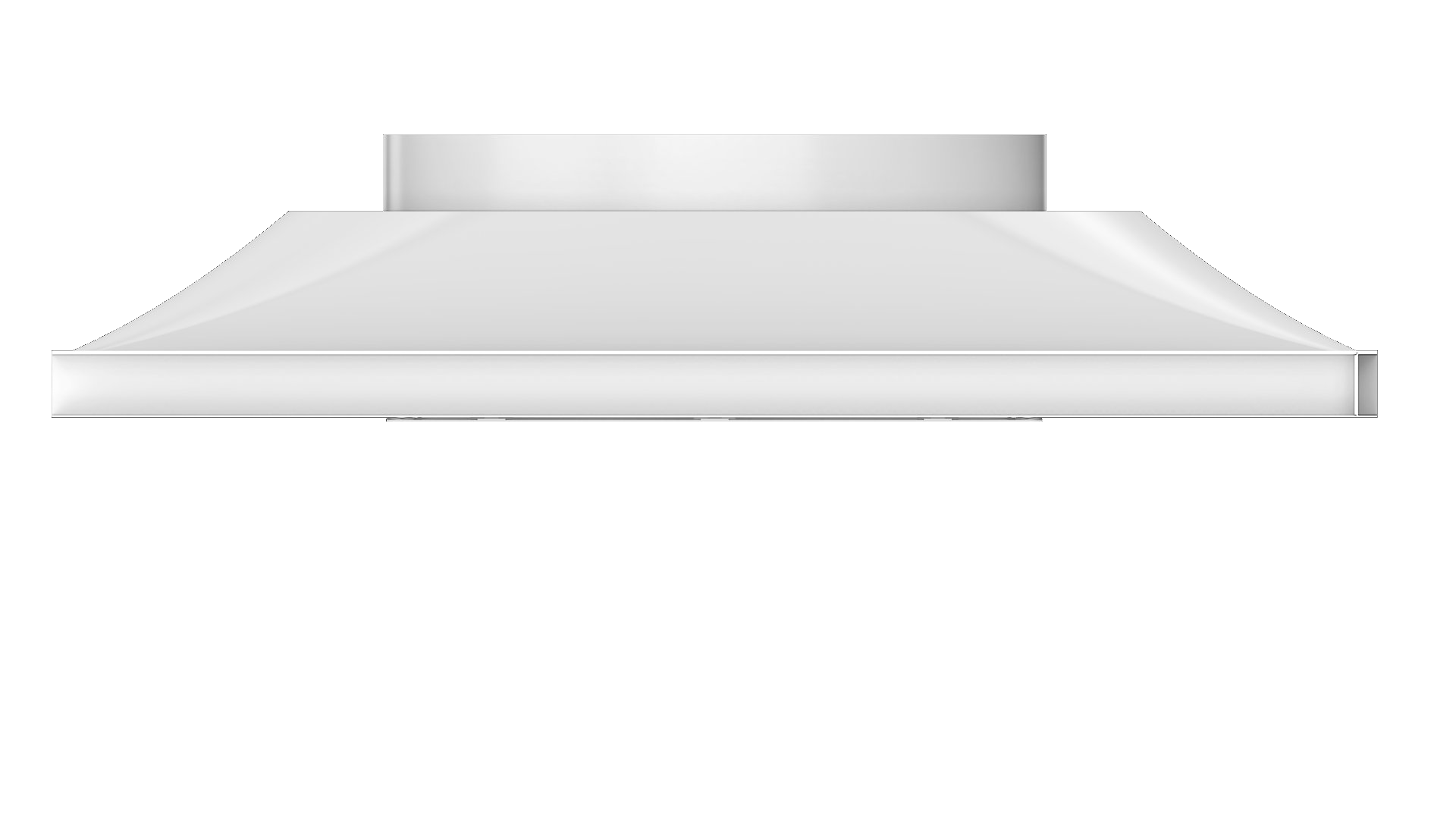

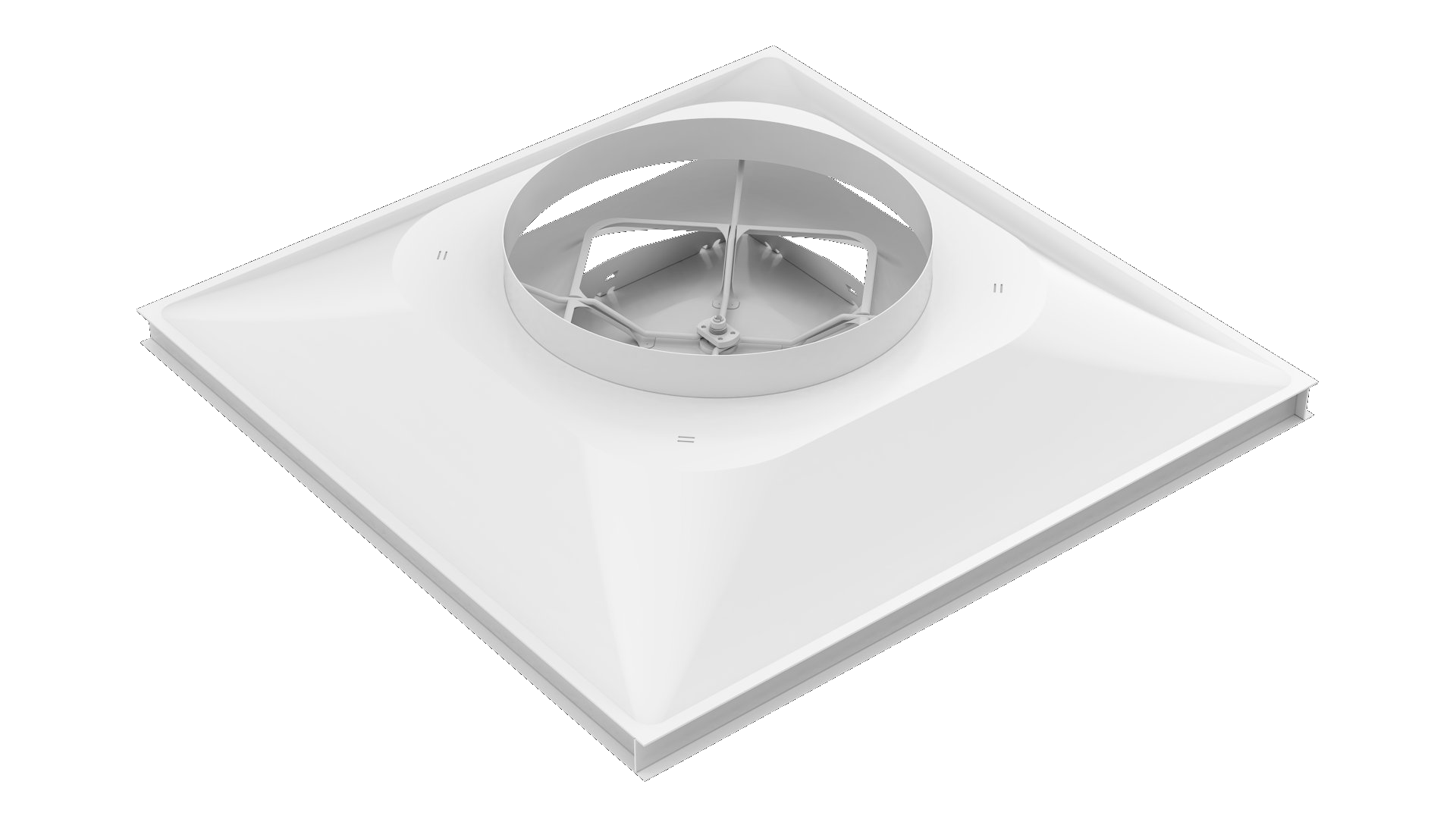

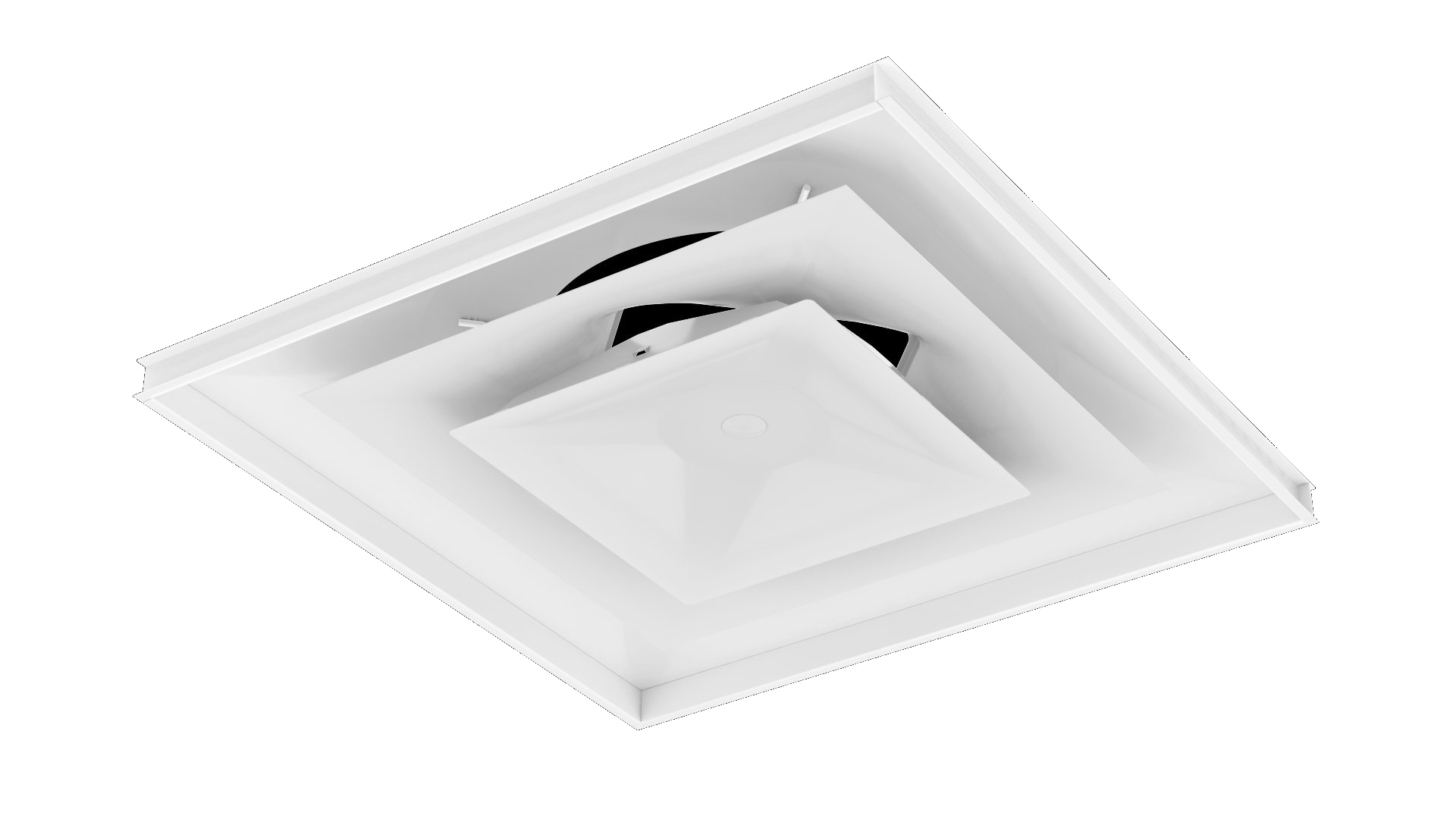

A2300 / A2300A 2-Cone Diffuser, Aluminum
Square/ Round Diffusers
The A2300 and A2300A are aluminum square ceiling diffusers that deliver supply air in a true 360° pattern with low pressure drop. The uniform, nearly horizontal jet from the outer cone maintains effective room air distribution even when the air volume varies over a considerable range. All sizes have three concentric cones, giving a uniform appearance where different neck sizes are used in the same area. The A2300 features a fixed horizontal discharge pattern, while the A2300A adds adjustable vanes to vary the discharge pattern from horizontal to vertical.
- Delivers supply air in a true 360° air pattern
- Designed to protect ceilings from streaking and smudging
- Excellent for variable air volume (VAV) systems

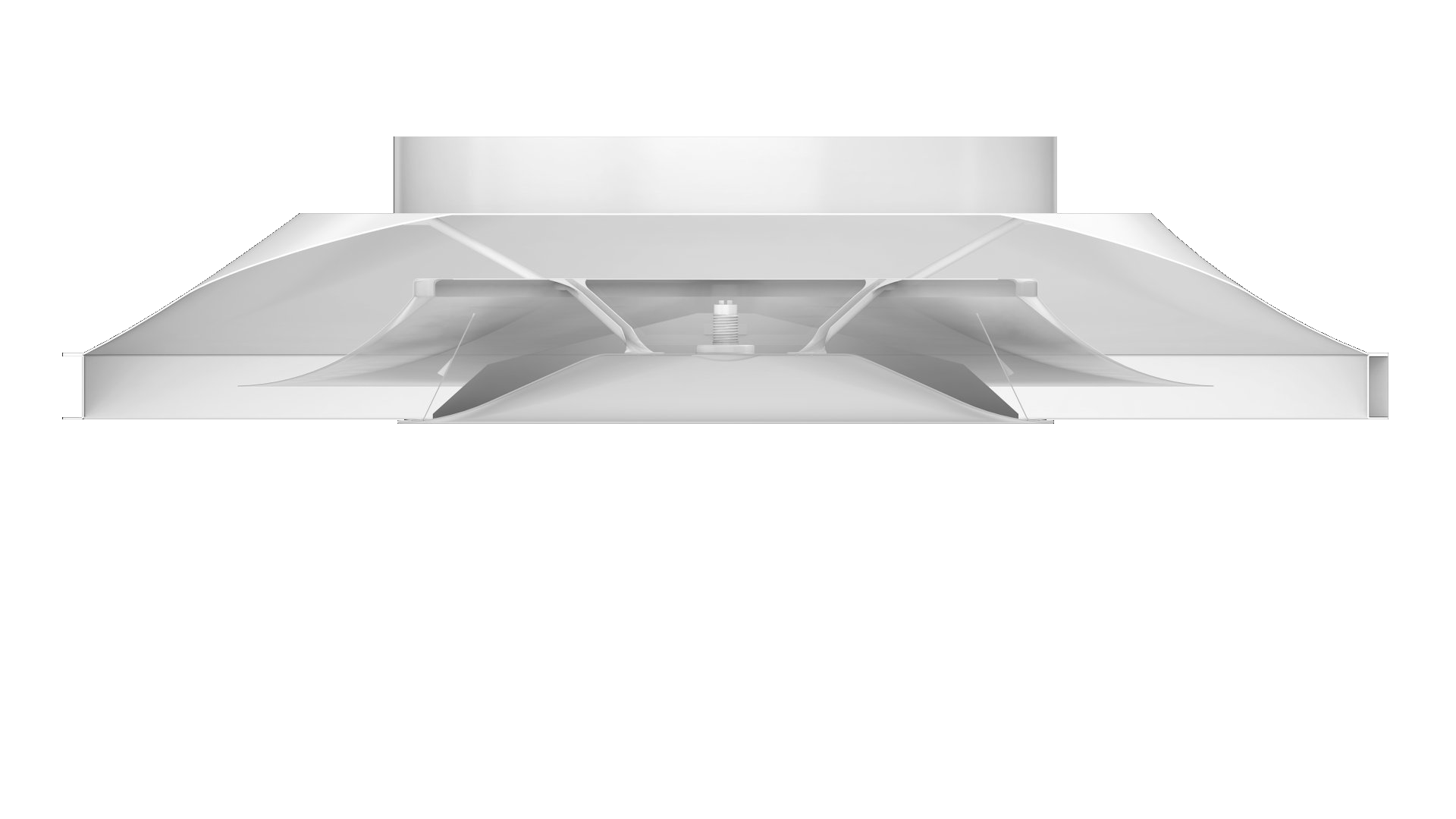

- 3-cone concentric design provides uniformity and enhances appearance
- A2300A: screwdriver-adjustable vanes for vertical-to-horizontal discharge
- Quick inner cone removal with hex key speeds installation
- Heavy gauge aluminum construction with steel bar webbing
Product Application
Benefits
The 3-cone concentric design delivers a uniform 360° air discharge pattern, ensuring optimum ventilation and consistent comfort throughout your facility.
The nearly horizontal jet from the outer cone maintains effective room air distribution even as air volume varies over a wide range — making both models ideal for variable air volume (VAV) systems.
Quick inner cone removal with a hex key speeds installation and damper access. The A2300A allows screwdriver adjustment of the optional damper without removing the inner cone.
