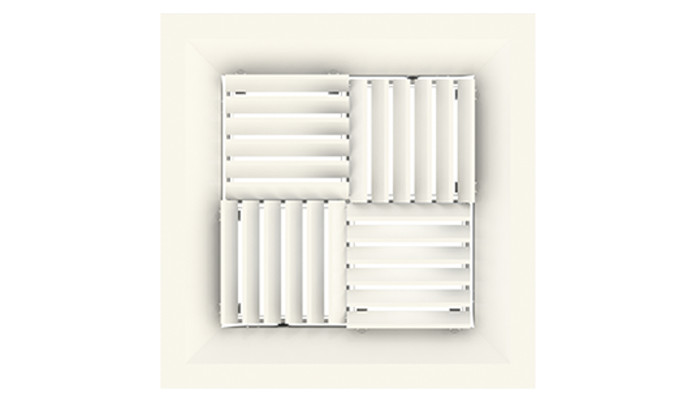

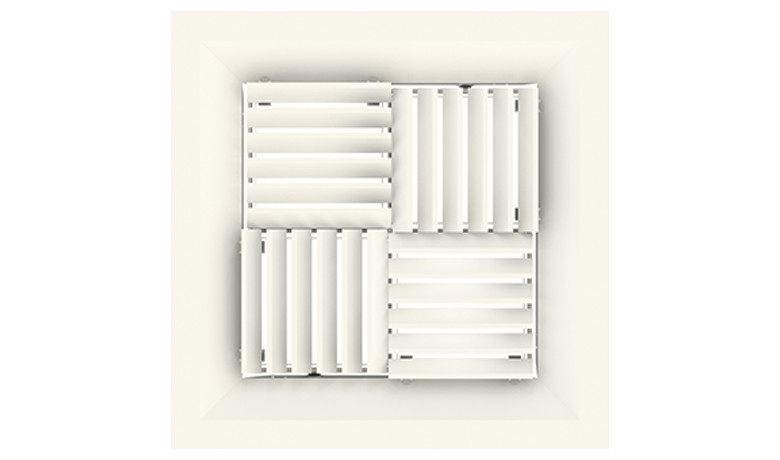

SQD Steel Modular Diffuser, Adjustable

Square/ Round Diffusers

A single unit of the SQD steel modular diffuser helps in achieving several air patterns that can be set in the field to meet unique space requirements. These diffusers also allow for a range of horizontal ceiling patterns that are highly effective for cooling applications.

The diffuser neck shall have at least 1" depth for easy duct connection
Four individual louver modules are completely removable
Individual louver modules can effortlessly be rotated in different directions to provide various pattern arrangements

SQD Steel Modular Diffuser, Adjustable

Product Application

If you are searching for a steel diffuser that offers modularity and flexibility in air pattern adjustment, our model SQD is your best bet. This high-performance diffuser lets you create a multitude of air patterns based on your facility’s requirements. It is field adjustable and allows for tool-free reconfiguration. The removable louver modules are specially designed to reduce pressure loss and for minimal see-through at all module settings. It is well suited for spaces like libraries that require ease in air pattern adjustability.

Features

The louver modules can be set in a 4, 3, 2 or 1-way air pattern
The manufacturer provides published performance data tested in accordance with ANSI/ASHRAE Standard 70-1991
The damper is operable from the face of the diffuser

Standard finish is White (WH) in an anodic acrylic paint, baked at 315°F for 30 minutes with a pencil hardness of HB to H
Available optional finishes are Mill (ML), Aluminum Paint (AP), Off-White (OW), Flat Black (FB) and Match Paint (MP)
