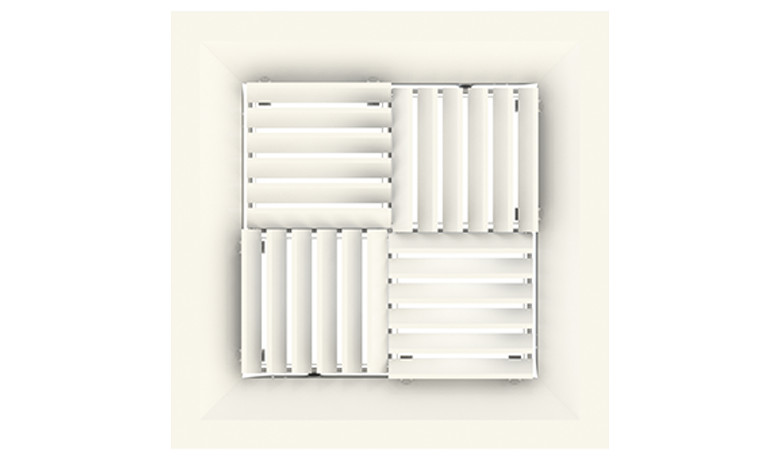

AQD Aluminum Modular Diffuser, Adjustable

Square/ Round Diffusers

The distinct design of louver modules ensures low pressure loss and minimal see-through at all module settings. The aluminum construction makes the product strong, light and versatile. Steel and aluminum dampers are also available as per your necessity.

4, 3, 2 or 1-way air pattern available for four individual louver modules
The louver modules can be removed for accessing the mounting margin and neck damper.
A single diffuser unit provides a variety of air patterns, which can be easily set in the field to meet each specific space requirement

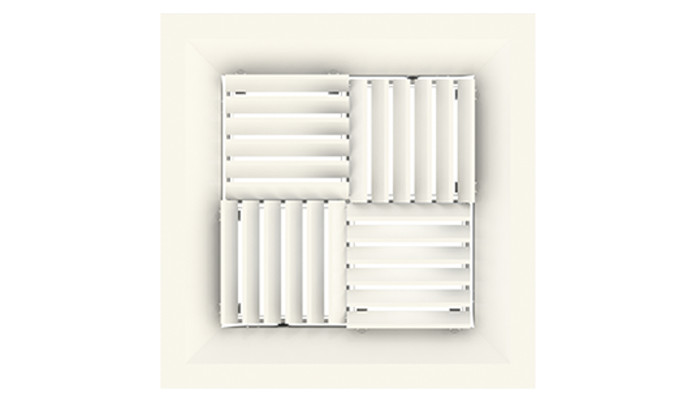

AQD Aluminum Modular Diffuser, Adjustable

Product Application

Our modular core diffuser AQD offers ease in air pattern adjustability and lets you choose patterns based on your facility’s needs. The diffuser features four individual louver modules that can be adjusted in various directions without the help of tools to provide a multitude of pattern arrangements. It creates horizontal ceiling patterns that are excellent for cooling applications and can be installed in facilities like libraries, classrooms, and office spaces.

Features

The core can be removed by applying pressure on the spring clip till it has compressed completely
Available optional finishes are Mill (ML), Aluminum Paint (AP), Off-White (OW), Flat Black (FB) and Match Paint (MP)
The manufacturer provides published performance data tested in accordance with ANSI/ASHRAE Standard 70-1991

The standard finish is White (WH) in an anodic acrylic paint, baked at 315°F for 30 minutes with a pencil hardness of HB to H
Available mounting styles include surface mount (SF), narrow regress (NR), tegular (TG), surface mount - beveled (SB) and lay-in T-bar (LT)
