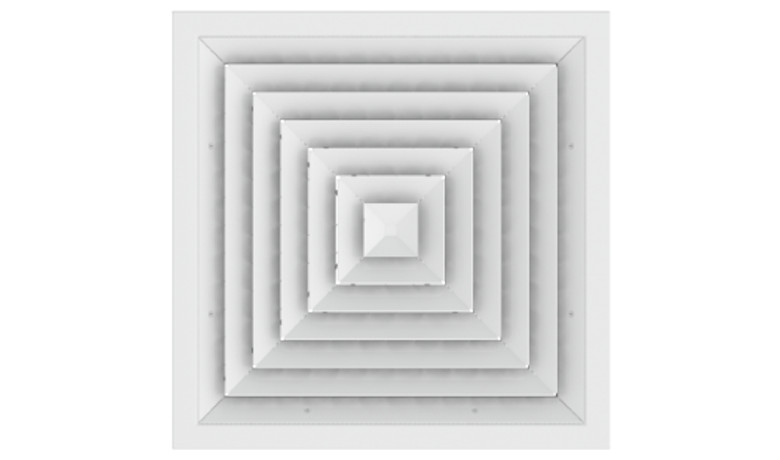

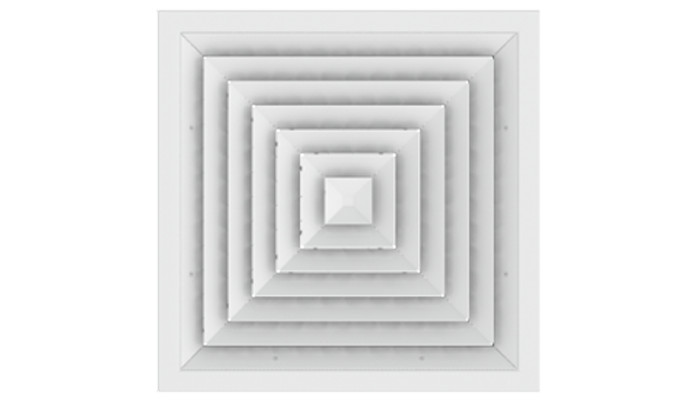

ARCO Aluminum Replacement Core Only
Square/ Round Diffusers
The core of ARCO has multi-orificed jet induction and air mixing type consisting of louver sections with built-in diffusing vanes. The vanes discharge air from adjacent louvers at 45-degree in opposite directions for rapid mixing of primary and room air.
- Removable core is available in 1, 2, 3 or 4-way diffusion patterns
- Features unique vane and louver design that adds to the rigidity of the product
- Optional shock and vibe (S&V) construction available
Product Application

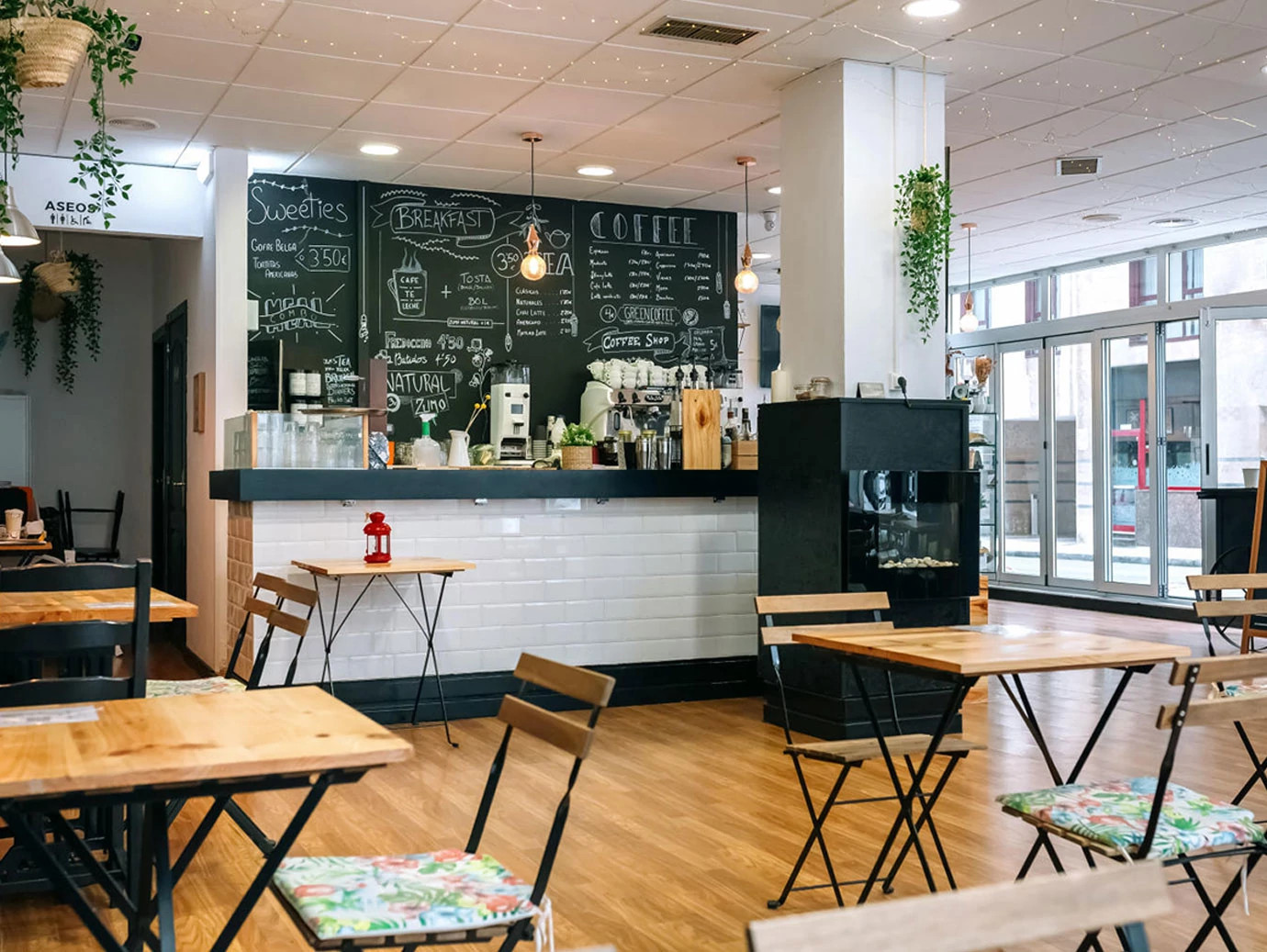

Our ARCO models are replacement cores for your diffusers. They feature a unique jet
induction and make a suitable replacement for offices, cafés, and other medium to small
spaces. The design of the diffusing vanes enables rapid mixing of primary and room air.
With a sleek white finish and a sturdy construction, ARCO makes an excellent addition to
your building’s HVAC system.
Benefits
Efficient Design
Lipless louver design increases effective area which decreases pressure drop and enhances efficiency.
Optimum Performance
Air diffusion vanes provide rapid mixing of primary and room air which provides gentle air movement.
