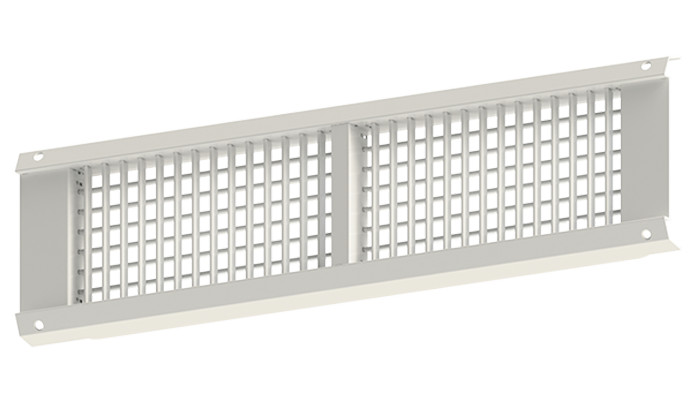

Product Image_SDA64U

SDA54 Aluminum Spiral Duct Grille Double Deflection

Specialty Products

This double deflection supply grille from the SD series features horizontal face blades and vertical rear blades. With countersunk screw holes and mounting screws, the SDA54 spiral duct grille has a clean and unobtrusive appearance that blends in with its surroundings.

Universal endcaps reduce stocking requirements
Features sturdy aluminum construction
Available in standard White (WH) finish

SDA54 Aluminum Spiral Duct Grille Double Deflection

Product Application

Save time and money on installation with our model SDA54, which is designed to mount directly on spiral ducts without the use of any transitions. This double deflection grille is versatile in application and features individually adjustable blades on 3/4" centers. The unobtrusive appearance makes this model an aesthetic choice for your spaces. It comes with curved “R” endcaps that allow flush mount to the duct and straight “U” endcaps that allow direct mounting to the duct, regardless of duct diameter.

Product Application

Features

Radius (R) or universal (U) endcap design for a clean, low-profile appearance
Horizontal face blades, vertical rear blades
Accessories include optional damper/extractor (DMPX) for balancing

Aluminum construction
Countersunk screw holes and mounting screws
Standard finish is White (WH)

Benefits

Cost-Effective Solution

Cost-effective Solution

The SDA54 grille can be mounted directly onto the spiral ducts, removing the need for duct taps and thus saving costs.

Superior Design

Superior Design

Designed with universal endcaps that accommodate a multitude of duct diameters, ensuring lower stocking requirements.

Technical Resources

Document Name

Description

Language

Resource Type

Data Sheet

SP~SDSERIES_FEA (English)

Spiral Duct Series - Spiral Duct Grilles SD Series - Features

English Data Sheet

Data Sheet

SP~SDSERIES_DIM (English)

SDA64, SDA54, SDAPG, SDA50, SDA60 - Product Dimensions

English Data Sheet

Engineering Guide

SP~SDSERIES_ENG (English)

SDA64, SDA54, SDAPG, SDA50, SDA60 - Engineering Data

English Engineering Guide

Specification Guide

SP~SDSERIES_SPC (English)

Spiral Duct Series - SD Series - Specifications

English Specification Guide

Submittal

SD-2177 (English)

Specialty Products - SDA54-U, SDA64-U Double Deflection, Aluminum Spiral Duct Grilles With Universal Endcaps - Submittal

English Submittal

Submittal

SD-2260 (English)

Specialty Products - SDA54-R/SDA64-R Double Deflection Spiral Duct Grilles With Radius Endcaps - Submittal

English Submittal
