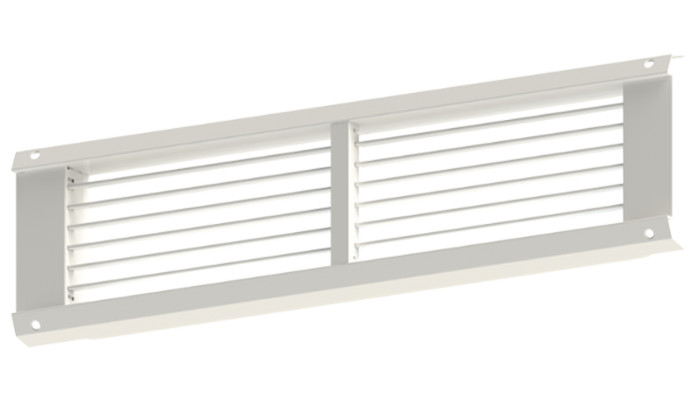

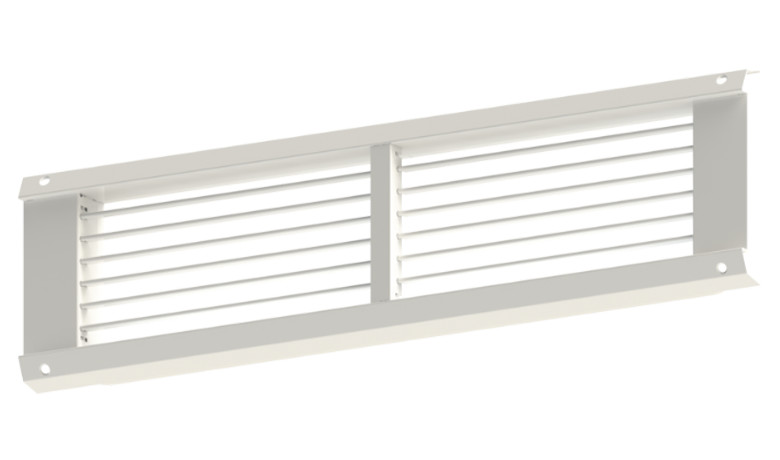

SDA50 Aluminum Spiral Duct Grille Single Deflection

Specialty Products

With individually adjustable horizontal blades on 3/4" centers, the SDA50 spiral duct grille comes with an optional damper which is operable from the front. This enhances the performance of your ventilation systems while the design blends seamlessly with any room aesthetic.

Comes in aluminum construction
Accommodates multiple duct diameters
Endcaps allow low-cost installation

SDA50 Aluminum Spiral Duct Grille Single Deflection

Product Application

Our model SDA50 helps you reduce installation cost by directly mounting on to spiral ducts without the need for transitions. This single deflection supply grille is available with either radius endcaps (R) or universal endcaps (U). Curved “R” endcaps allow flush mount to the duct while straight “U” endcaps allow direct mounting to the duct regardless of duct diameter. The model has a low-profile appearance, helping it blend in with the environment without being obtrusive.

Features

Clean, low-profile appearance and reduced installation costs
Available optional finishes are Aluminum Paint (AP), Off White (OW), Flat Black (FB) and Match Paint (MP)
Optional damper/extractor (DMPX) is available as an accessory for balancing

Standard finish is White (WH)
Published performance data tested in accordance with ANSI/ASHRAE Standard 70-1991 at isothermal conditions is available
Available with horizontal face blades
