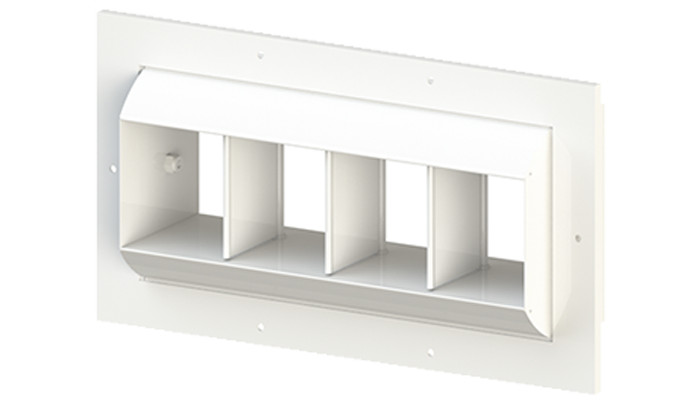

STRJ Roto-Jet Single Vane Drum Grille

Specialty Products

Offering flexibility of orientation at the time of installation in horizontal or vertical, STRJ Roto-Jet® Single Vane Drum grilles have a versatile design. They come with a gasket locked into a frame channel for a positive seal around the barrel to prevent air leakage and energy loss.

Unit has aluminum construction and employs some steel hardware
Can be installed in either horizontal or vertical orientations depending on the installation conditions
Best suited for areas requiring long or short throws like theaters, convention halls, and factories

STRJ Roto-Jet Single Vane Drum Grille

Product Application

An efficient system elevates the air distribution in your facility by manifold. STRJ Roto-Jet® drum grille is an excellent choice for large facilities like theatres, factories, and shopping centers. It offers maximum versatility in air pattern adjustment and ensures that conditioned air reaches every part of your large facility. You can also control the length and direction of the air stream with the help of the single bank of adjustment vanes featured on the grille.

Features

Available in 6”x9” to 15”x70” sizes
All frame joints are to be mechanically fastened
The rotating barrel shall be adjustable to permit the projection of air above or below the length of the unit
Integral damper consisting of steel blades in a rigid steel frame is available as an accessory. It is an opposed blade damper designed for screw driver operation. Integral damper should be used only when static pressure is 0.25 inches wc or less

STRJ Roto-Jet® drum grilles are built with a single bank of adjustment vanes that also provide control for the direction and length of air streams
Adjustment of vanes may be used to vary the lateral spread of the discharge air, rate of diffusion and mixing and distance of throw
Finish shall be Mill (ML) or White (WH)
Dampers (DMPR) (where required) are constructed of heavy-gauge steel
