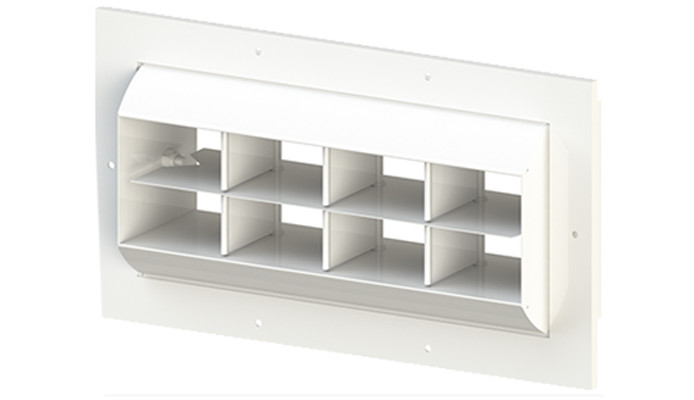

MTRJ Roto-Jet Split Vane Drum Grille

Specialty Products

The MTRJ Roto-Jet® drum grilles have a split-vane design and can produce diverging air streams, which result in rapid temperature equalization through the instantaneous mixing of primary and room air. This provides your facility an efficient air distribution process.

Throw lengths can be extended or reduced according to the vane settings
Aluminum construction ensures that the unit is moisture proof
Available in Mill (ML) and White (WH) finishes

MTRJ Roto-Jet Split Vane Drum Grille

Product Application

Finding a grille that provides flexible air patterns and thermal comfort is not difficult anymore. Tuttle & Bailey® offers the MTRJ Roto-Jet® drum grille with a split-vane design. It helps in regulating lateral spread of the discharge air, rate of diffusion and mixing, and distance of throw resulting in optimum comfort for the occupants. It is well suited for facilities like shopping centers, convention halls and factories that have large areas to be conditioned.

Features

Consists of heavy-gauge extruded aluminum frame and rotating barrel
Integral dampers – steel blades in a rigid steel frame. Integral damper should be used only when static pressure is 0.25 inches wc or less
The unit employs aluminum construction with some steel hardware and one bank of individually adjustable blades (MTRJ)
All frame joints are to be mechanically fastened

Extruded vanes are spaced on bolt pivots to firmly hold deflection settings. vanes pivot easily to reduce maximum throw by 35%
The rotating barrel shall be adjustable to permit the projection of air 30º above or below the length of the unit
Adjustment of vanes may be used to vary the lateral spread of the discharge air, rate of diffusion and mixing and distance of throw
Dampers (where required) are constructed of heavy-gauge steel
