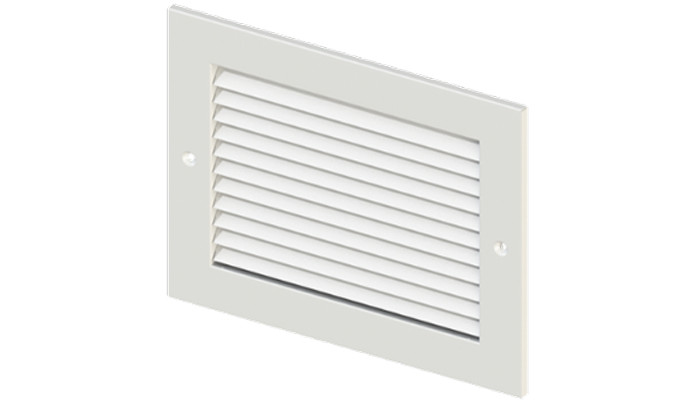

DXFR Transfer Door Grille, Steel

Grilles & Registers

With fixed horizontal "V" shaped louvers on 1/2" centers and a rigid body, the DXFR grilles can be used in place of exhaust and return grilles. DXFR grilles offer a cost-effective solution where concealing plenums and ductworks is desired.

Louvers are mechanically fastened into the side margins for extra strength
Fitted with countersunk screw holes and mounting screws
Standard finish is White (WH)

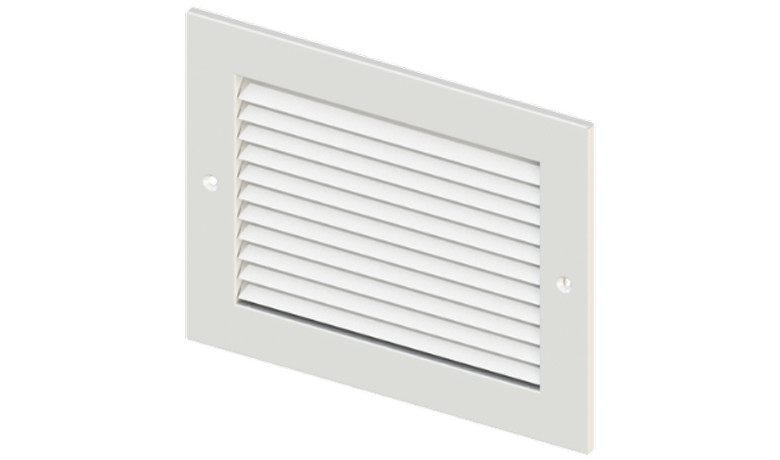

DXFR Transfer Door Grille, Steel

Product Application

DXFR transfer grille is designed with the aim of providing visual privacy and unrestricted airflow between multiple rooms. It can be installed on doors and wall partitions. The “V” shaped louvers provide a large free area which makes transfer of large volumes of air easier. This architecturally appealing grille is unobtrusive in appearance and can be used on doors separating storage rooms, kitchen, and restrooms.

Features

Comes with an auxiliary frame
Designed for installation on doors
The louvers are arranged to overlap each other to be sight tight when viewed from any angle
Finish options include White (WH), Aluminum Paint (AP), Off-White (OW), Flat Black (FB) and Match Paint (MP)

“V” shaped louvers spaced on 1/2” center
Minimum size is 6"x4" and maximum size is 30"x30". Sizes available in 1" increment
The smooth edges on the louvers present a linear face appearance which is easily maintained
