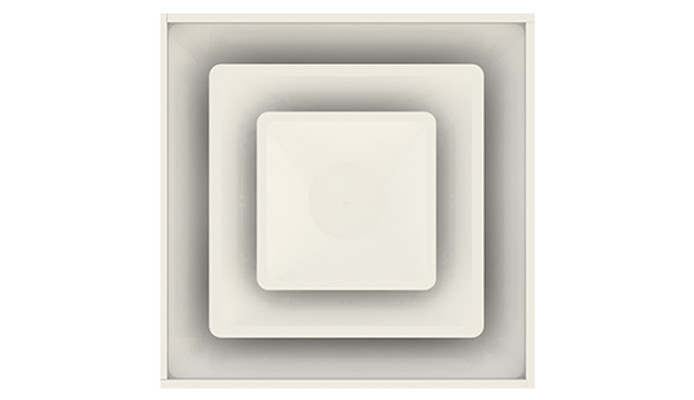

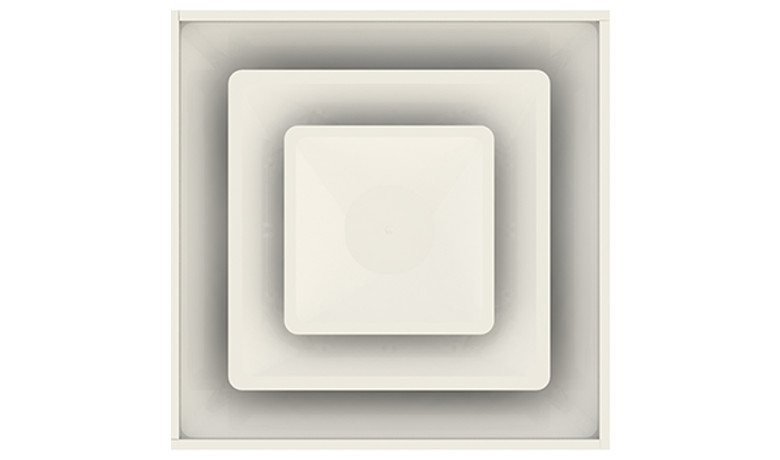

S1200 2-Cone Diffuser, Fixed, Steel

Square/ Round Diffusers

A square-faced stepdown ceiling diffuser with a round neck, the S1200 (steel, fixed) comes with earthquake tabs on all backpans. The backpan and core come in a one-piece stamped construction that gives it a smooth appearance without mitered joints.

The product features an anti-smudge design
The product features a fixed horizontal four-way air deflection and discharge pattern
Has an optional round damper that is screwdriver-adjustable through a removable plug-in center cone

S1200 2-Cone Diffuser, Fixed, Steel

Product Application

Are you in search of a ceiling diffuser with anti-smudging design? Our S1200 prevents smudging and streaking of the ceiling with stains through the accumulation of dust particles and other impurities. With this diffuser installed in your facility, you do not have to worry about the frequent maintenance of your ceilings. The full-face diffuser features a non-removable core and a fixed horizontal four-way airflow pattern. It is designed to work efficiently while mounted at the center of the ceiling and is best-suited for large areas like airport terminals and open-plan offices.

Features

Steel construction
Earthquake tabs standard on all backpans
Core is non-removable

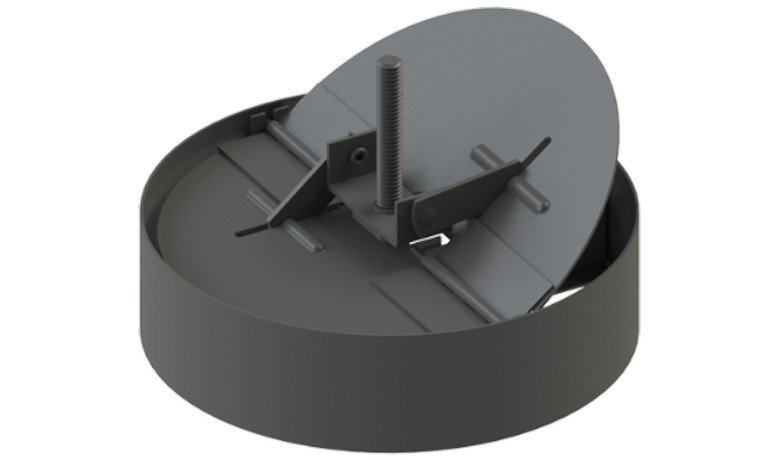

Round butterfly damper (RBD, RBN) is available as accessory

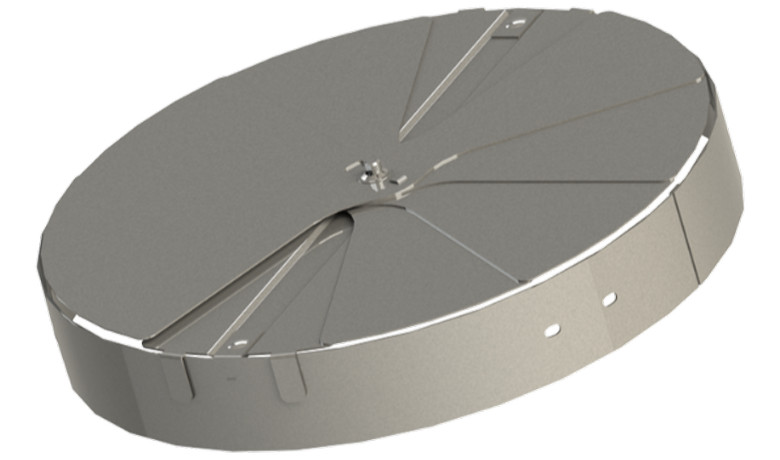

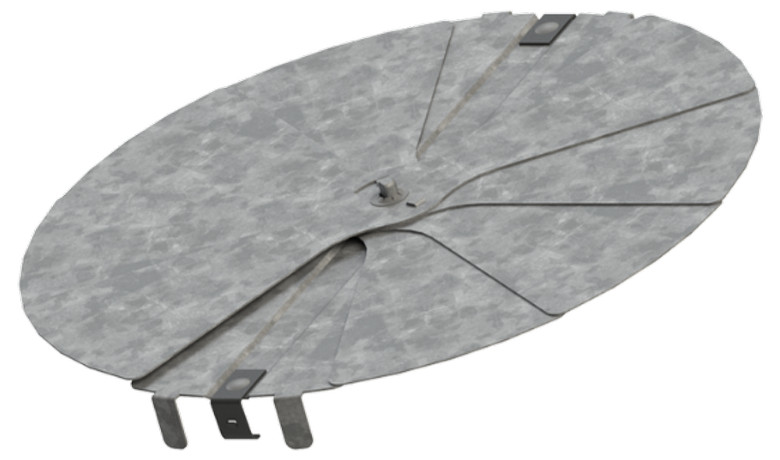

The diffuser also offers round mounted radial blade damper (RRD, RRN) as an accessory
Round dampers and pattern deflectors are ordered separately and shipped loose for field installation

Optional round damper is adjustable through a removable plug-in center cone (screwdriver adjustable)
Standard finish is White (WH). The finish shall be an anodic acrylic paint, baked at 315°F for 30 minutes with a pencil hardness of HB to H
The manufacturer shall provide published performance data tested in accordance with the ANSI/ASHRAE Standard 70-1991

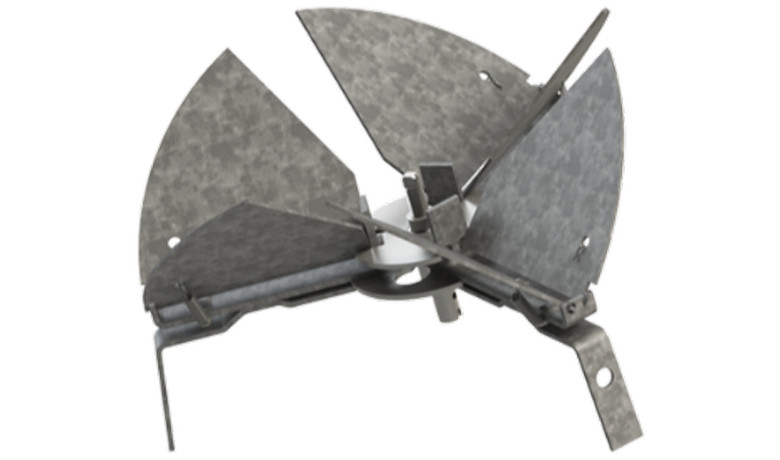

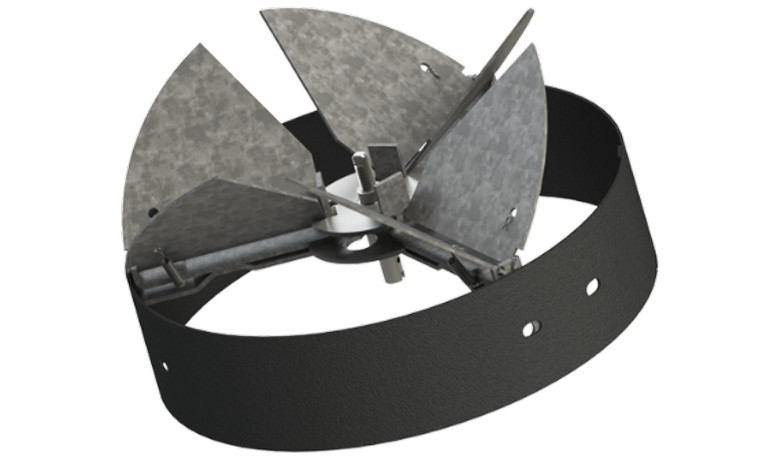

Round opposed blade damper (ROD, RON) is optional
Pattern Deflector (PD) for 1, 2 or 3-way pattern available as accessories
