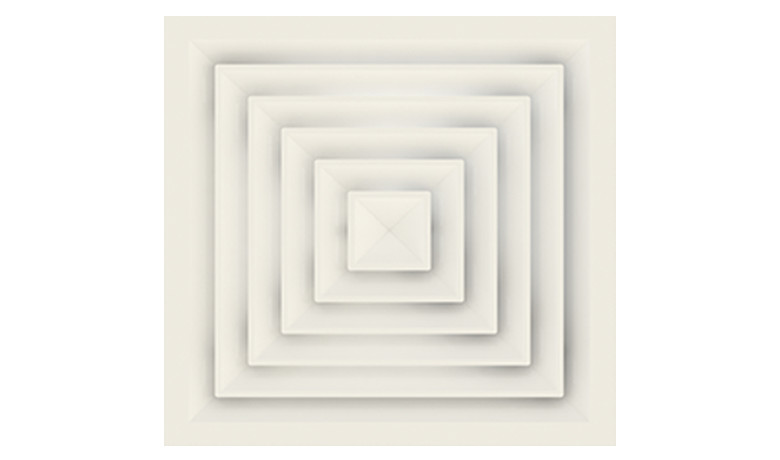

MA Steel, adjustable pattern, square / rectangular neck

Square/ Round Diffusers

With a durable aluminum construction, the MA models can be manually adjustable from the face without the use of tools. These diffusers have a removable core and their neck sizes come in 3 increments only.

The product has removable snap-in cores provide easy access to the mounting margin and neck damper
The removable snap-in center cores are interchangeable between same size margins
The standard finish is White (WH) for the MA diffuser

MA Steel, adjustable pattern, square / rectangular neck

Product Application

There are very few products in the market that offer the kind of durability and adaptability our MA models can deliver. With a sturdy aluminum construction, they are manually adjustable from the face without the hassle of using specialized tools. They also have a removable core, making installation and maintenance effortless. These diffusers are perfect for heavy-duty applications.

Features

The outer margins have the size and style to match project plans and schedules
Individual louvers have a horizontal lip to create a tight ceiling air pattern, even at reduced air flows
The manufacturer will provide published performance data tested in accordance with ANSI/ ASHRAE Standard 70-1991

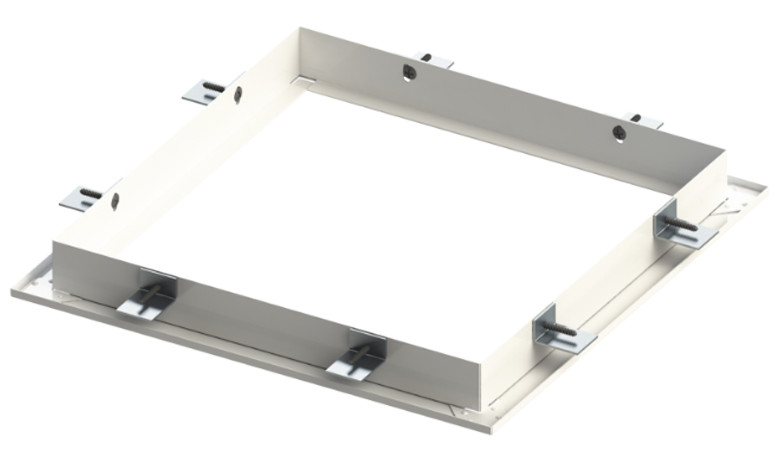

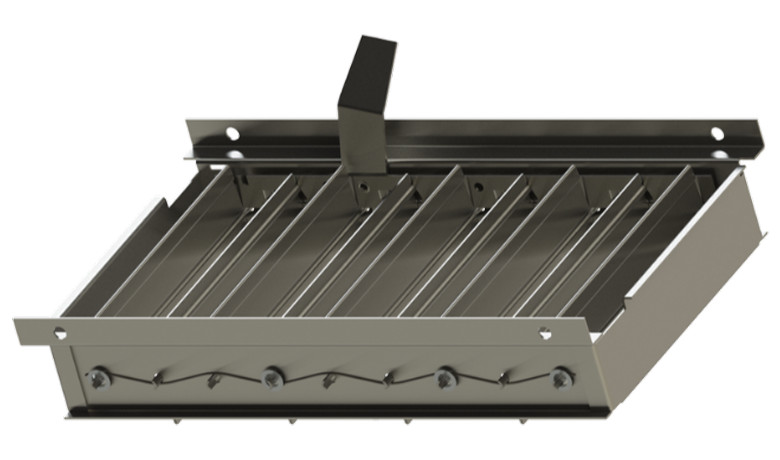

Steel Opposed Blade Dampers (SMOBD), Aluminum Opposed Blade Dampers (AMOBD), Steel Plaster Frames (SMF), Aluminum Plaster Frames (ASMF), and Square to Round Adapters (SRM) are available as accessories. Trim frames and dampers are ordered separately and shipped loose for field installation
For margins, SF and SB, neck sizes available are from 6” x 6” to 24” x 24”

A square or rectangular inlet is an integral part of the margin assembly. The inner louver assembly is flush with the outer margin with a 1, 2, 3, or 4-way directional pattern
The inner core assembly is removable in the field, without the use of tools, for easy duct access and installation
Optional finishes include Mill (ML), Aluminum Paint (AP), Off-White (OW), Flat Black (FB), and Match Paint (MP)
The optional damper (SMOBD - Steel, AMOBD - Aluminum) will be operable from the diffuser face without the need of removing the spring-loaded inner core assembly
For margins LT, PL, and YM, available neck sizes are 6” x 6”, 18” x 18”, and 21” x 18”
