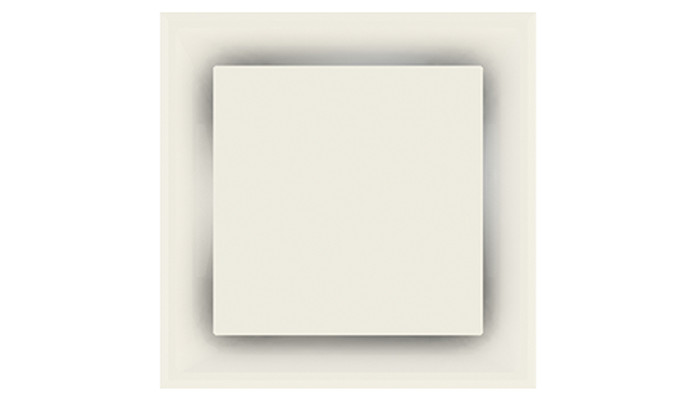

T1100 Plaque diffuser

Square/ Round Diffusers

Carefully engineered and expertly designed, the T1100 plaque diffusers offer excellent performance while being perfect for critical aesthetic applications. These diffusers have dual-thickness metal resulting in a clean appearance thanks to the absence of spot welds and rivets.

The T1100 has a double thickness center plate void of any visual spot welds or rivets
Full face diffuser with five different margin styles
The product has an integral round collar for easy flex duct connections and the T1100BK Blank-off baffles are accessories that help convert air patterns to 1-way, 2-way or 3-way

T1100 Plaque diffuser

Product Application

Looking for a diffuser that fits flush with the ceiling and without disturbing the carefully designed aesthetics of your facility? T1100 Plaque Diffuser is a full-face diffuser, suitable for VAV systems. It delivers a uniform, 360-degree horizontal air pattern with reduced pressure drop and minimum noise generation. The center panel is removable making access to the damper easy and maintenance hassle-free. It is well-suited for application in universities, schools, and libraries.

Features

Standard finish is White (WH)
Other accessories include: Blankoff baffles (T1100BK- steel), earthquake tabs and Molded R-6 Insulation Blanket

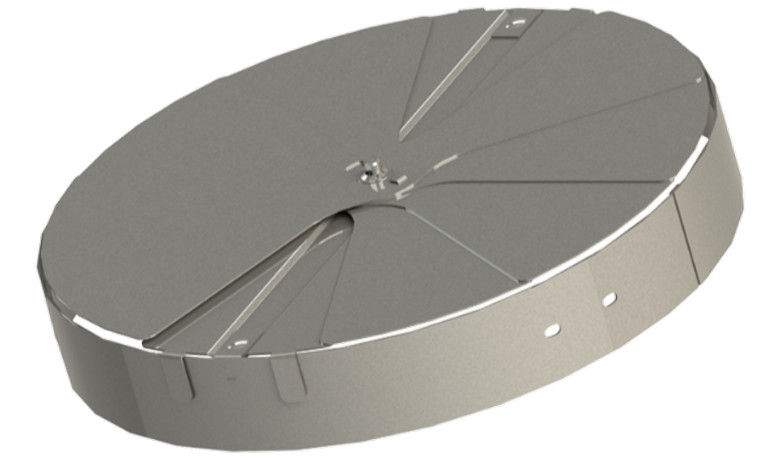

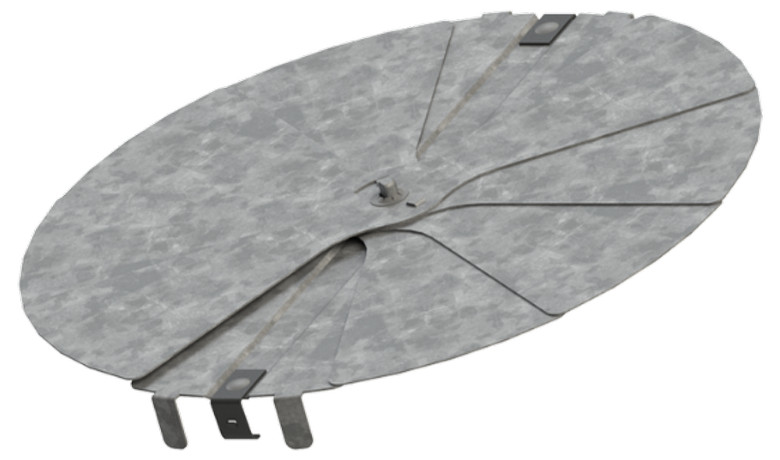

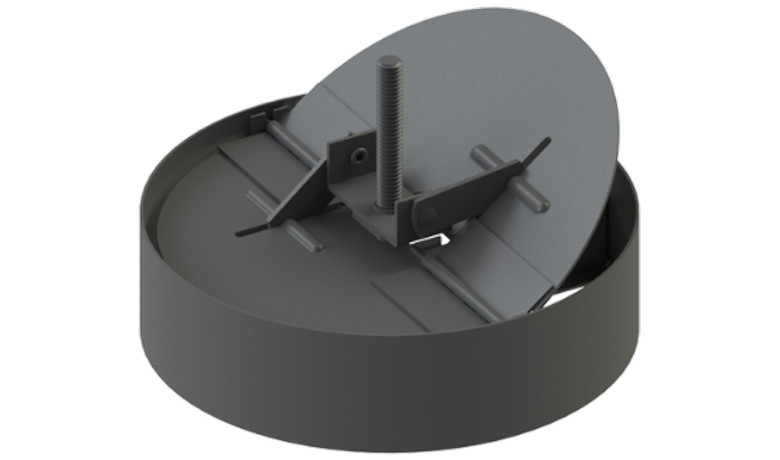

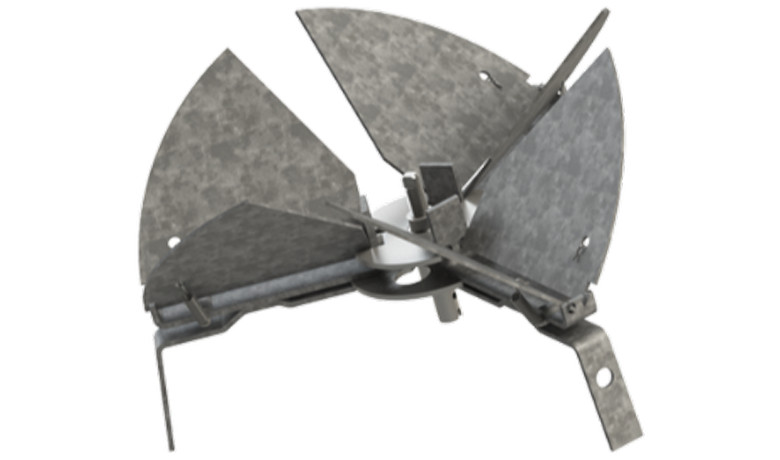

Available dampers include: Round Butterfly Damper (RBN, RBD), Round Opposed Blade Damper (RON, ROD) and Round Radial Blade Damper (RRN, RRD)
Dual thickness prevents visual spot welds or rivets
