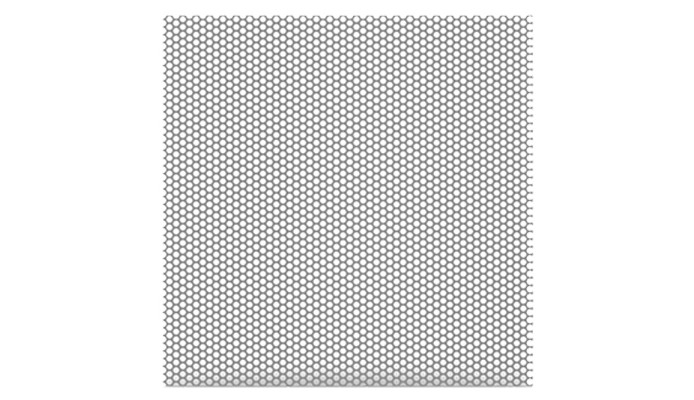

APTL Perforated Diffuser Return Panel, Aluminum
Perforated Diffusers
It is best suited for open-air return applications, where ducts are not required. Model APTL features a perforated face that provides a free area of at least 51%. The face has 3/16" diameter holes on 1/4" staggered centers.
- The aluminum construction ensures the durability of the product
- Recommended for T-bar ceiling systems
- Performance tested in accordance with ANSI/ASHRAE Standard 70-1991 at isothermal conditions
Product Application
Enhance the air distribution in your facility with our APTL perforated panel. It is
specially designed for non-ducted, open-air return applications. The large free area
offered by the perforation facilitates smooth air flow. It is ideal for standard T-bar
ceiling applications. This return panel is also MRI-safe making it suitable for MRI
rooms.
Benefits
Minimum Noise
Designed as per industry standards to emit minimum noise, ensuring peak comfort.
Easy Maintenance
Face can be easily removed using quick-release latches, making maintenance easier.
