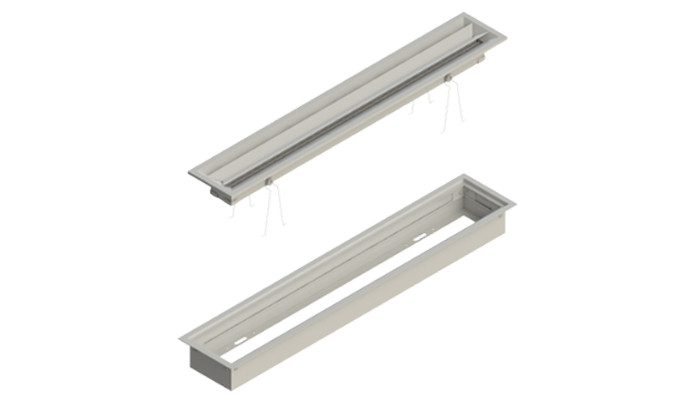

EHLT Louvered Linear Diffuser, Mixing Vanes, 1 or 2-Way Deflection, Aluminum, with Lay-in T-Bar Mounting Frame

Linear/ Slot Diffusers

The discharge in EHLT Agitair® Stripline® diffusers occurs parallelly to the mounting surface, which can be accessed in one or two directional air discharge patterns. They are designed to effectively diffuse a thin blanket of air from elongated slots over a wide area.

The cores are easily removable from the lay-in T-Bar frame
Frames have slots to accept the coil mounting springs installed on the diffuser
Have excellent throw characteristics

EHLT Louvered Linear Diffuser, Mixing Vanes, 1 or 2-Way Deflection, Aluminum, with Lay-in T-Bar Mounting Frame

Product Application

If diffusers are not installed properly, they not only deliver a sub-par performance, but also have a shabby appearance. This is a problem particularly in hotels, restaurants and office lobbies where looks are important—to make an impression on clients and patrons alike. EHLT Agitair® Stripline® diffusers make installation and maintenance effortless with easy-to-install and removable cores (for LT frames) and alignment spacers for the perfect calibration.

Features

Its key aspects are rapid mixing and complete temperature equalization
It facilitates reduced inlet pressure loss and noise characteristics
Its accessories are frames, mitered corner sections and optional distribution plenum (DP)
Integral directional deflectors for 1 or 2-way horizontal patterns
These directional linear diffusers are available with 3 to 36 rows in 3 row increments

Eliminates drafts and has an architecturally appealing design
Available in White (WH) paint finish
The diffuser efficiency must be such that the initial temperature differential shall be reduced by 50% at a distance one foot from the point of discharge
Maximum one-piece length available is 72". Multiple sections keyed with splice plates for proper alignment
