A62 Vertical Face Bars, Shutter Damper

Grilles & Registers

Enhanced with a multi-louver (gang-operated) shutter damper, the A62 Vertical Face Bars supply grille has individually adjustable front blades on 3/4" centers. It features countersunk screw holes to provide a clean, unobtrusive appearance.

Comes with a lever operator for adjustment from the face of register
Grille blades pivot with ease for maximum pattern deflection

A62 Vertical Face Bars, Shutter Damper

Product Application

Aluminum is an incredibly versatile metal. It is light-weight, yet offers a kind of durability that makes it a popular material for grilles. The A62 models are constructed of high-quality aluminum, which allow you to get the most out of these grilles—ease of transport and installation, efficiency of cost, and longevity. These are single deflection grilles that are equipped with shutter dampers to help reduce noise and also aid in controlling the airflow into your space. They are perfect for a wide range of applications including hotels, industrial establishments and offices.

Features

These dampers are lever operated from the face of the register
Optional aluminum mounting frame (A45) available for use in plaster applications

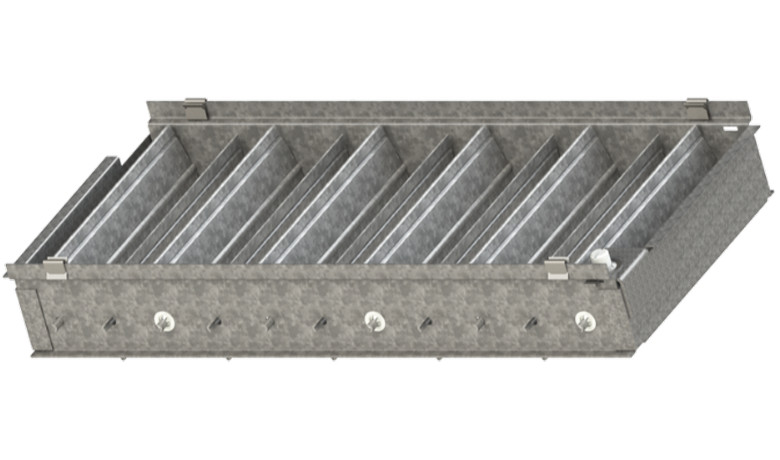

Optional aluminum opposed blade damper (AOBD) is factory mounted and screwdriver operated from face of grille (Steel SOBD available)
Finish shall be a White (WH) electrocoat finish. The finish shall be an anodic acrylic paint, baked at 315°F for 30 minutes with a pencil hardness of HB to H
