T125 Heavy Duty Series - Supply

Grilles & Registers

Built with 14-gauge steel blades and an 18-gauge steel margin with a 1-1/4" wide border on all sides and mitered corners, the T125 grilles are a force to reckon with. They come with support bars on 8" centers and feature single deflection with blades spaced on 1/2" centers.

Product available in 1" increments of width and height
Individually adjustable blades hold deflection setting under typical conditions of pressure and velocity
Optional damper (SOBD) can be adjusted from the face of the grille with the help of a screwdriver

T125 Heavy Duty Series - Supply

Product Application

If you own facilities like gymnasiums, factories and warehouses that are prone to damages due to heavy-duty applications, we are here to help you. T125 Heavy Duty Series – Supply grille is designed to endure damage in areas requiring impact resistance. No matter the degree of the impact, our sturdy grille is sure to provide unparalleled performance. It will also save you time and money on maintenance.

Features

Surface mount margin is available
The T125 is a single deflection supply grille with individually adjustable blades spaced on 1/2” centers (factory set at 0-degree deflection)
The grille shall be available with horizontal (H) or vertical (V) blades

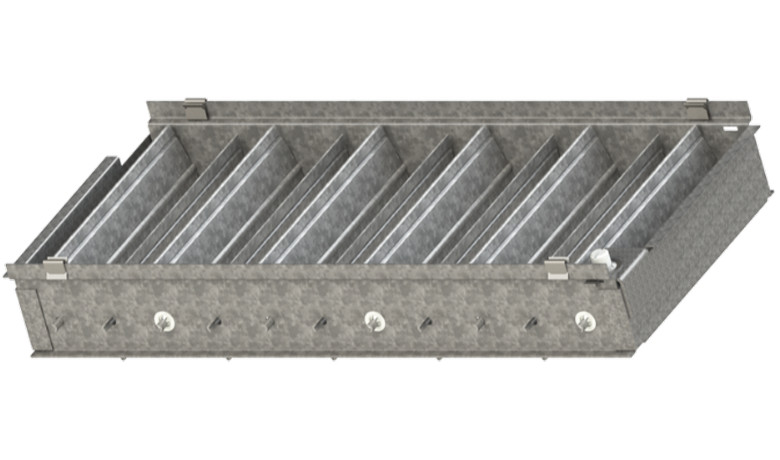

Optional steel opposed blade damper (SOBD) is factory mounted and screwdriver operated from the face of grille; used for volume adjustment

Sizes greater than 48"x48" are supplied in multiple sections
The steel construction consists of a steel 18-gauge margin with 14-gauge blades

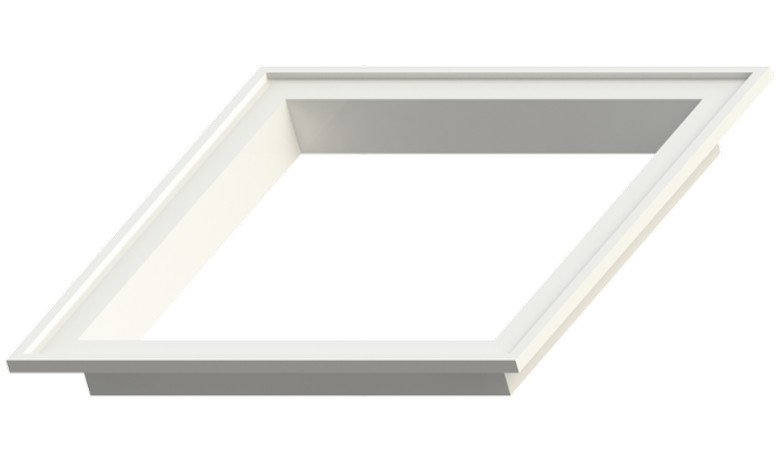

Optional steel mounting frame (45) available for use in plaster applications to facilitate grille removal
