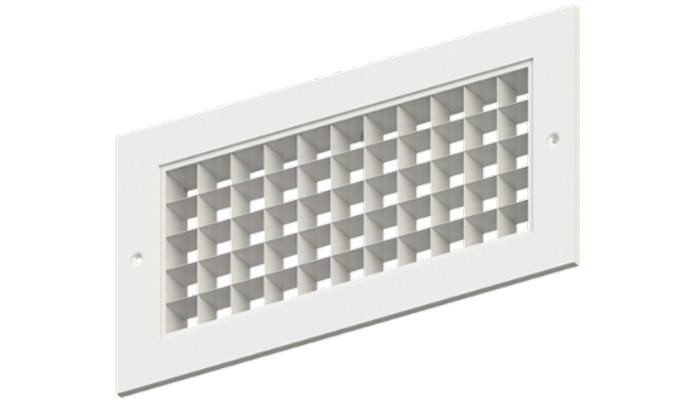

CRE1000 1x1x1 Core

Grilles & Registers

The heavy extruded aluminum margin gives a 1-1/4" wide border on all sides. Its grid cores can transfer or return high air volumes at minimum pressure requirements. The countersunk screw holes available in the grilles give it a clean, unobtrusive appearance.

Has White (WH) electrocoat finish.
The finish in anodic acrylic paint is baked at 315°F for 30 minutes with a pencil hardness of HB to H.
CRE series has aluminum margins with aluminum grid cores

CRE1000 1x1x1 Core

Product Application

Our model CRE1000 is built for high-capacity return applications in commercial spaces. It is capable of returning large volumes of air without creating large pressure drop and noise generation. This ensures comfort in the occupied zone. It is designed for easy installation in lay-in T-bar openings in suspended grid ceilings and overlap openings in hard ceilings and walls. Choose this ultimate solution for your large facilities like warehouses, malls, and office buildings.

Features

Construction consists of a grid core: 1”x1”x1” (CRE1000) and a heavy extruded aluminum margin
1-1/4” nominal overlap margin
Furnished with countersunk screw holes and mounting screws

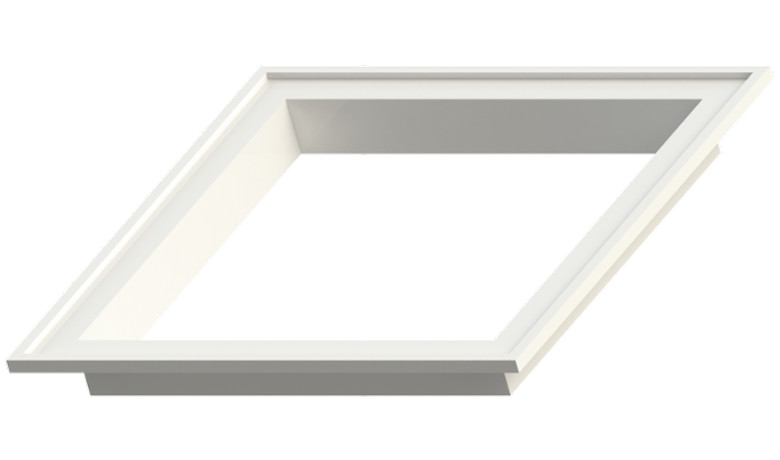

Optional steel mounting frame (45) available for use in plaster applications to facilitate grille removal

Available margins include Surface Mount (SF) and lay-in T-bar (LT)
Grid and core: Aluminum construction (CRE and CR series)

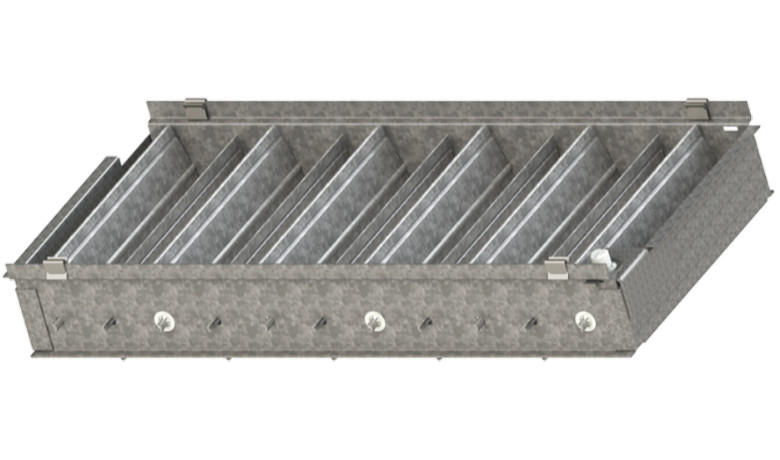

Optional opposed blade damper (SOBD – steel, AOBD – aluminum) is factory mounted and screwdriver operated from the face of the grille
