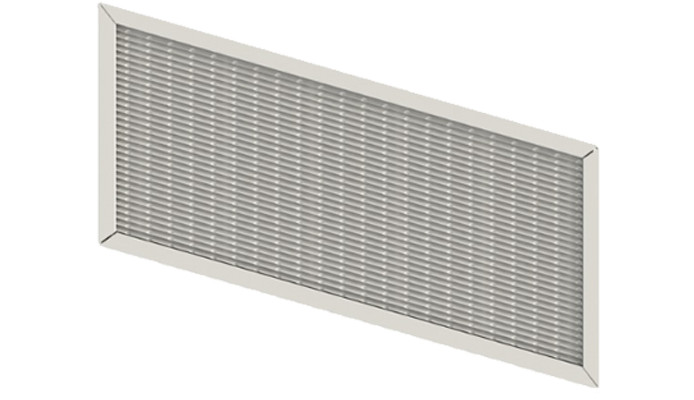

GAV V-core With U-frame

Grilles & Registers

The V-core fin design of the GAV V-core With U-frame model provides 81.5% free area that results in high capacity and low pressure loss. It has indented horizontal fins to match all A-core supply grilles and R-core return grilles for architectural continuity.

Consists of an aluminum channel frame with a 7/16" wide border on all sides with mitered corners
Steel construction

GAV V-core With U-frame

Product Application

Transfer grilles can be useful, in that they allow the exchange of air between two spaces. This results in a more efficient management of ventilation and energy. Our GAV grilles are equipped with a V-core that has a unique fin design for increased capacity and lowered pressure loss. Transfer grilles are often placed high up on walls or partitions so you would not have to worry about obstructing the vent. These grilles are ideal for use in large supply and janitorial closets, adjoining rooms in offices or hotels and more.

Features

Available product sizes range from 6"x6"to 48"x36", with 1" increments of width and height
Available finishes are WH - White, ML - Mill, AP - Aluminum Paint, OW - Off-White, FB - Flat Black and MP - Match Paint

The finish shall be an anodic acrylic paint, baked at 315°F for 30 minutes with a pencil hardness of HB to H
Designed to match the appearance of the A-core and R-core series supply and return grilles
